How to transfer this without printing?
Need measurements on this, can you help?
October 4, 2012
Offline
Hi Reodor,
I guess that this is your photo.
Having a closer look at your documents I noticed that the step penetration in the newels is set to 0 and therefore the step positions are not marked on the newels and the extra length are not marked on the steps.
Sorry for this it’s probably my mistake but full review of your project is not really included in the StairFile Lite service.
I’ve re-processed the workshop documents with the steps recessed 15mm into the newels .
All the best,
Ness

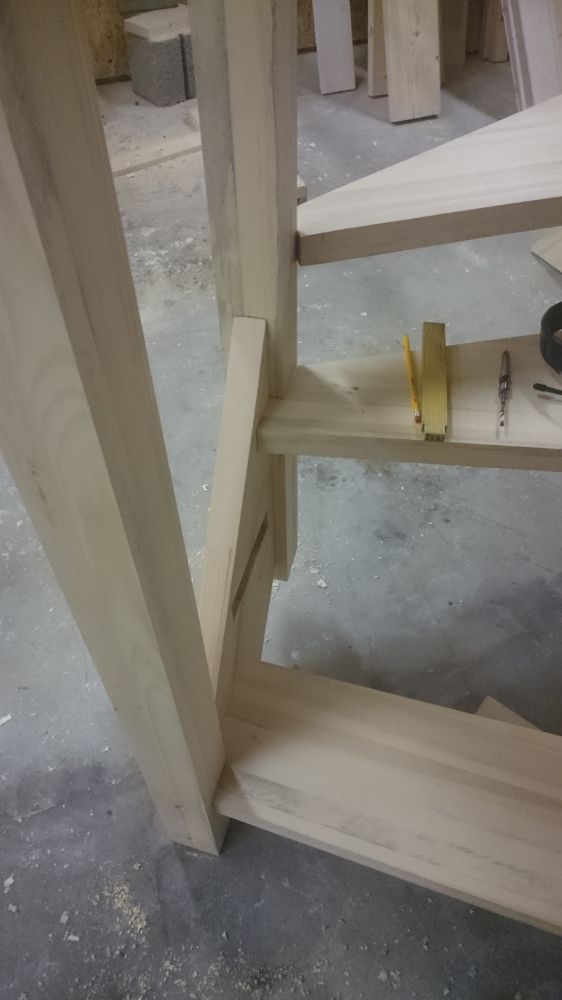

Thanks, but there are steps that I have problems with, will try to send you a picture by mail. for some strange reason I do not get split image in forum ..
October 4, 2012
Offline
Hi Reodor,
The DXF files of the posts are named Newel1f1.dxf, Newel2f2.dxf,…..etc.
f number is the face of the newel or post.
They are also of course marked out the general DXF drawings reodor01v02-2d.dxf.
In the workshop document they are marked out on pages 20 to 23.
In general it’s easy to mark them out using only the workshop documents.
All the best,
Ness
Hello I found no markup for the columns in the drawings.
Just for stringers.
October 4, 2012
Offline
Hi Reodor,
Happy to hear your project is moving forwards.
In the dxf plans you should have the drawing of each face of the newel posts (columns).
You can either print out a template and glue it to the face or add dimensions to the notches and mark them from the dimensions.
You can then use the router guide to rout them.
All the best,
Ness
Hi Ness
My project goes slowly forward, the next question is, how do I enter for notches / grooves for the steps in columns / pillars?
October 4, 2012
Offline
Hello Reodor,
I’m not sure what you mean by rounding the edge. Do you mean the shape of the step or the profile of the nosing?
Can you send me a drawing, sketch or photo?
All the best,
Ness
Hi
I am considering whether I should rounding step of the stairs into the stringers.But while I do not want the whole step rounded.
Do you have any tips for this?
October 4, 2012
Offline
Hello Reodor,
Your step housings around post will have to be slightly adjusted.

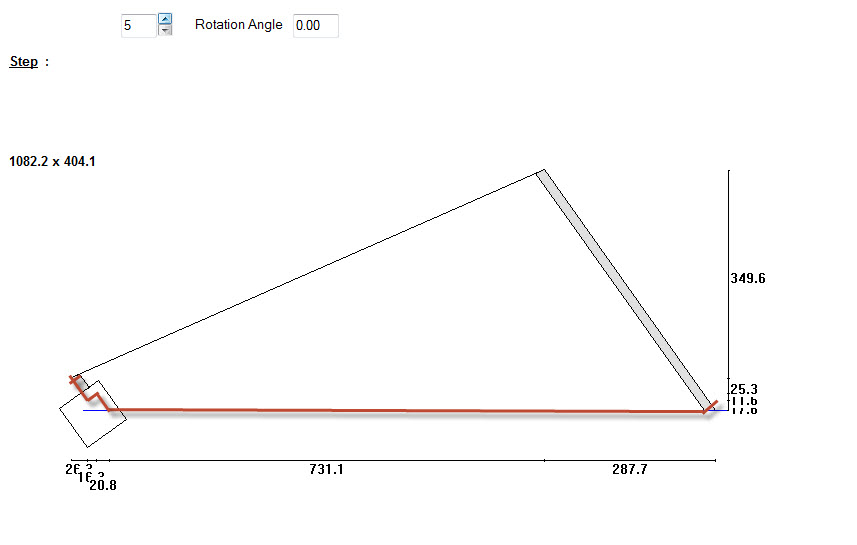

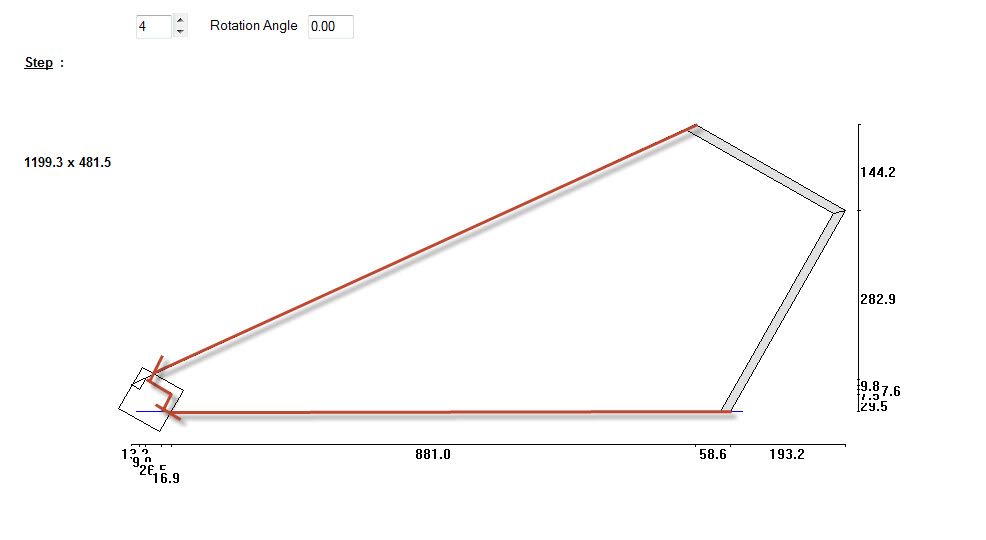

In the attached drawing I’ve drawn in red the adjustment you have to make around the newel post.
I noticed that the depth of step housing into the post may not have been added to your drawings. Please check this and add if necessary.
Cutting out the housing can be done using the routing jig that you’ll find the router jig explained in this ebook in the Wood Designer ebook library:
https://wooddesigner.org/membe…..airs/core/
I usually find belt sanders the best tool for sanding a stair.
For a really good finish I, rough sand with 80 grit belt and then sand fine with 120 grit orbital sander.
All the best,
Ness
