Hi Vidar,
Here are your files . I did not add right cut stringer 1 in the templates as it is a very small one that you can find perfectly doable with the workshop doc on page 23.
regards
Michel
Yes i confirm.
I will need the files for the templates 1:1 Width of the printer is 914 mm
vidar
August 7, 2014
Offline
Hi Vidar
So you confirm that I can send you the documentation for this stair?
Also please confirm if you also need the 1/1scale templates for printing out the parts on paper and the paper width of the used printer.
If not needed you will get all files in dxf format and the workshop documentations.
regards
Michel.
August 7, 2014
Offline
Hi Vidar,

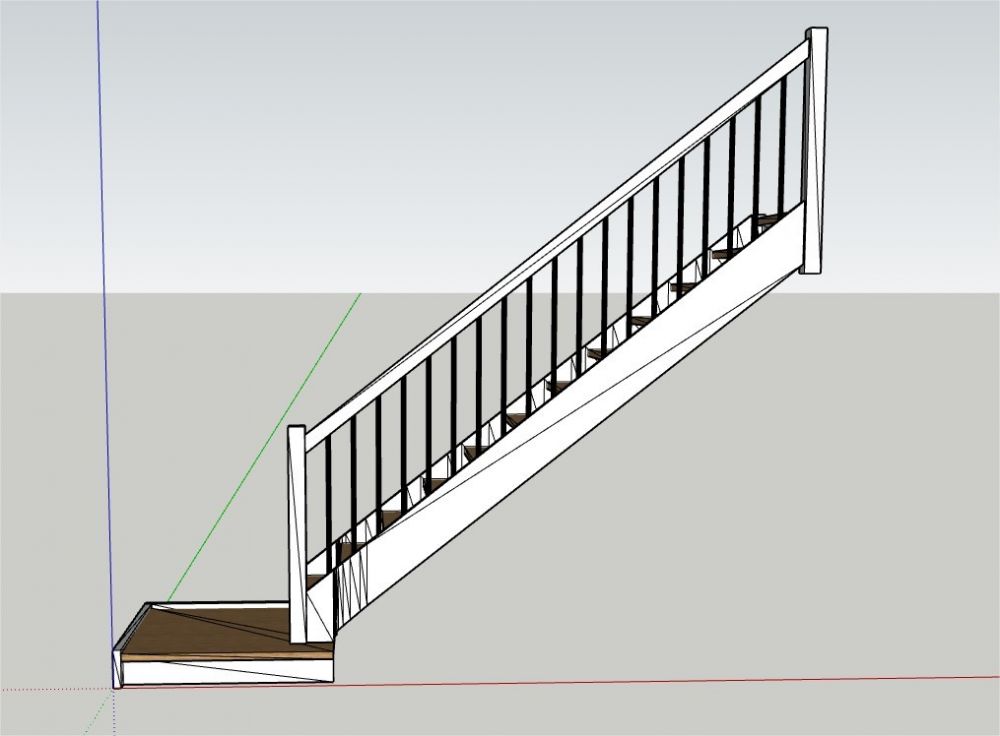

Here also the project with the stair on top of the landing. It has to be made in 2 sections and put visually together in SketchUp.
Michel
August 7, 2014
Offline
Hi Vidar
I closed the landing with risers but you cand add these elements also manually during the build. This is the way it can be done in SD7.
You cannot put the stair on top of the landing. To do so you have to make 2 projects. 1 landing and 1 stair and fit them together on the build.
I added risers on the landing and the last step to close the floor joint. Thickness I took is 11.5mm. If you have different sizes please correct them.
take a further look at all connections and penetration depths to see if it fits you to build
regards
Michel
Hi
my handrail is 42 x 80 and the newelpost are 80 x 80 mm .
I looking at the landing maybe is better to Close it, would become a Place to collect dust under the landing and difficult to clean.
would it be easier to put the stair on top of the landing.
Everything else looks good.
vidar
August 7, 2014
Offline
Hi Vidar,
Ok this was a miscommunication as I thought the measurements were contained within the wooden construction around the stairwell.
Here is another example with a landing as a start. Please check the stair and the components like the handrail. Does this fit your demand?
regards
Michel
Hi michel

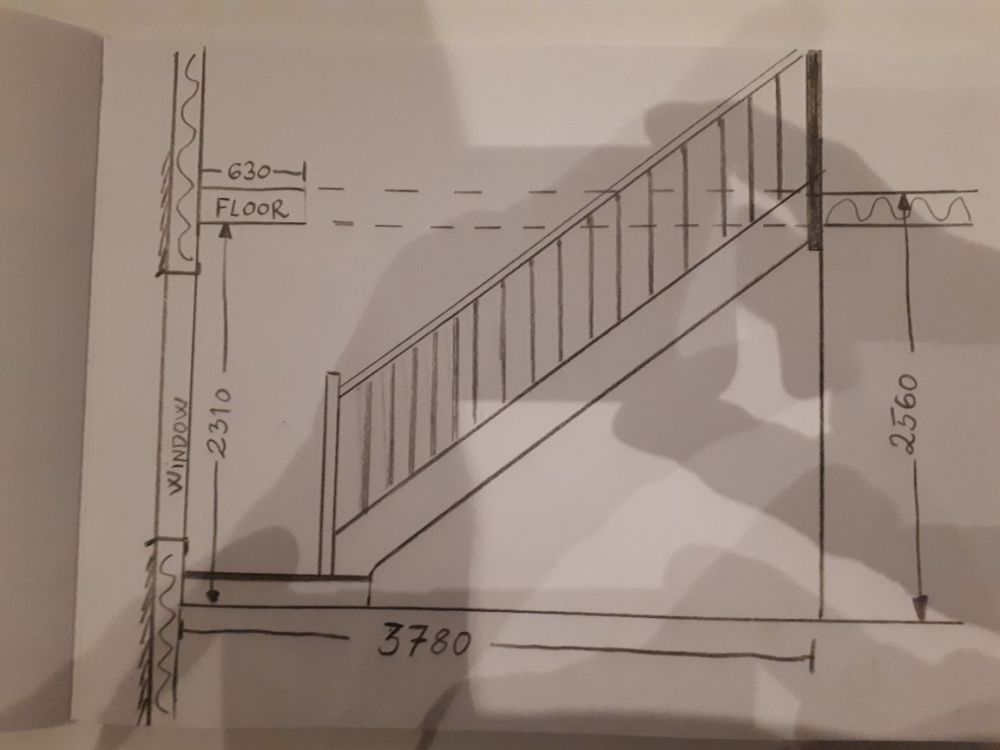

I would like the stair to og the full lenght or i would end up With a small open Space between the stairstringer and the wall, thats where i see the problem becouse the floor has and overhang of 630 mm. I made a simple drawing for illustration.
Would something like the drawing be a good solution ?
The With of the stairwell is 1030 mm and 42 mm is my finished thickness.
vidar
