Backward hinge
Avatar
Alex

Forum Posts: 1841
Subscriber Since:
January 20, 2017
sp_UserOfflineSmall Offline
6
February 15, 2024 - 3:20 pm
sp_Permalink sp_Print

Hi,

Thanks for the video!

Alex

Avatar
Paul Jones

Forum Posts: 5
Subscriber Since:
December 6, 2023
sp_UserOfflineSmall Offline
5
February 15, 2024 - 1:49 pm
sp_Permalink sp_Print

Hi Adam,

got this working lovely, thanks again.

https://www.instagram.com/reel…..BiNWFlZA==

Avatar
Alex

Forum Posts: 1841
Subscriber Since:
January 20, 2017
sp_UserOfflineSmall Offline
4
February 14, 2024 - 2:31 pm
sp_Permalink sp_Print

No problem!wink

Have you well install you Quick Design libraries?

with them, you’ll get a host of presets

and don’t forget to take a look here

>https://wooddesigner.org/help-…..ssentials/

especially

>https://wooddesigner.org/help-…..libraries/

and

>https://wooddesigner.org/help-…..g-methods/

Cheers, Alex

Avatar
Paul Jones

Forum Posts: 5
Subscriber Since:
December 6, 2023
sp_UserOfflineSmall Offline
3
February 14, 2024 - 2:13 pm
sp_Permalink sp_Print

Thanks Alex,

this is all new to me so I just might be keeping you busy!

Avatar
Alex

Forum Posts: 1841
Subscriber Since:
January 20, 2017
sp_UserOfflineSmall Offline
2
February 14, 2024 - 1:27 pm
sp_Permalink sp_Print

Hi,

This not correct!

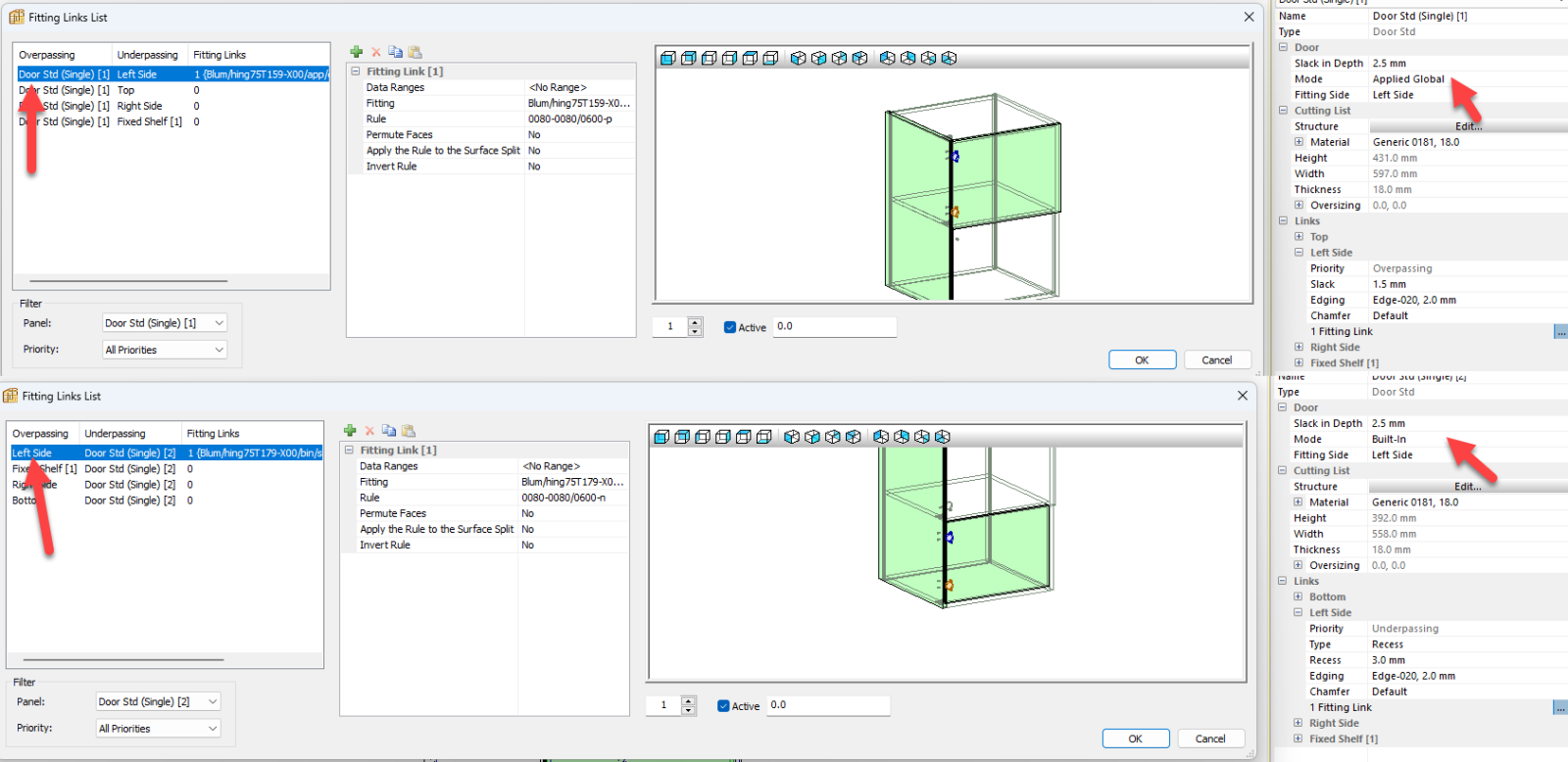

When your door is applied mode you should use APP hinges (like Blum/hing75T159-X00/app/ol 14-18) , and when your door is built-in select BIN hinges (Blum/hing75T179-X00/bin/sl 1.5-3)

beaucaus in case of Blut-in or Applied doors Overpassing switch between door and side

built-in-vs-app.pngImage Enlarger

Cheers, Alex

sp_PlupAttachments Attachments
Avatar
Paul Jones

Forum Posts: 5
Subscriber Since:
December 6, 2023
sp_UserOfflineSmall Offline
1
February 14, 2024 - 1:11 pm
sp_Permalink sp_Print

Hi,

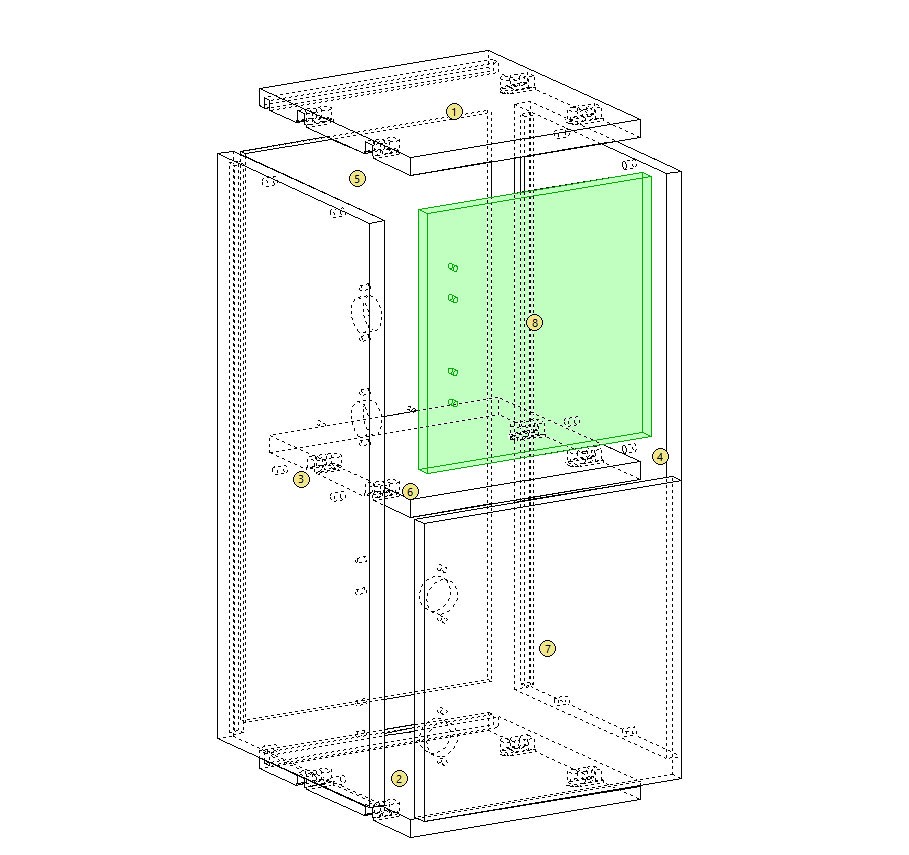

I am doing some testing with hinges and doors, top is built in and bottom is applied globally.

Both are working well but the built in has the hinge in the opposite way, is this correct?

Thanks, Paul.

2-DOOR-TEST.jpgImage Enlarger

sp_PlupAttachments Attachments
