August 7, 2014
Offline
Hi Jack

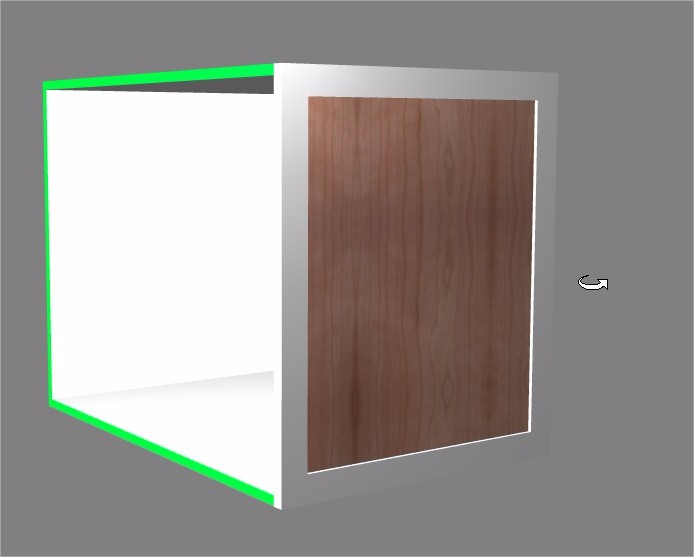

Here are some illustrations how to do it
October 4, 2012
Offline
Hi Jack,
Please have a look at the Quick Design Advanced video, “5. Using Quick Design Bars”, here:
https://wooddesigner.org/membe…..-advanced/
best regards,
Ness
Michel:
I see option to select “structure/edit” or “assembly option”
August 7, 2014
Offline
Hi Jack,

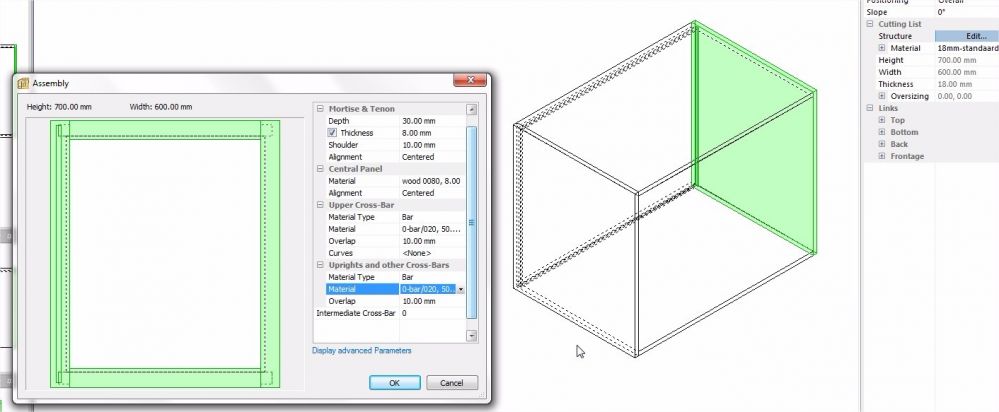

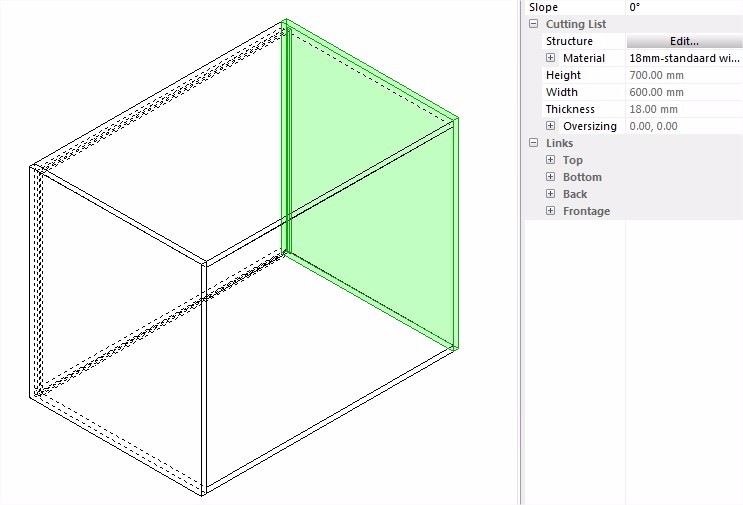

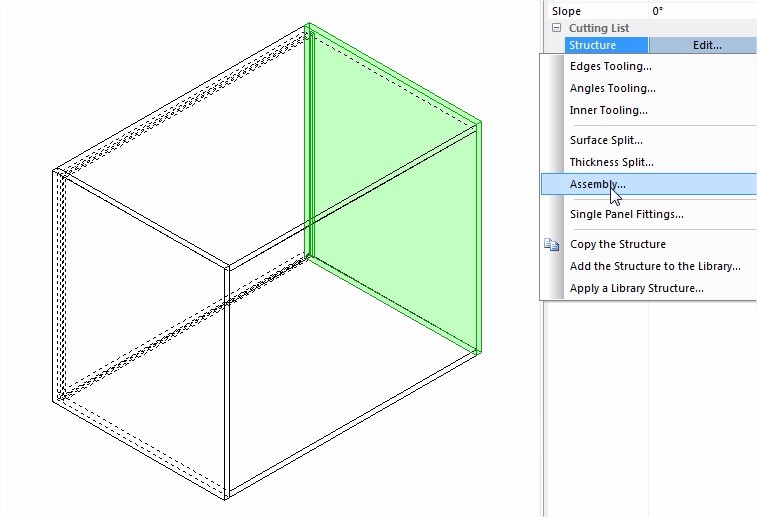

to do this select the side panel and then go to the properties on the right side of the screen and select structure/edit . Then choose assembly. Now you get the possibility to define the cross-bars and the central panel. Repeat this for the other side
regards
Michel
Hi Ness:
starting new design of pantry cabinet and hope beginning sketch is attached. I have been trying for 3 days to attach a picture of the new cabinet and the finished cabinet to no avail, I keep getting HTTP ERROR messages “Upload URL might be wrong or doesn’t exist”, file size when it is only 142kb! I am at a Lose.
I want to build the cabinet with 4 by 2″ square corner posts and fill the sides with insert panels…….how do I ACCOMPLISH this?
Regards Jack
