August 7, 2014
Hi Scott,

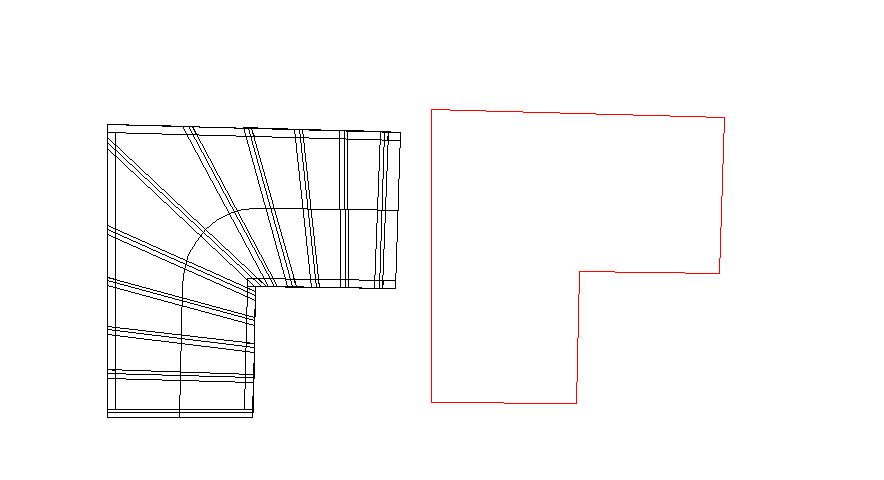

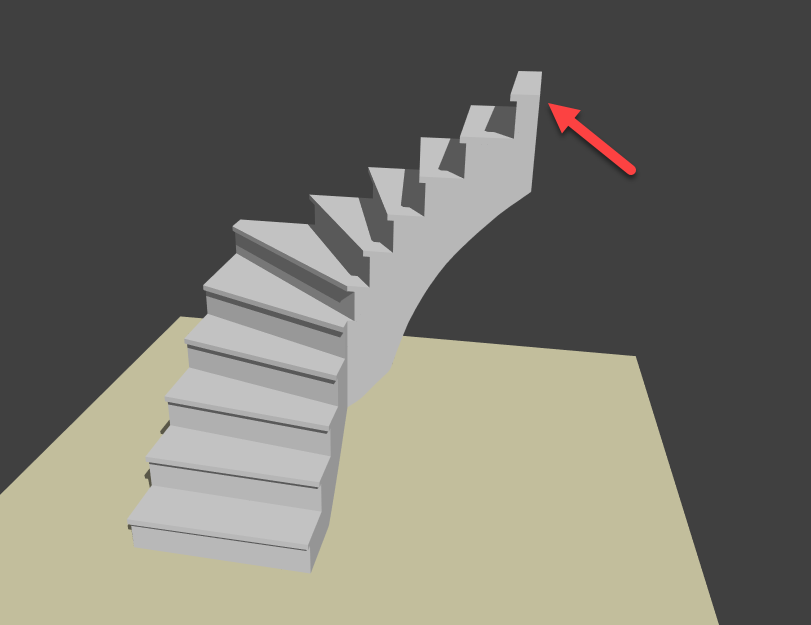

this would become a tricky built to support the inner steps in the turn and does not give you much comfort maybe even less with all sharp winded steps on the inside.
The door opens towards the stairs it should not be a problem. You can still build a stair fence on the exit.

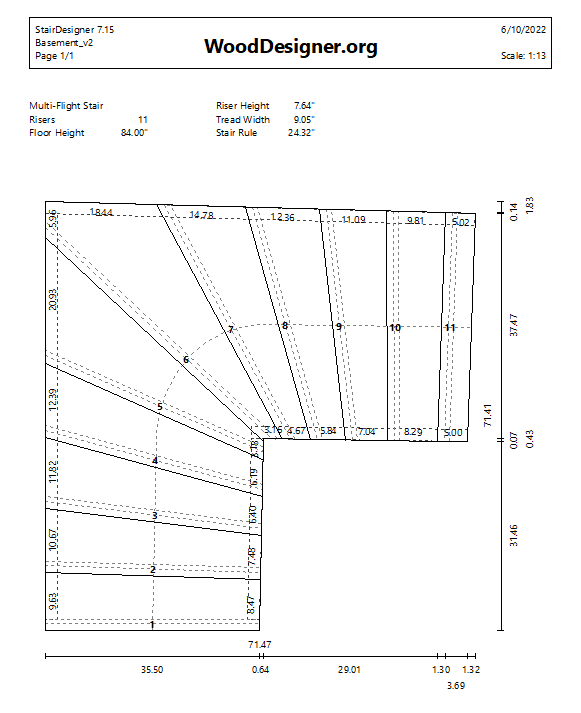

If ok I can provide you with the stairfile for the built
regards
Michel
I think if we just get close, I can adjust each step with the templates. Cut paper or cardboard and make sure they fit. I showed one problem that the measurements and angles cannot account for. There are others. You have already put in more time than this project is probably worth. It is very much appreciated! But we’re never going to get it perfect on paper. That’s where my skills will have to come in to adjust and custom fit everything. As long as I have the supports right, the rest will fall into place.
August 7, 2014
Hi Scott,
ok, so you have enough room on the front of the stair to make it straight. So lengths A and E are variable. My question is about the rest of the geometry I send you as there are no straight angles, especially on the back left showing 88.42°. The left wall runs outwards from the start of the stair to the corner.
It is a specific shape and if you make a stair to that shape you better be correct. I can just add some length to the right side of the stair start to make it straight but I need you to confirm if the rest of the drawing reflects the reality of the walls. If you can measure these angles please do so.
regards
Michel

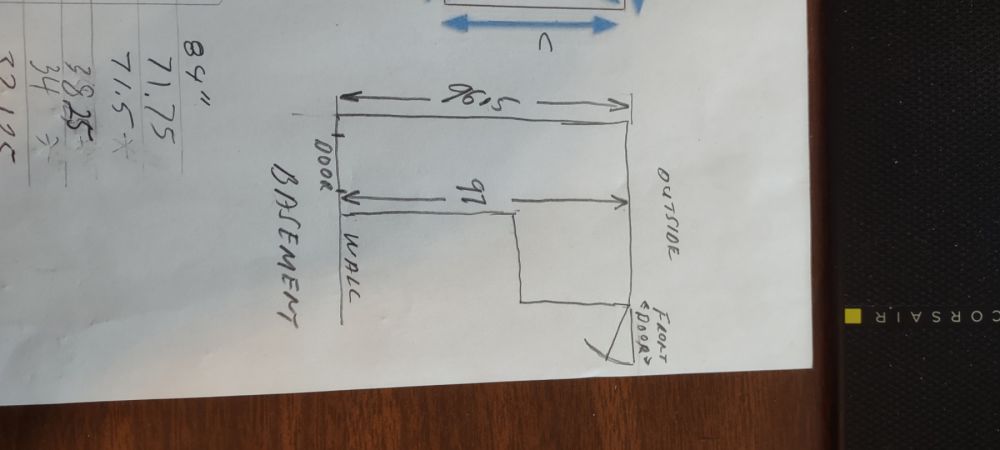

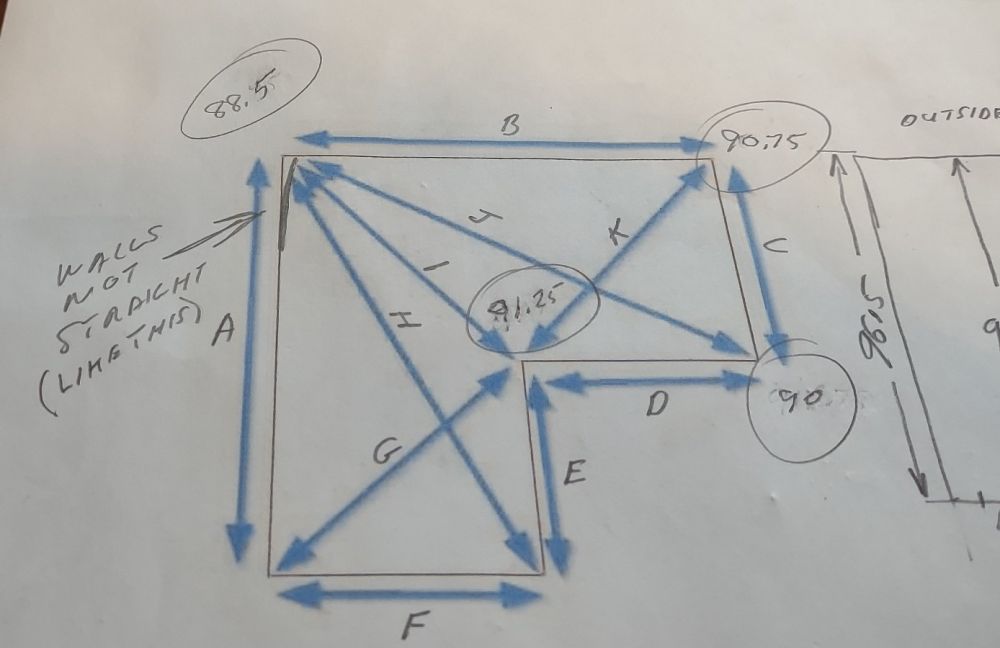

I would say that the F beginning could easily be made parallel with the basement door wall. A, B, C, D and E are concrete block walls and are not changeable, but F is just the beginning of the stair and on a landing that leaves about two feet to the basement door. So it’s totally flexible. I know that makes the landing a bit small, but couldn’t see any other way to do it. We already cut and dug out the entire D, C, B area to get enough room. The old stairs were a straight run from the A, F, E area, No turn. The door at the basement wall was short and you had three more steps inside the basement. Head banger. Dumb. If there’s a better way, I’m open to anything short of an elevator.
August 7, 2014
Hi Scott,

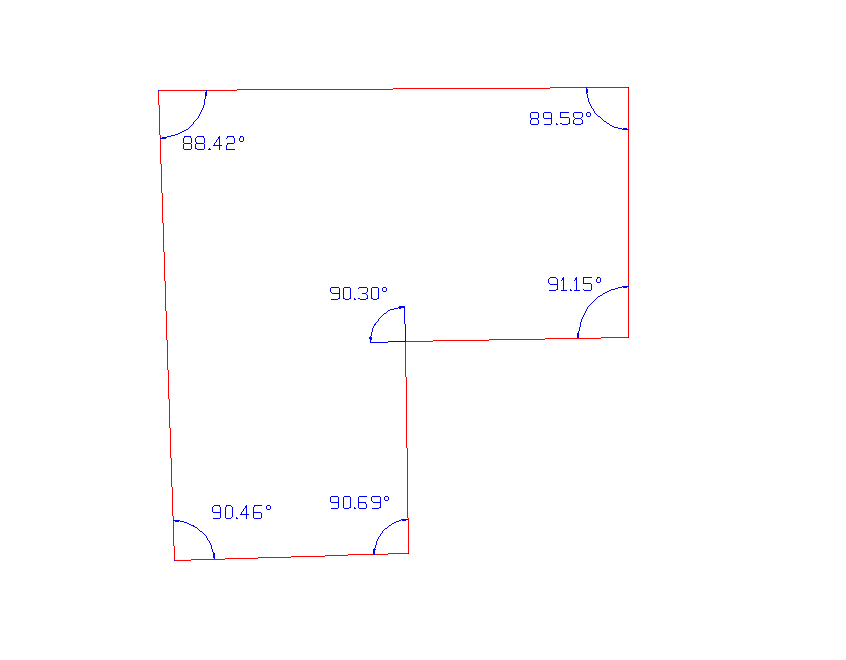

Based on the measurements you gave me it returned this geometry. Take a look if it fits with the reality and I also set the angle values on it
As you can see the front of the stair does not start in a straight line. The left side is angled inwards. The arrival is straight. Let me know if this is correct as it depends on where you start from when generating such plans.
regards
Michel
