Things are not square
Page: 123Jump to page
Avatar
Guest
3
June 6, 2022 - 2:34 am
sp_Permalink sp_Print

I hope this is what you need.  If not, let me know.

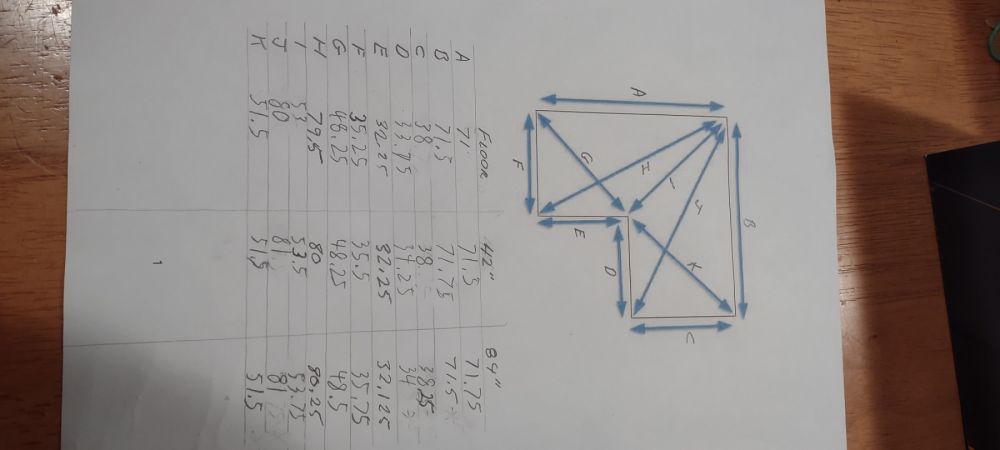

Here is the list of dimensions.  F is the basement and C is the top.IMG_20220605_2018327401.jpgImage Enlarger

I did three levels of measurements because it is a very old house and things are not right.  If you only use the middle one, I can make it work anyway, because I will not be using CAD.  I’ll take the templates and cut to fit.

sp_PlupAttachments Attachments
Avatar
Michel

Forum Posts: 1013
Subscriber Since:
August 7, 2014
sp_UserOfflineSmall Offline
2
May 29, 2022 - 8:33 am
sp_Permalink sp_Print

Hi Scott,

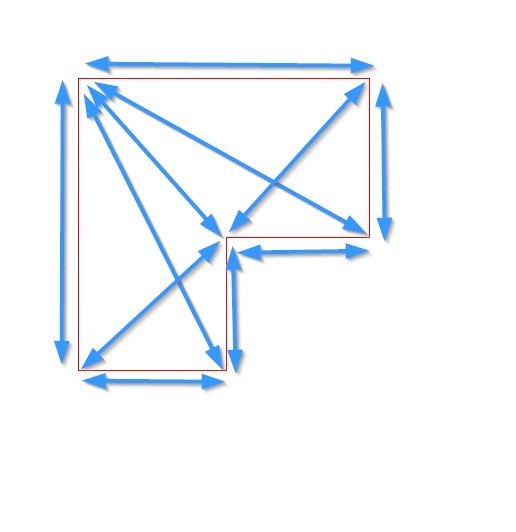

Yes, you can add an angle to a flight or even more precise, draw the situation in cad after measuring properly to get the angles. SD can be used with x-y coordinates and so follow practically any kind of irregular shape.

If you are not able to do it provide me with a plan with all the needed measurements so that I can draw it in cad. No angle values, only measurements.



measure.jpgImage Enlarger



regards

Michel

sp_PlupAttachments Attachments
Avatar
Guest
1
May 26, 2022 - 10:55 pm
sp_Permalink sp_Print

Here is my plan, but am wondering if there are options for imperfect dimensions.The walls are not square with each other.
