Following last week’s article on curved strings and handrail here’s a short example of a wreathed string built with laminates, that I’m actually building in the workshop. This stair is being built for an old farm house in the French Alpes in the Vercours region, not far from where I live.
The particularity of this project is that the stair is following an existing stair. The original stair has probably been built by a village carpenter in the early 1900’s .
The original stair goes from the ground floor to the first floor and is made of a mix of woods ash, beech and some cherry, in facgt what ever the carpenter had at hand on the moment. All this together with rudimentary planning and a very rustique construction gives this stair a sort of charming very French country style.
My objective is to build a continuation of the stair, over the first stair, that climbs to the second floor while keeping the same style and movement.
Here is an over view of the different stages of building the curved parts for this stair.

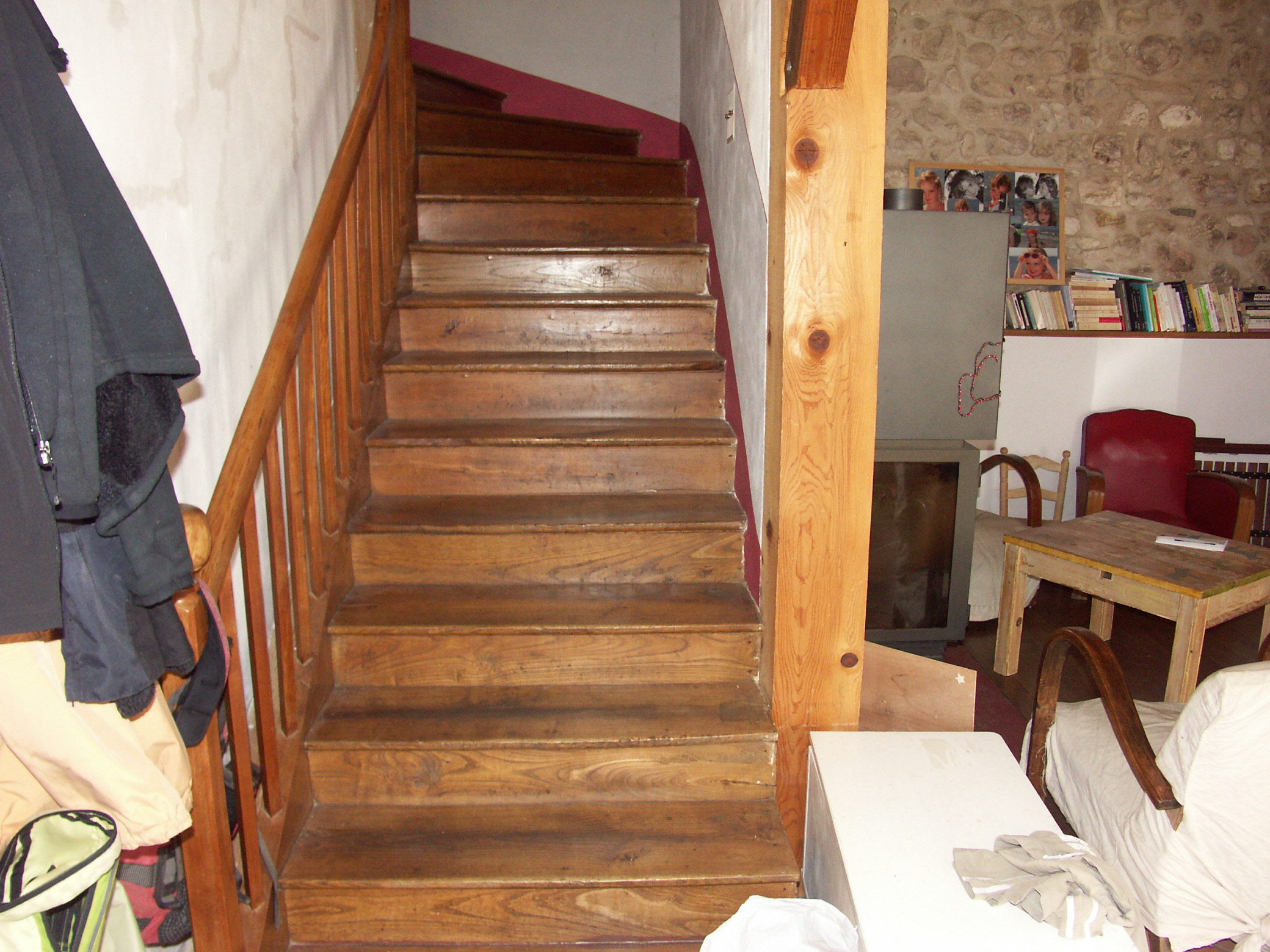

Here’s a photo of the existing stair:
![Old Stair in a French Farm House Old Stair in a French Farm House](jpg/pict00031.jpg)

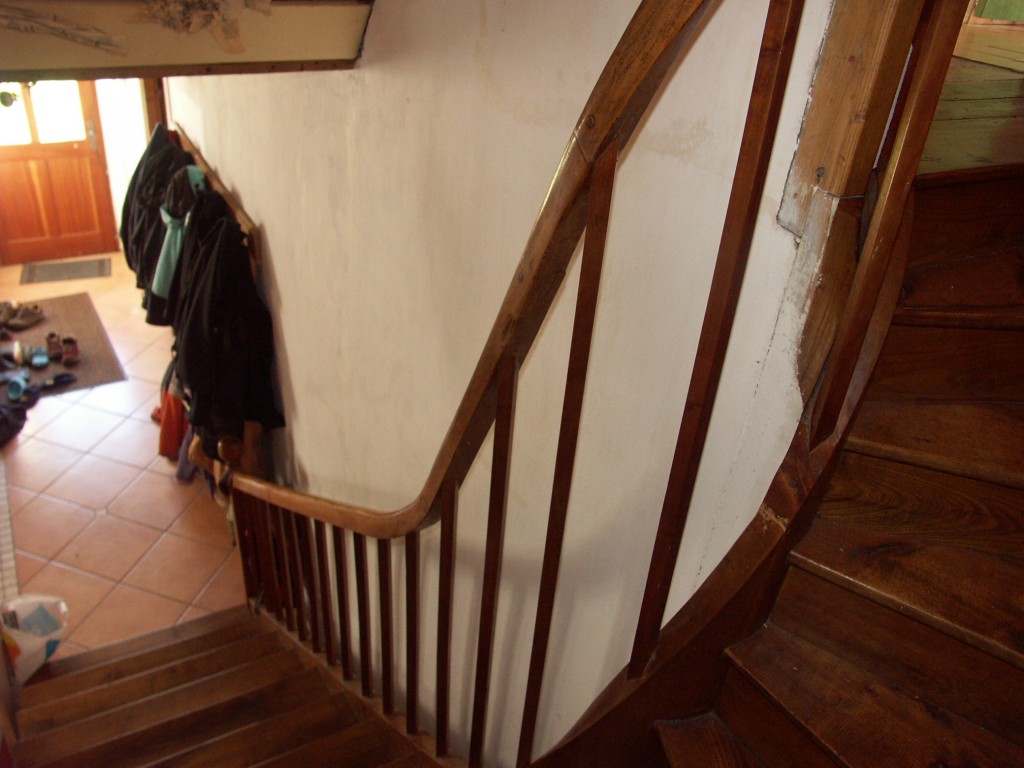

![Farm house stair from the turning](jpg/pict00041-1024x768.jpg)
After taking on site measurements the first job is to make a detailed drawing of the stair well in Progecad.
This study will give me the exact dimensions to input into StairDesigner to calculate the stair.
To build the curved string and handrail I use the StairDesigner drawings that I edit in Progecad to design a form to bend the laminates.

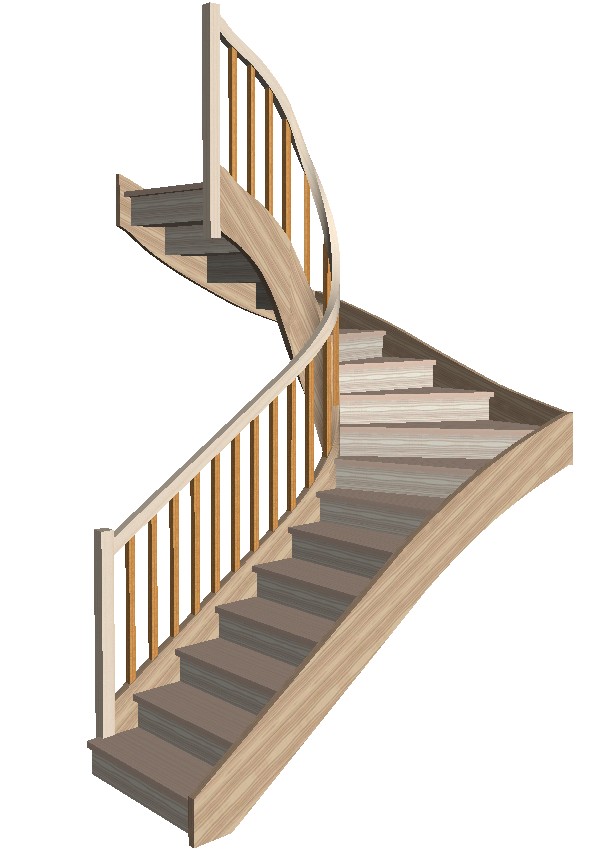

Here’s the project built by StairDesigner:
![3D Stair Designed with StairDesigner](jpg/3d-2.jpg)
To build the stringer and hand rail I have first to build the form in the workshop.
Once the drawings from Progecad are ready this is really very quick and easy. As I always have vertical battens drilled up and ready I only have to cut out the appropriate curved shapes using the full size templates printed with Progecad.

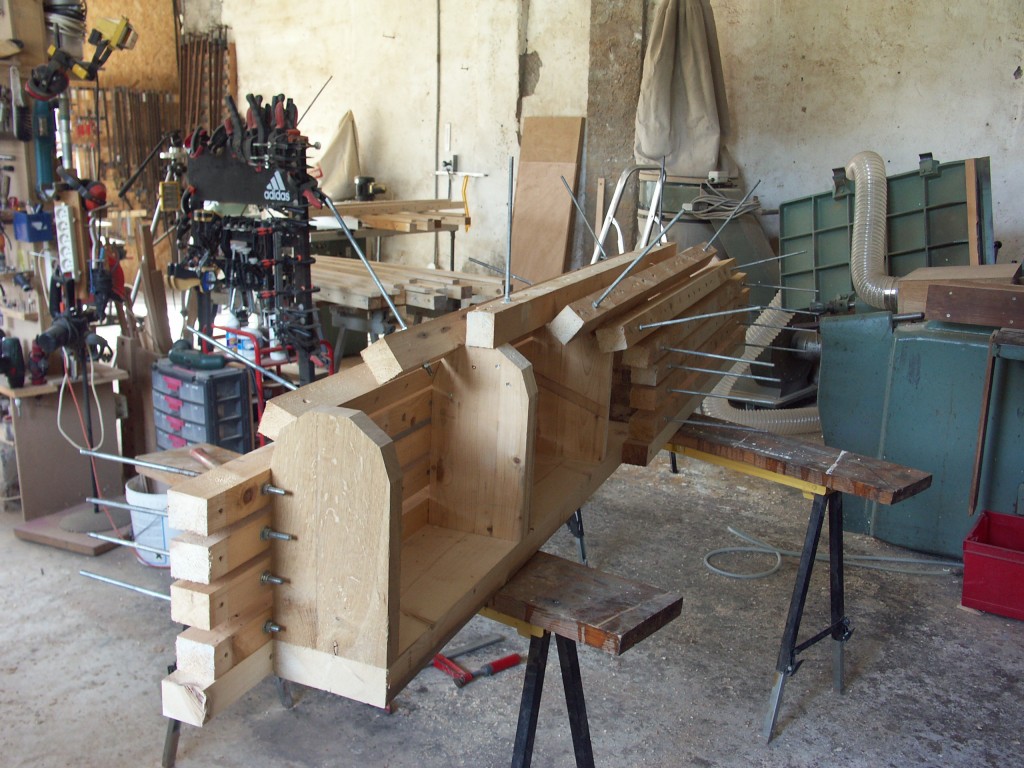

Here’s the form built in the workshop. Note how the vertical 60x60mm beams are drilled to hold threaded rods that will be used to pull the laminates into shape.
![Form for gluing up laminates](jpg/pict0070-1024x768.jpg)

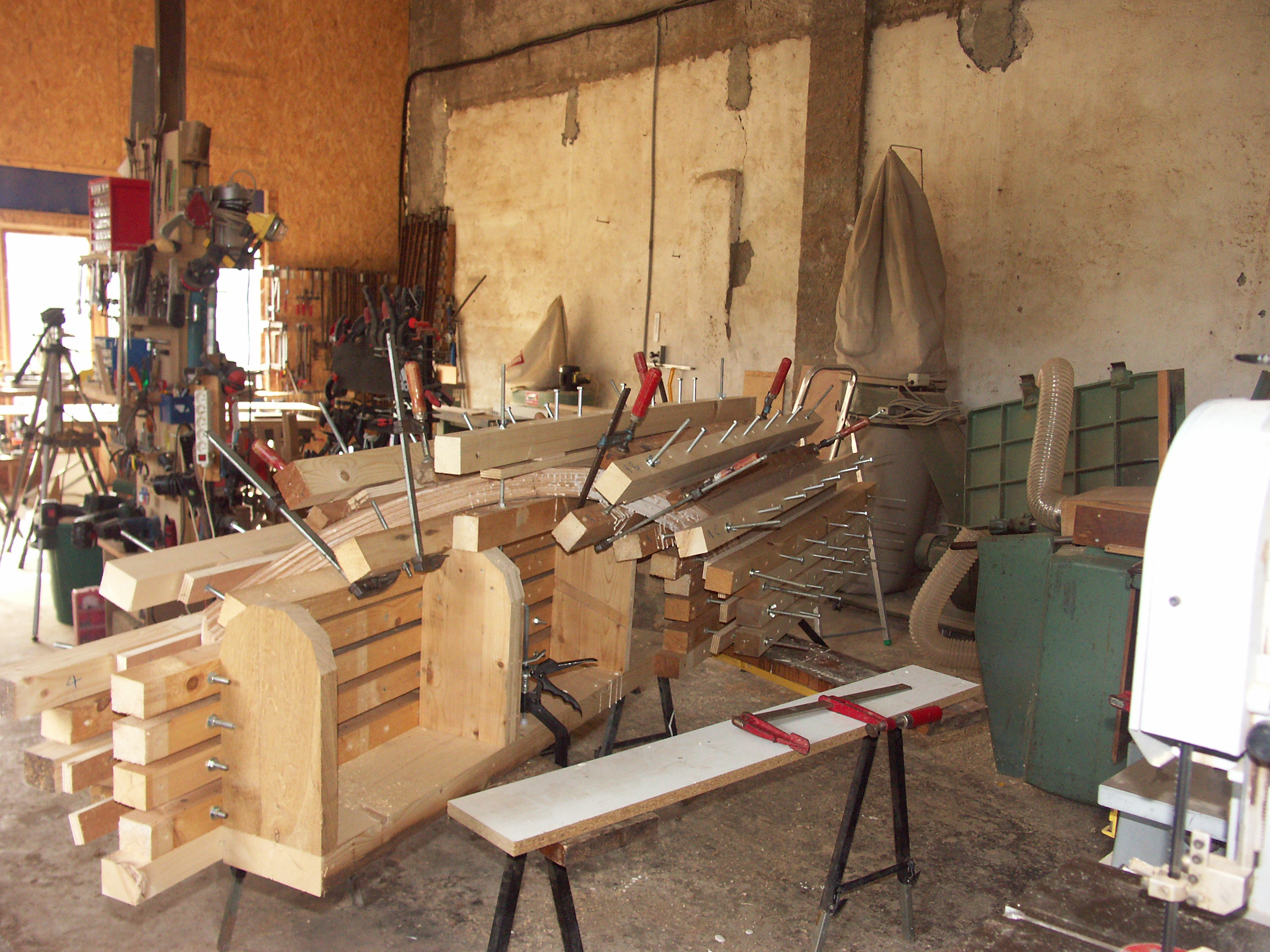

Here’s a photo of the form with the laminates clamped up and pulled into shape.
The battens that are pulled down with the threaded rods are themselves drilled for intermediate bolts that enable me to adjust and distribute the pressure along the whole length of the batten.
![Form to glue up laminates Form to glue up laminates](jpg/pict0007-2.jpg)

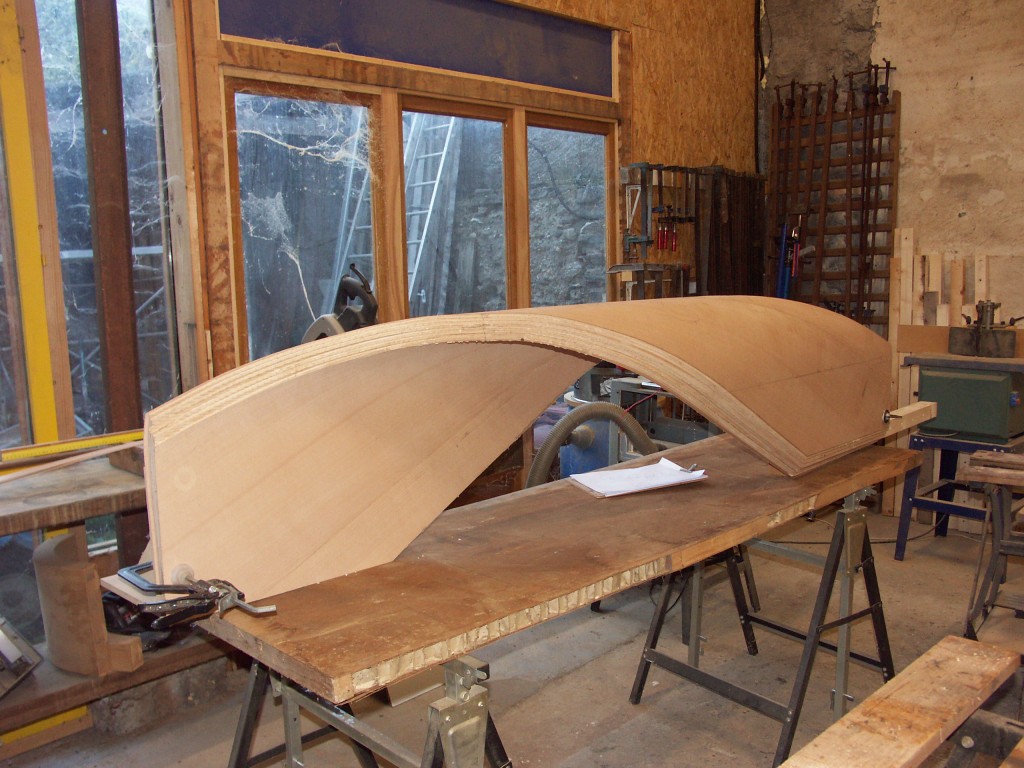

An here’s the stringer and hand rail ready for marking up :
![Curved string ready to be marked up](jpg/pict0024-1024x768.jpg)

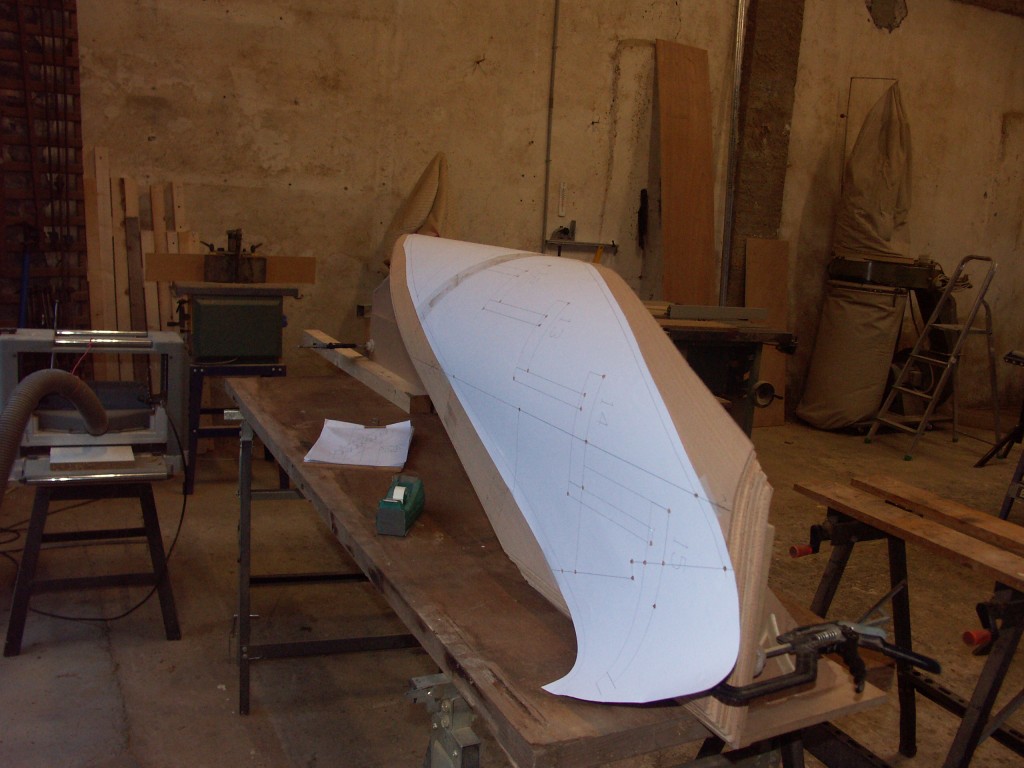

The stringer is marked up using the full size templates printed by StairDesigner:
I find the best way to do this is to punch small holes in the template at the intersection of lines. I then hold the template on the stringer with tape and mark the position of the intersections through the holes.
This is usually easier that trying to glue the template directly onto the stringer and machining through the template.
![Stringer being marked up with Stairdesigner template](jpg/pict00261-1024x768.jpg)

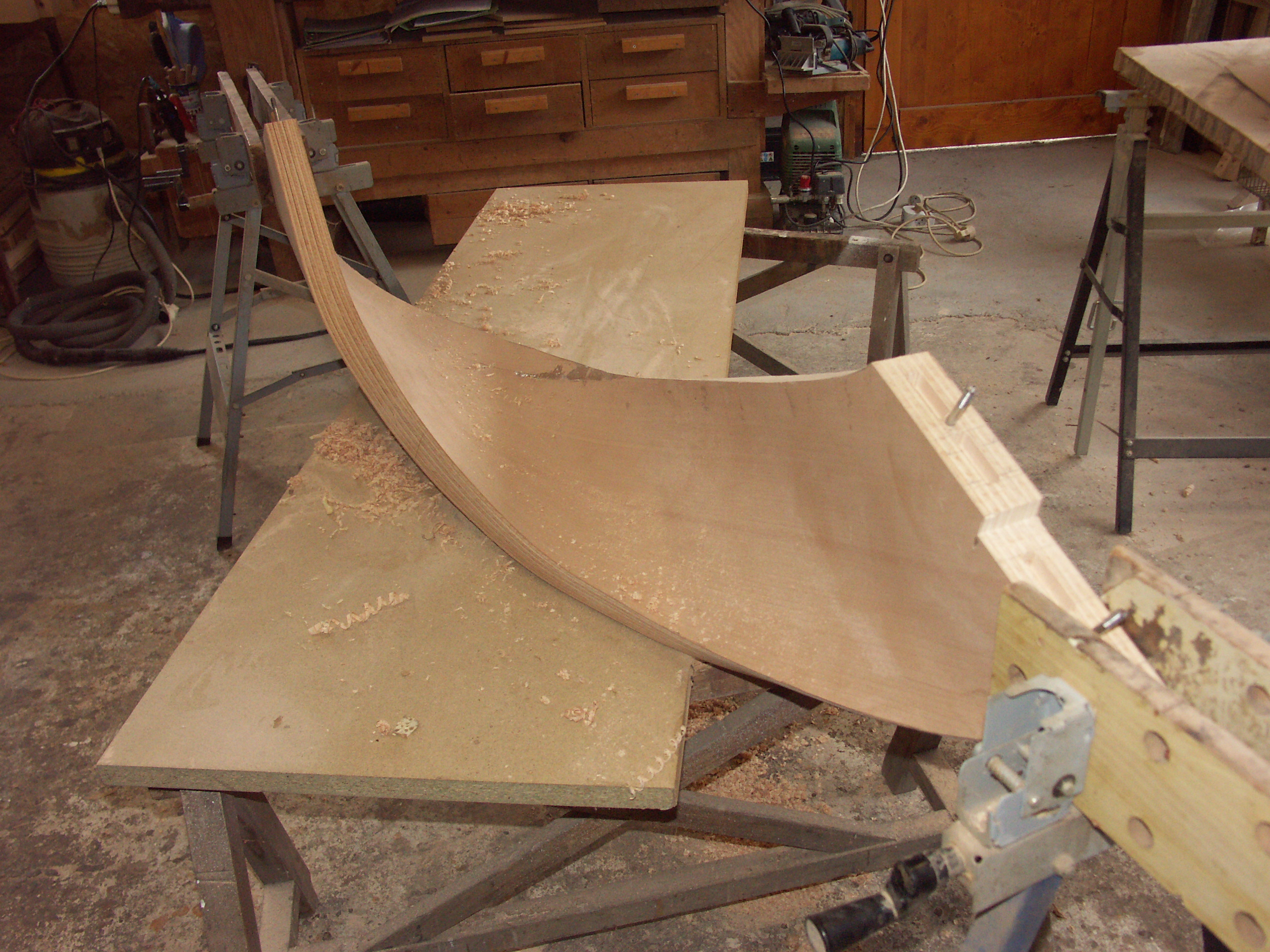

Once marked up the joints between the straight and curved sections of stringer are machined up with jigs and a portable router.
![Curved string with joints Curved string with joints](jpg/pict0006.jpg)

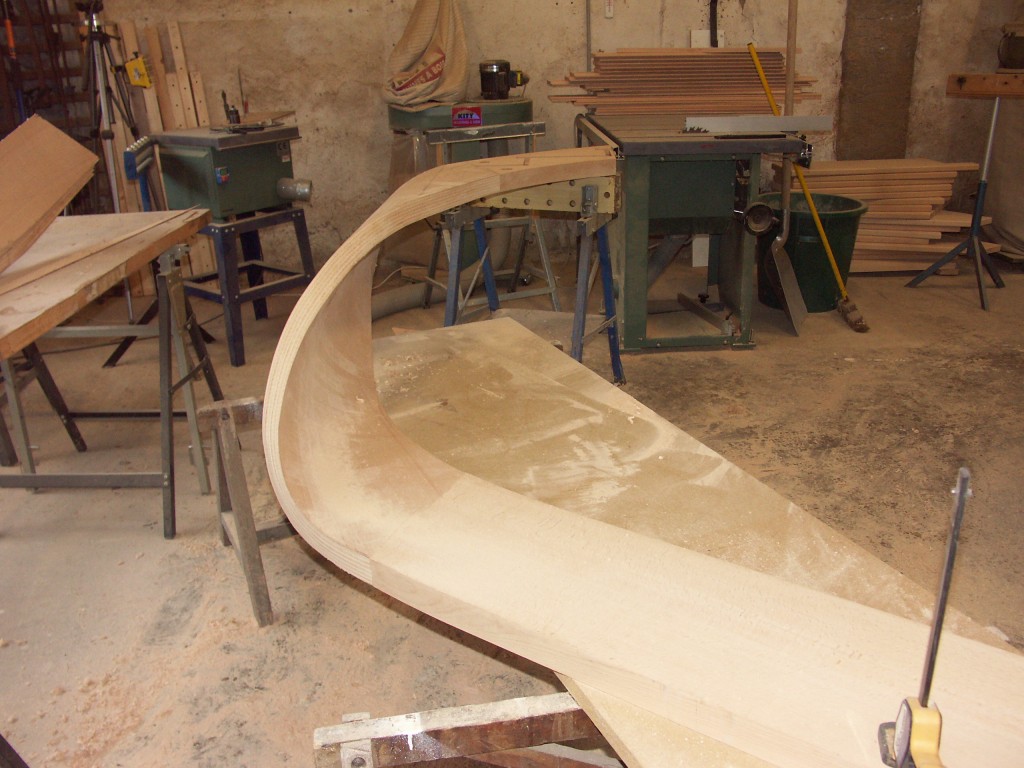

Le sections of the stringer are then assembled and the edge veneers glued up:
![String assembled and edges cut to receive veneers](jpg/pict0002-1024x768.jpg)

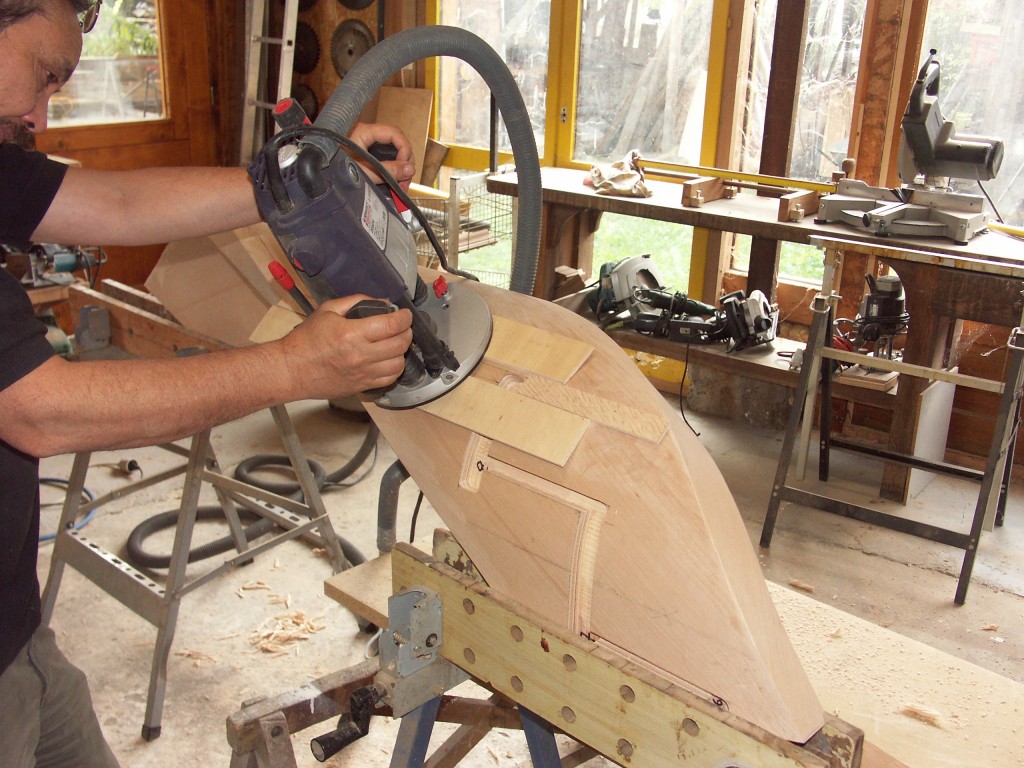

In this photo you can see me cutting the step and riser housings with a portable router.
I use bands of flexy ply pinned onto the curve as a guide for the router.
![Recessing a curved stringer](jpg/pict0016-1024x768.jpg)

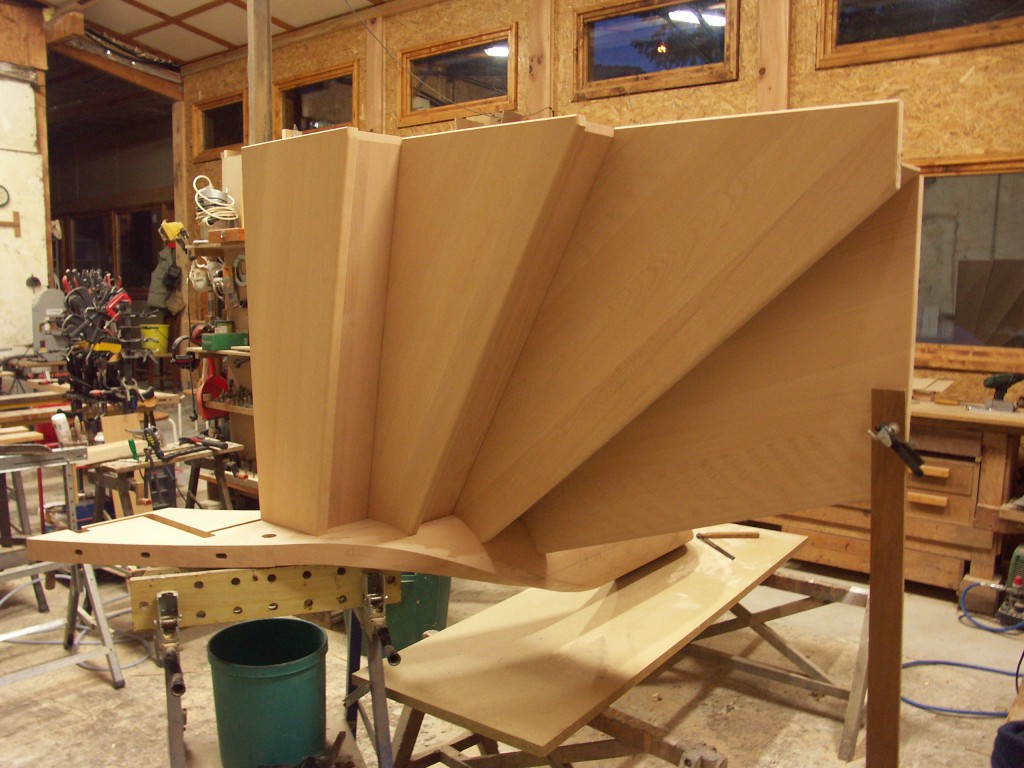

Once the housings are cut each step and riser is adjusted into their recesses.
![Adjusting steps and risers](jpg/pict0004-1024x768.jpg)

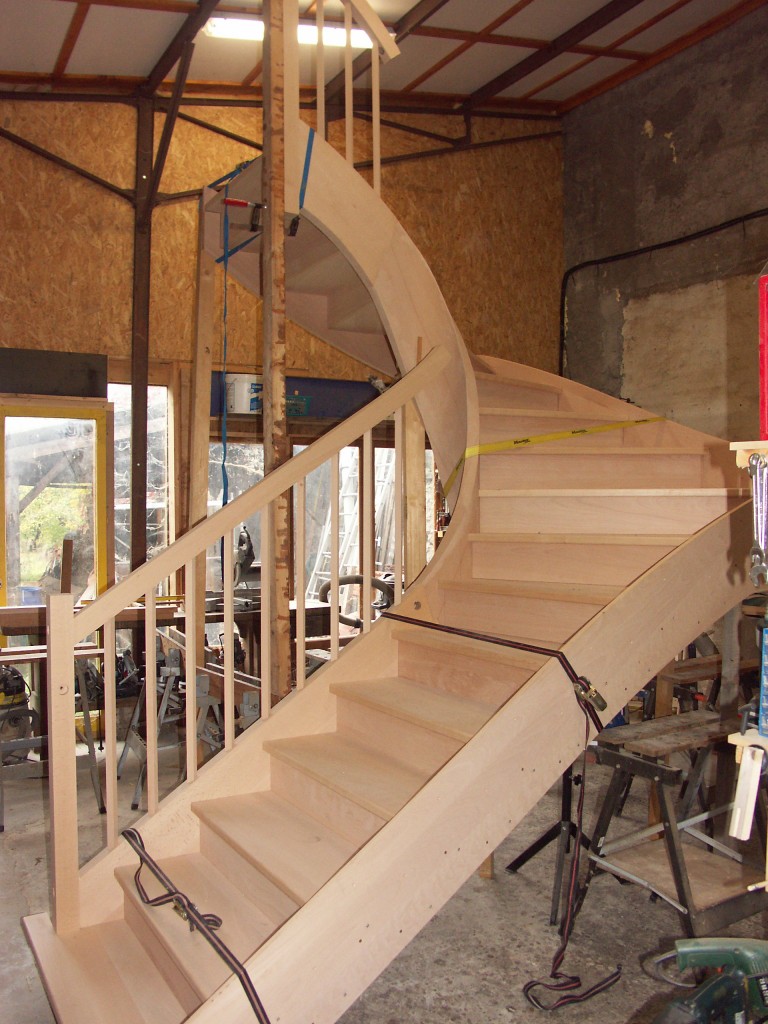

Here are the stairs assembled in the workshop.
![Stairs assembled in the workshop](jpg/pict00032-768x1024.jpg)
As you can see the stair looks very much like the 3D model made with StairDesigner.
The next job will be to build the hand rail from the laminated blank and assemble it onto the stair.
This stair has a laminated string that has roughly the same shape as the existing stair. The stair turns very tightly around a half turn of winders that make the string and handrail twist up very fast. As well as this the spindles are not parallel to the string but angled at 45°.
This is going to make it difficult to mark up the joints between the spindles and the stinger and hand rail.
We’ll see how I cope with this problem in my next article.
Happy wood working
Ness
