Hi Thanks, is there already a fitting link for blum tandem runners already created?
Regards
Elliot
January 20, 2017
Offline
hello,
sorry my english so bad if draw is Built-in use fittings xxx/BIN

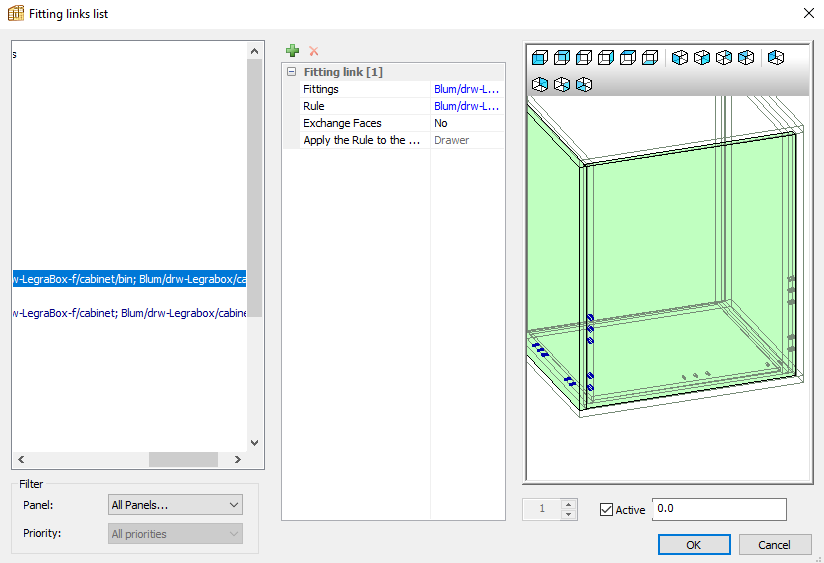

i post you exemple with good fixation link on left and bad on right
Don t forget to see Ness Video on https://wooddesigner.org/suppo…..-advanced/
and read ,Polyboard Library Manual.pdf in QuickDesign Guide folder on desktop since page 25 for more information 😉
All the best , Alex
Hi I now realise its not linking to the correct fitting link – is there one already created for built in drawer as im trying to adapt the applied link but its not working – well im not doing it correctly!
Elliot

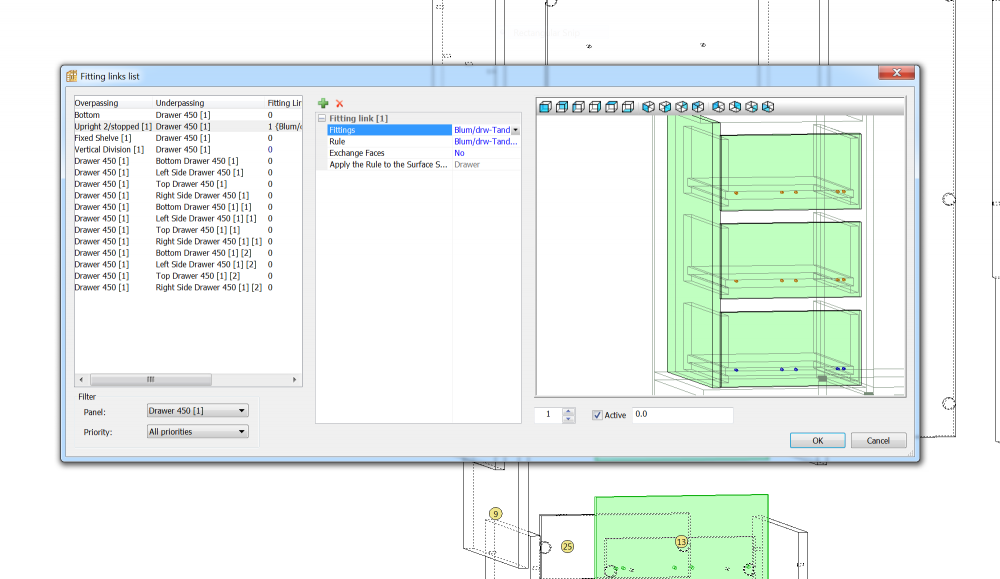

Hi – thanks i get the spacing of the drawers now but having trouble with adding the drawer drillings – when i add them they appear on the drawer frontage?
Thanks very much.
Elliot
Thanks for this Ness and Alexandre – ill have a little play around with this and let you know.
Thanks again.
Elliot
October 4, 2012
Offline
Hi Elliot and Alex,

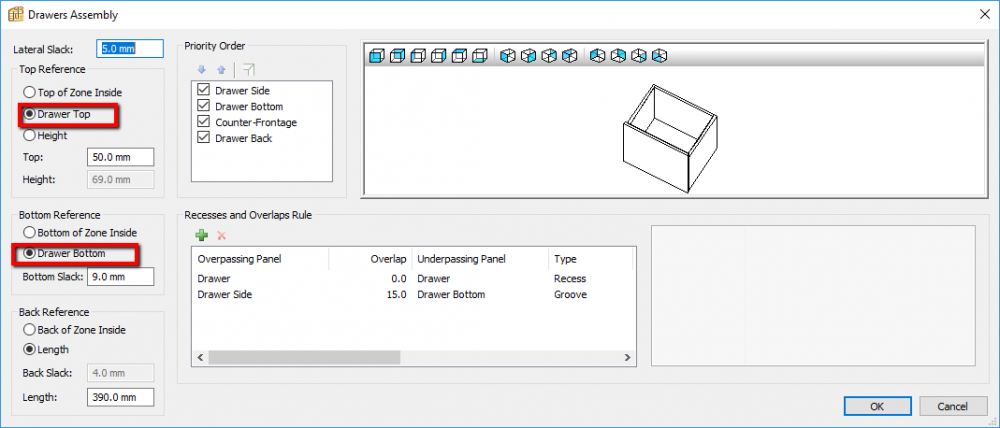

The drawer inners are different because they are calculated from the zone. To make the drawer inners the same use the calculation from the drawer top and bottom:
The drilling for runners are not showing because the drawers facades are not over passing the sides and uprights.

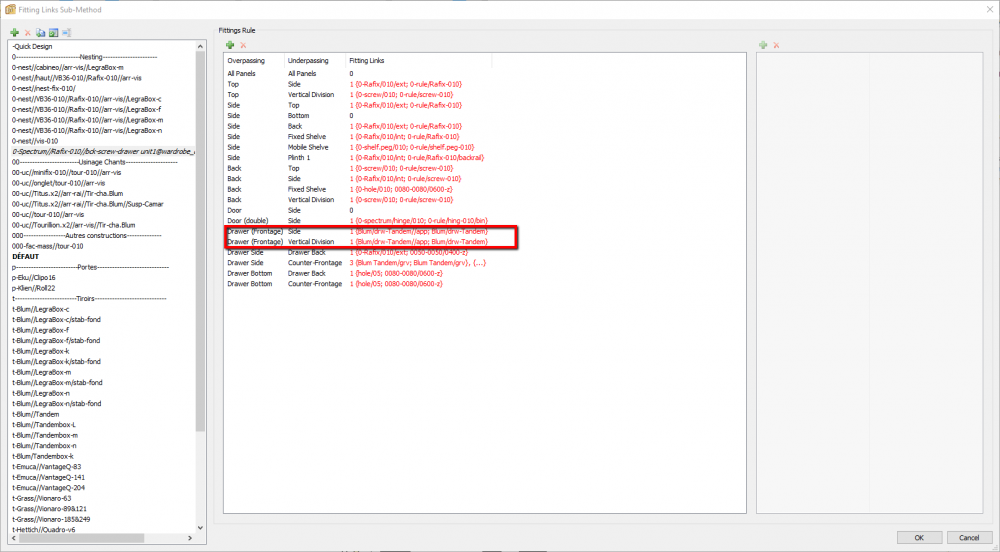

The fittings links sub-method is only adding drillings when the Drawer Frontage is Overpassing:

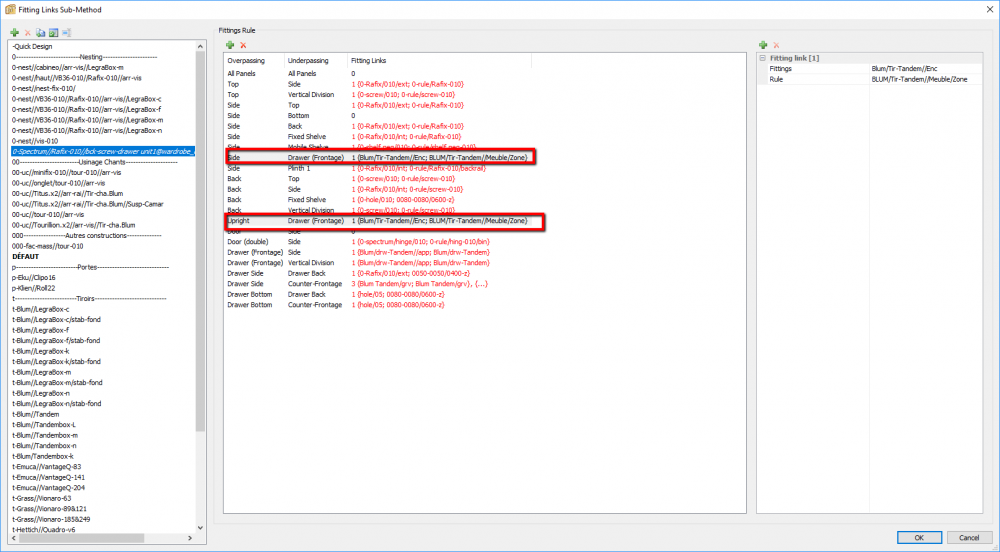

To have drilling when the drawer facades are underpassing the uprights you need to add a fittings rule and that uses the appropriate hardware:
You can of course also add this hardware manually panel by panel.
best regards,
Ness
January 20, 2017
Offline
Hello,
I’m not sure I understand everything.
The size of drawers is calculate with space available, if you want 3 identical drawers with the same 3 faces I advise you to add 2 additional shelves nil at the top and bottom, with an identical space with your spacing between drawers (30mm) at that
I think that 30 mm and too small to put and regulate the hinges without put separator linked with face -60mm to!
Or you can use hinges like
Blum 155°
Attach your furniture edit
All the best
Alexandre
Hi im trying to create internal drawers within a wardrobe with a divider and a spacer panel to allow for hinges
I seem to have done this but the drawer boxes are coming out different sizes with the fronts being the same?
Also the drilling for the runners arent showing how do i make this happen automatically?
Attached file.
Kind Regards
Elliot
