Panel for plinth
Avatar
Michel

Forum Posts: 1013
Subscriber Since:
August 7, 2014
sp_UserOfflineSmall Offline
2
May 8, 2018 - 7:03 pm
sp_Permalink sp_Print

Hi Hung,

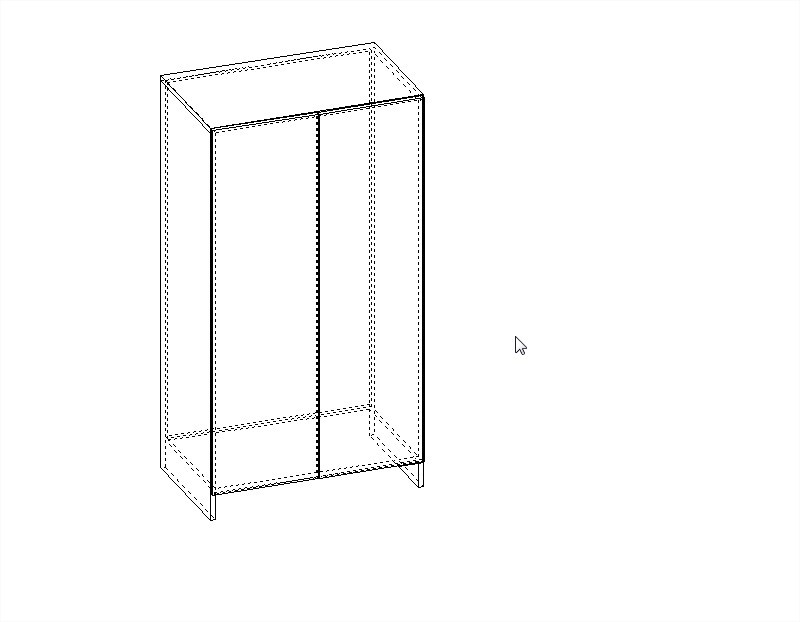

I see you have overpassing sides in your example so I use a similar one

hung.jpgImage Enlarger

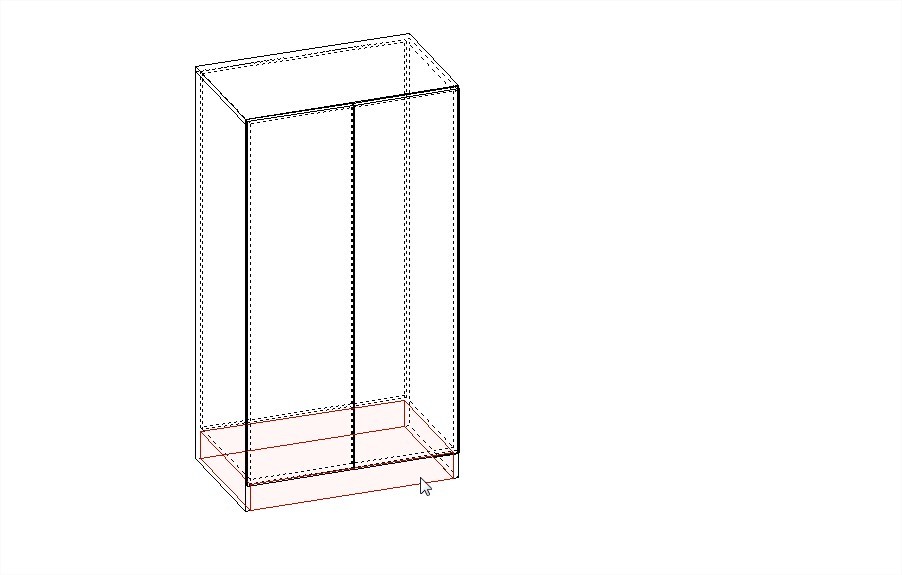

you need to point your cursor in the lower volume were you need the plinth added. It will light up in red

hung1.jpgImage Enlarger

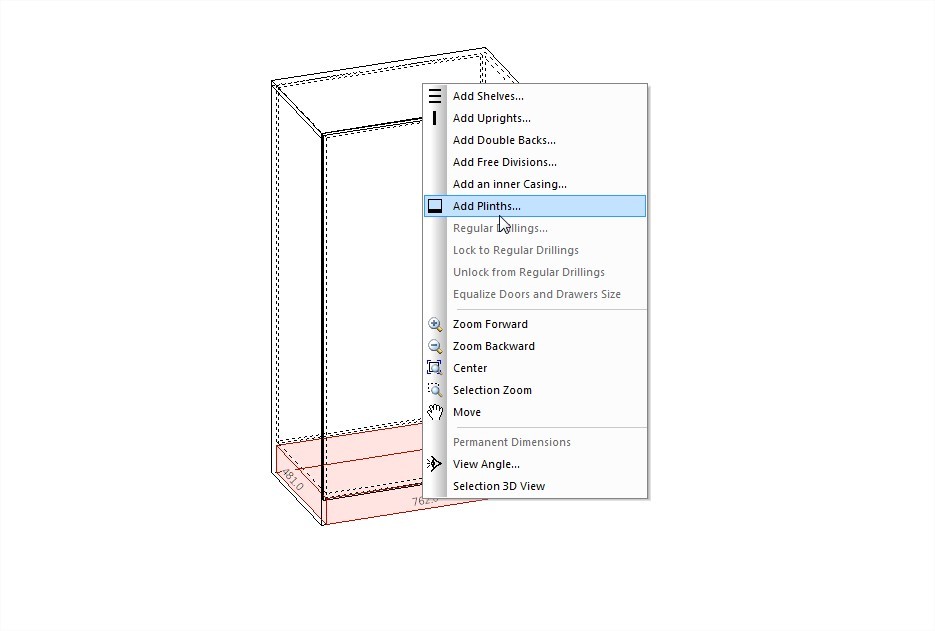

right click and choose add plinth

hung2.jpgImage Enlarger

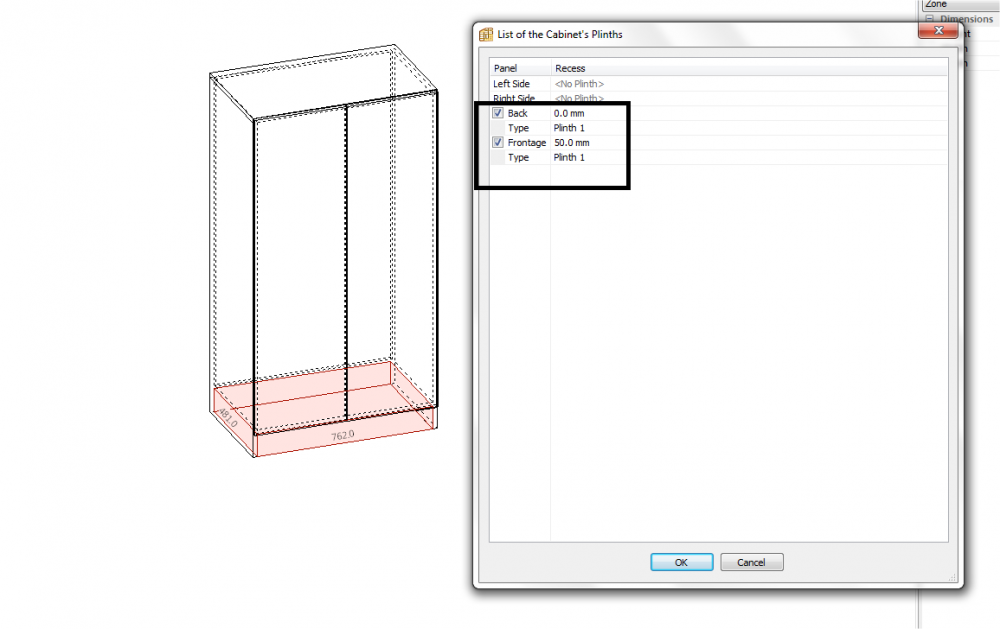

You can set the plinths you need ( front and back ) with eventual recess

hung4-1.pngImage Enlarger

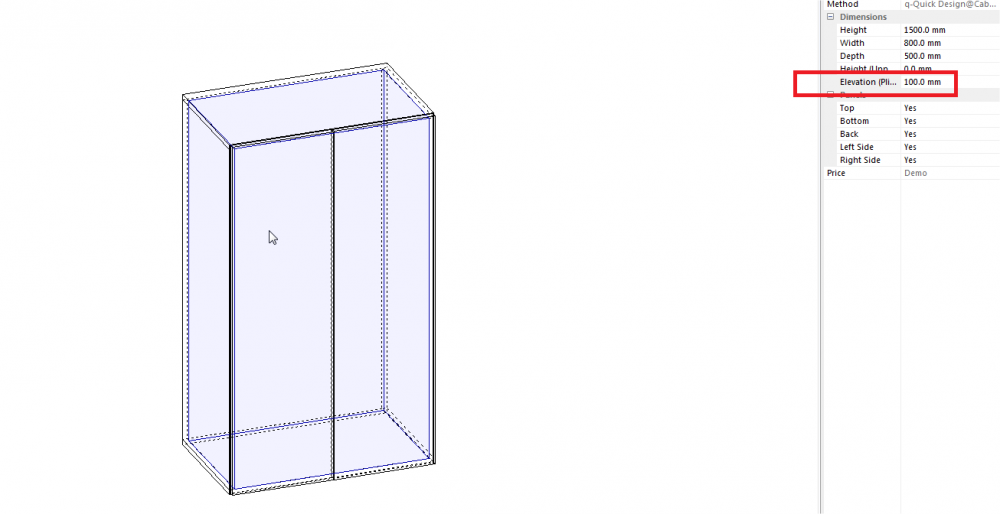

When you have no overpassing sides you need to add an elevation plinth height

hung5-1.pngImage Enlarger

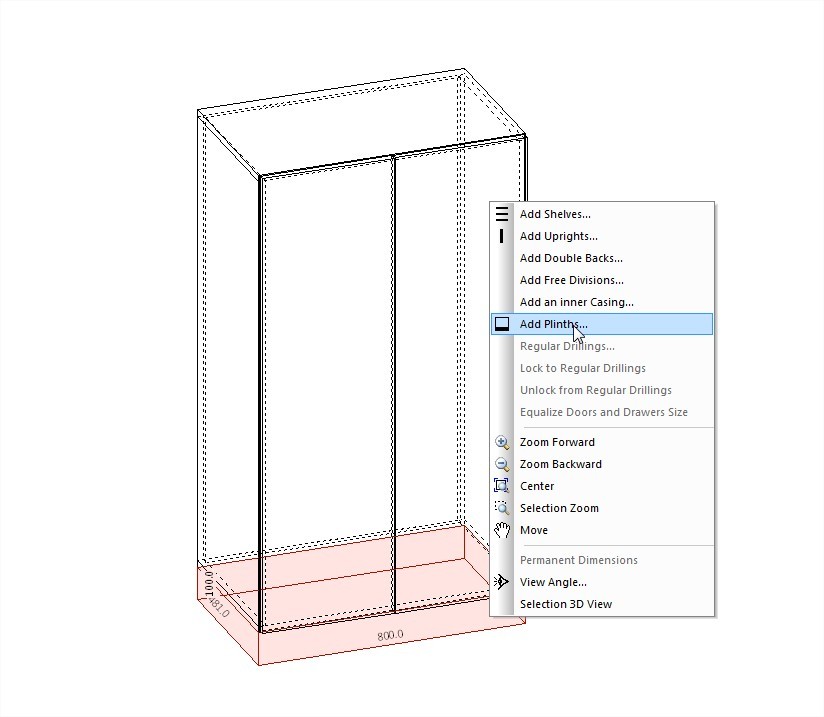

this will create the lower volume so that you can add plinths

hung6.jpgImage Enlarger

Be informed that you can only add side plinths when your side panels are underpassing

regards

Michel

sp_PlupAttachments Attachments
Avatar
Guest
1
May 8, 2018 - 5:02 pm
sp_Permalink sp_Print

Hi all,

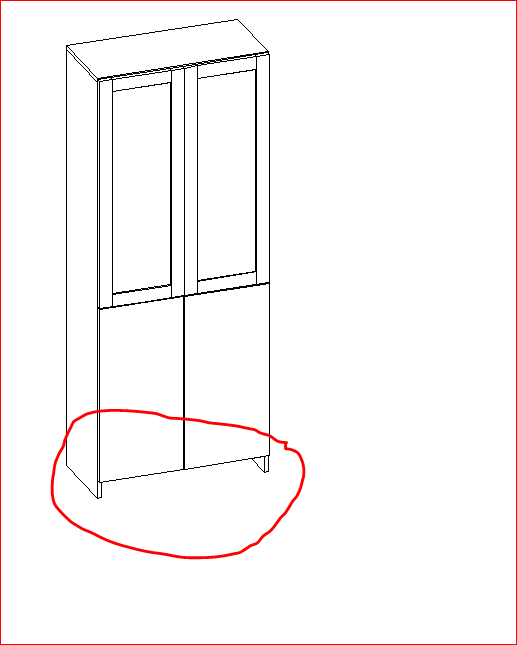

 I’m new user, please tell me how to add a panel front plinth (attach file)

Thank yofront-panle.PNGImage Enlarger

u

sp_PlupAttachments Attachments
