Hi Dam,

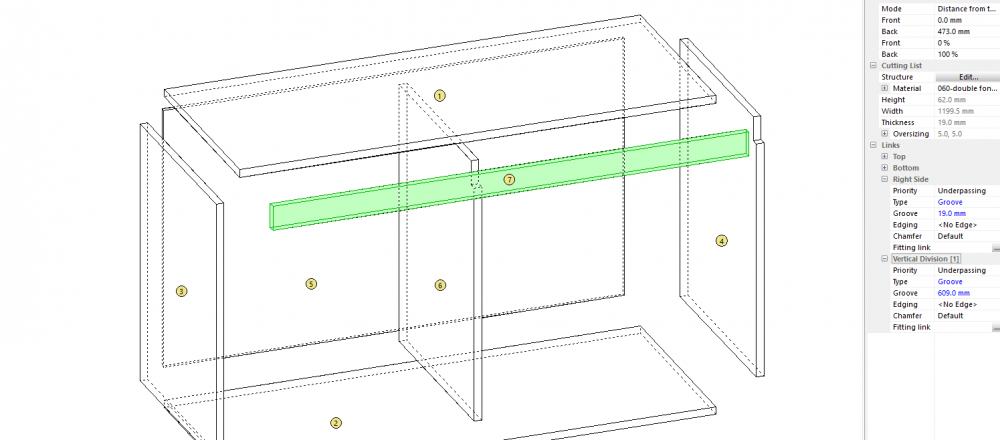

Place middle upright panel before the cross bar and make the assembly to the right side a groove with a depth equal to the side panel thickness and the assembly to vertical upright a groove with depth equal to thickness of vertical division + interior volume + thickness of left side:

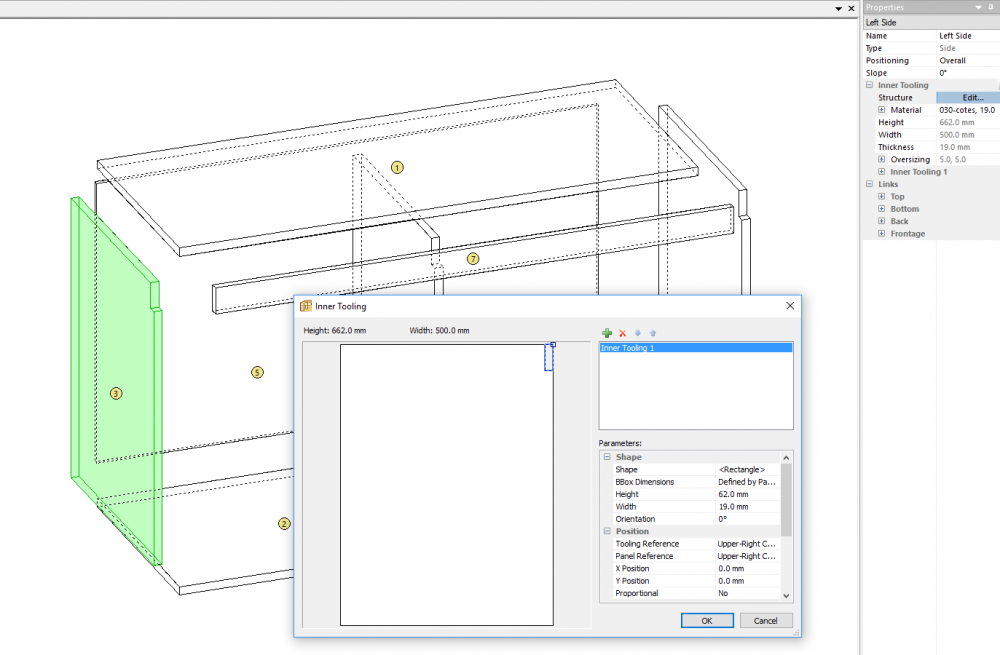

Make cut out of left side with inner tooling:
Hope this is helpful.
Best regards,
Ness
Hi Ness,
I want to make the front cross bar of the cabinet go through the side and upright panels.

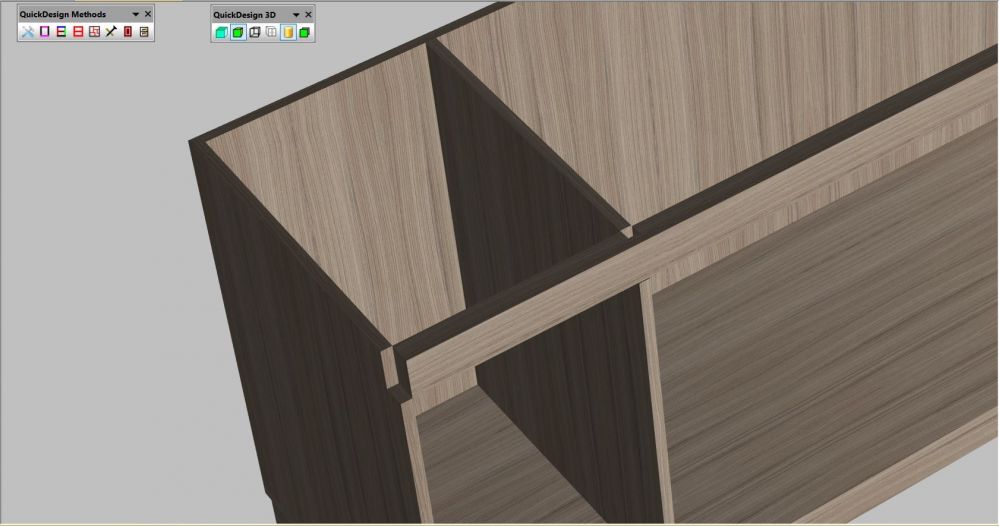

I tried to make a inner tooling to cut the corner of the side and upright panels but when i insert the upright and make it groove type but the software did not understand the space cut by inner tooling in the corner of the side and upright panels, so that the side and upright panels split the front cross bar into 2 separate parts.
Can you help solve this issue?
Thank you.
