Drawer bottom, doubleback, and inner tooling
Avatar
Alex

Forum Posts: 1841
Subscriber Since:
January 20, 2017
sp_UserOfflineSmall Offline
4
January 5, 2022 - 1:02 pm
sp_Permalink sp_Print sp_EditHistory

Hi,

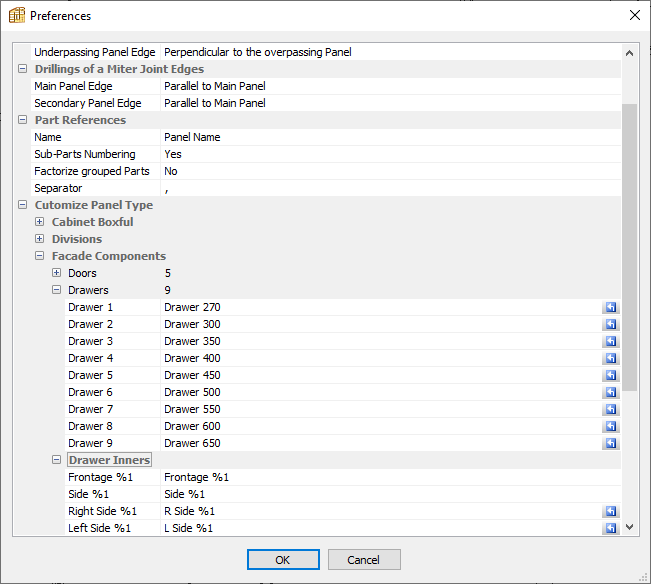

From menu Tools>Preferences

 part-drw.pngImage Enlarger

%1 = drawer you add



sorry, box side can’t be edit



All the best, Alexandre

sp_PlupAttachments Attachments
Avatar
Guest
3
January 5, 2022 - 12:37 pm
sp_Permalink sp_Print

Hello,
Thanks for answers.

Tell me please, how can I change the names of cabinet sides.

For example at the moment I have cabinet name – Model.
And when I`m making cuttinglist – there are righ side and left side.

In which settings I can change name of right and left side – so it is in Latvian – labais un kreisais?

Thank you.

Avatar
Michel

Forum Posts: 1013
Subscriber Since:
August 7, 2014
sp_UserOfflineSmall Offline
2
December 30, 2021 - 9:27 pm
sp_Permalink sp_Print

Hi girts,

Do not use overpassing as a double back is an inside element and will cut the lower panel in all situations.

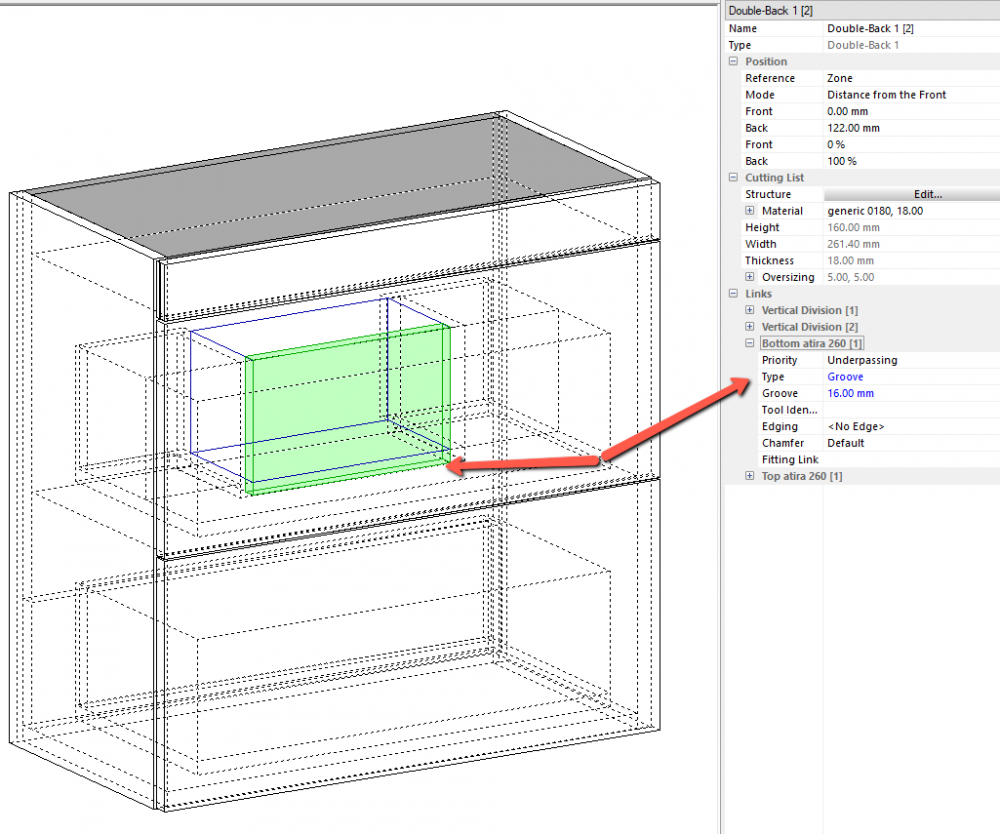

I rectified the inner tooling to match the dimension excluding the double backs. After that, you have to change the type on the double backs in link to the bottom to groove and set groove on 16mm to overpass the bottom panel



girts.pngImage Enlarger



regards

Michel

sp_PlupAttachments Attachments
Avatar
Guest
1
December 30, 2021 - 8:41 pm
sp_Permalink sp_Print

Hi,

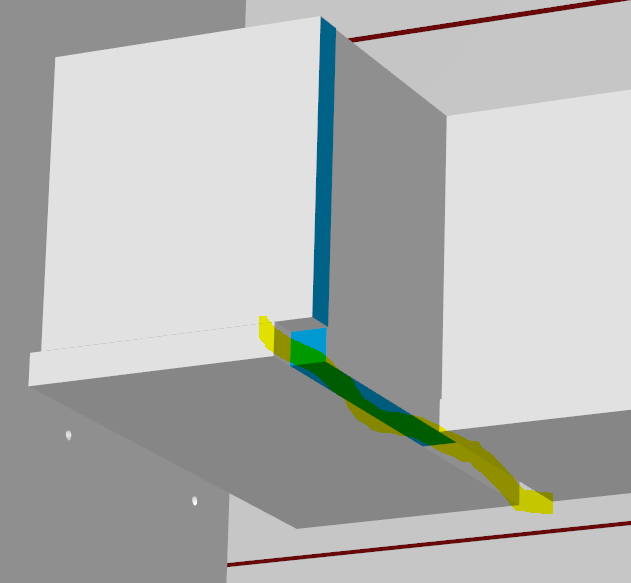

Tell me please – what could I do to make double back and verticals to be overpassing drawer bottom and not making groove in full length ( See picture – Overpassing)

Inner-tool-overpassing.PNGImage Enlarger

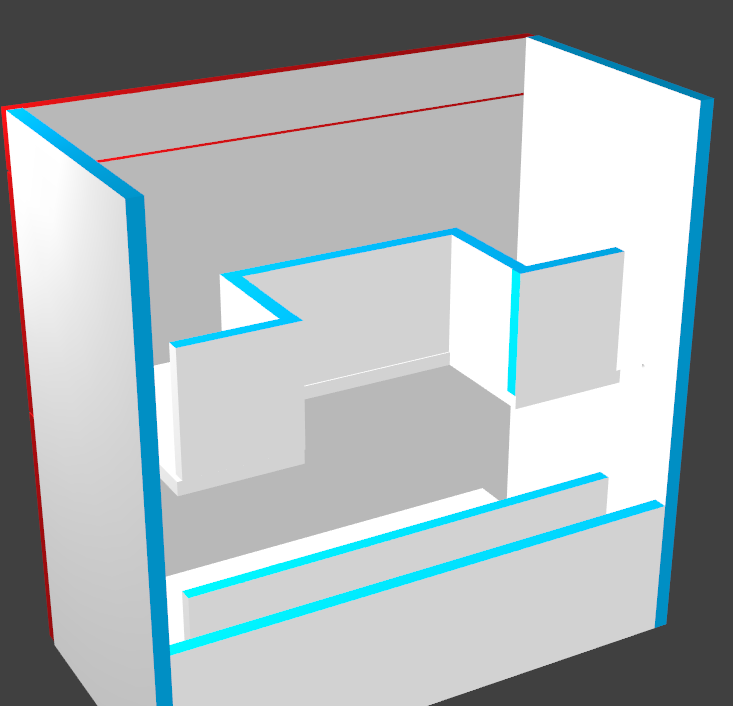

Inner-tool-underpassing.PNGImage Enlarger

sp_PlupAttachments Attachments
