Labels don't match the cutting plan|Forum|WOOD DESIGNER
Home
January 20, 2017
Offline
Hi,
As I said in my previous message, this is not a bug, and this principle has not been changed since the previous versions
Cheers, Alex
May 18, 2014
Offline
Hi Alex,
Any news on this issue?
I am using version 6.04f. I recently updated the toolbars and libraries for polyboard.
Kind regards
Tom
January 20, 2017
Offline
Hi,

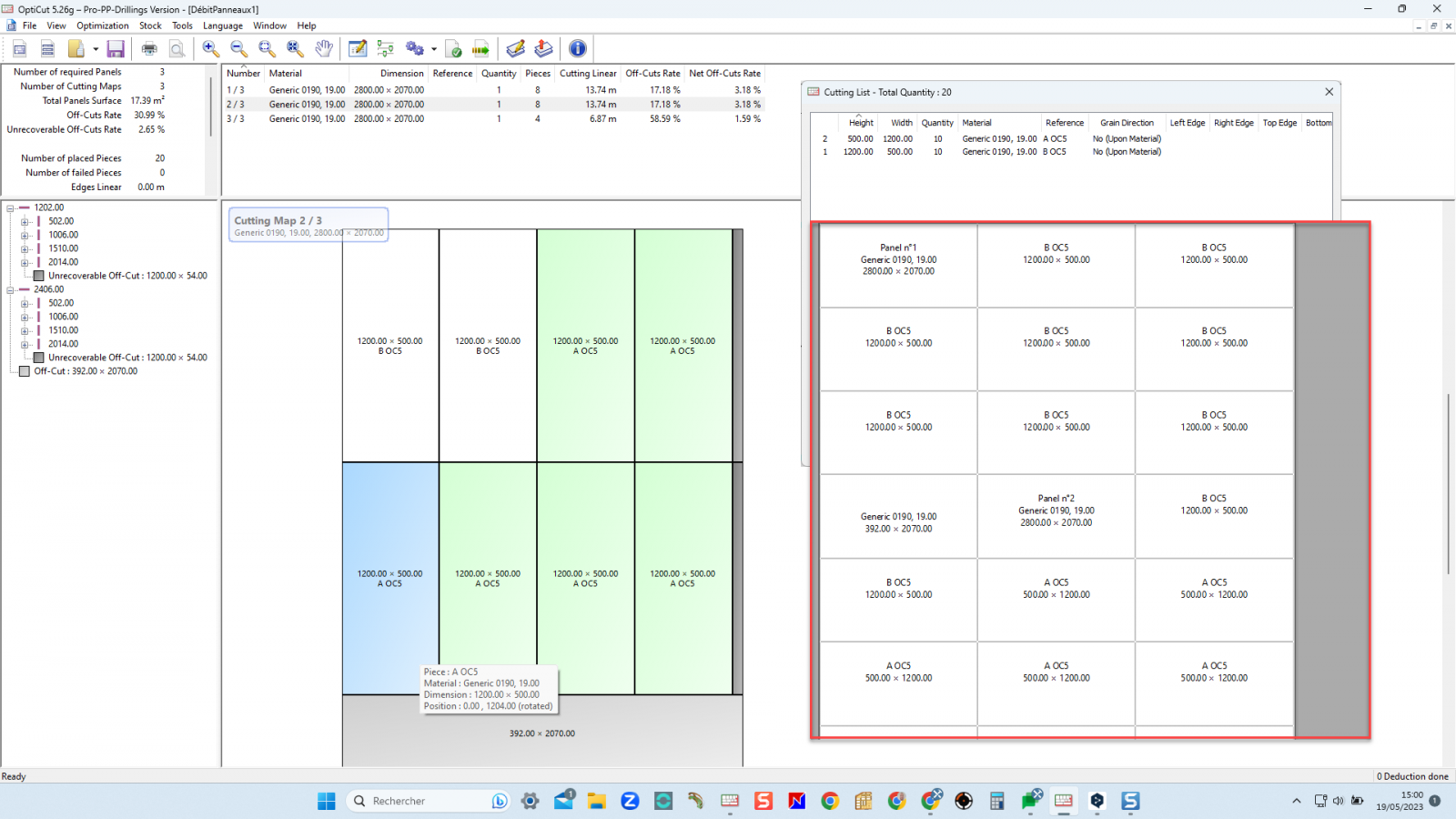

Quick check it is already the case from OC5 no change hase been done for many years on this subject
Cheers, Alex
January 20, 2017
Offline
Hi noted,
I’ll ask to developpement team’s more information and come back as soon as I have replies
Cheers, Alex
May 18, 2014
Offline
Hi Alex,

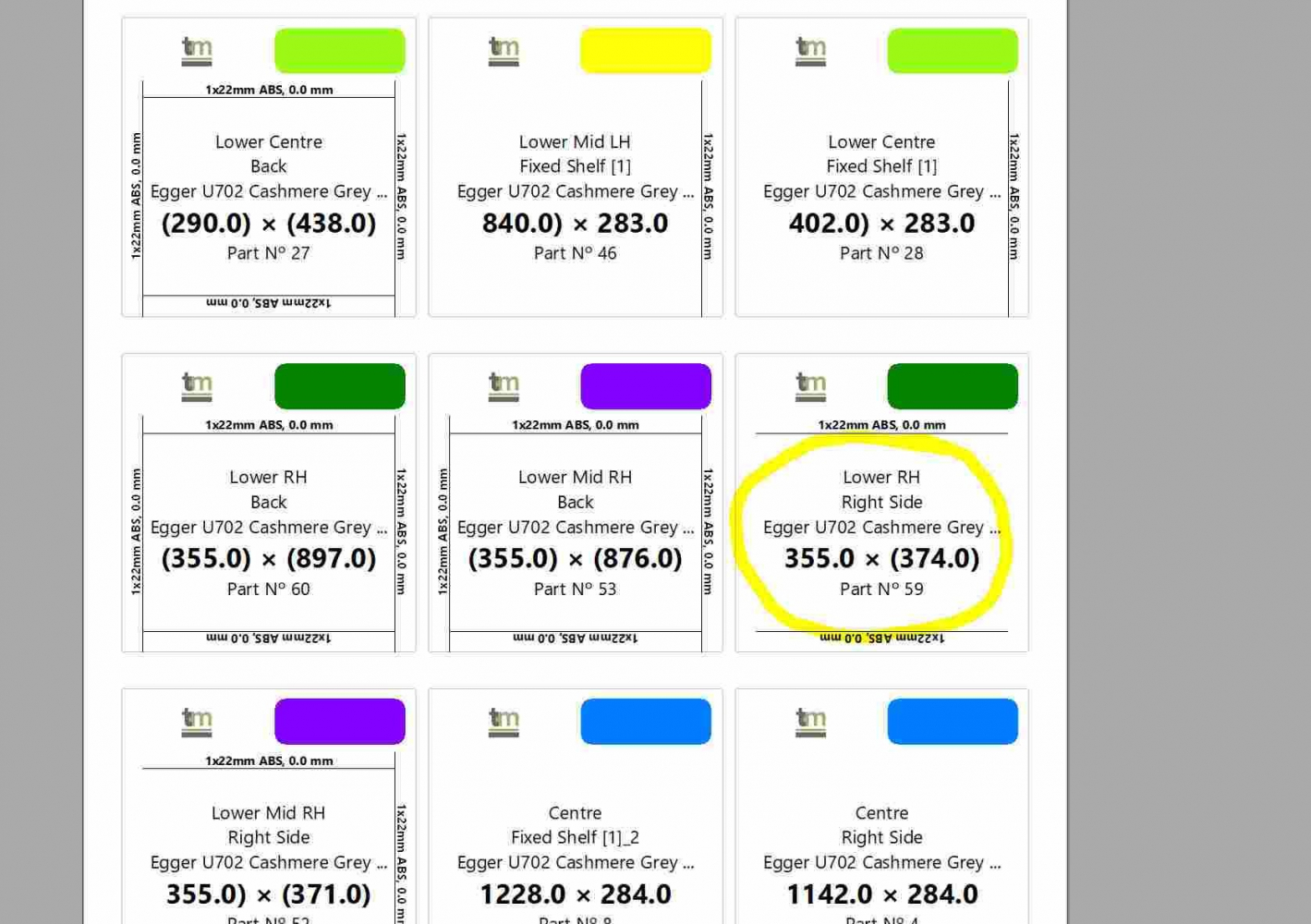

I’m not sure I understand. The example you have sent through still shows the label with the length and width dimensions swapped from the cutting list. We have always read a dimension from the cutting list as length (grain) then width.

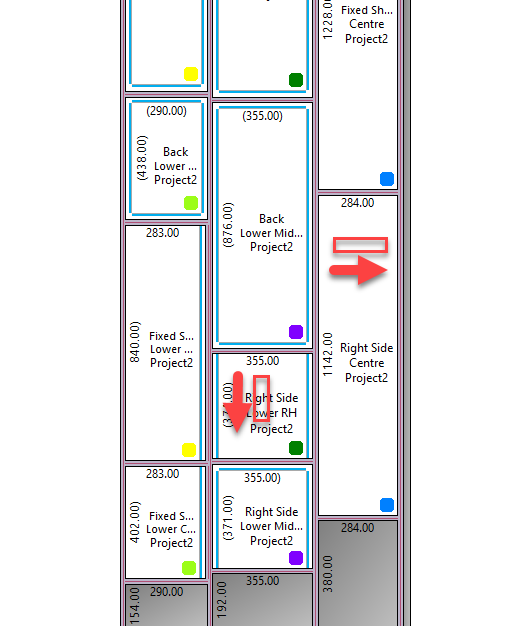

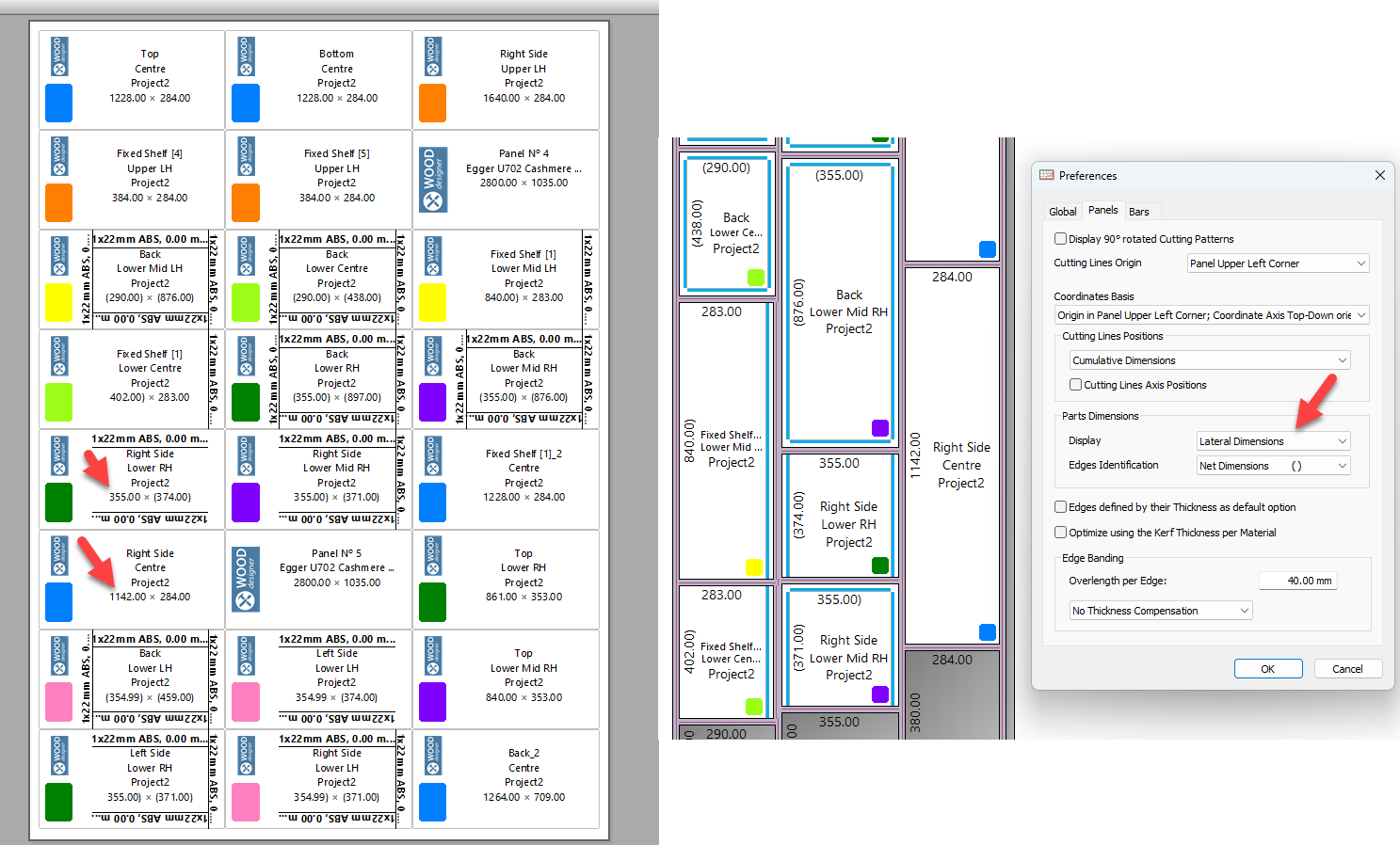

Also displaying dimensions laterally on the cutting plan makes no difference to how the labels come out. The cutting list is not the problem, it is correct whether the dims are displayed centrally or laterally. It’s the fact that the label/ s don’t match the orientation of the cutting plan.
We have used Opticut and Polyboard like this for a few years now and this is the first time the label did not match the cutting plan?
Am I missing something?
Kind regards
Tom
January 20, 2017
Offline
Hi,

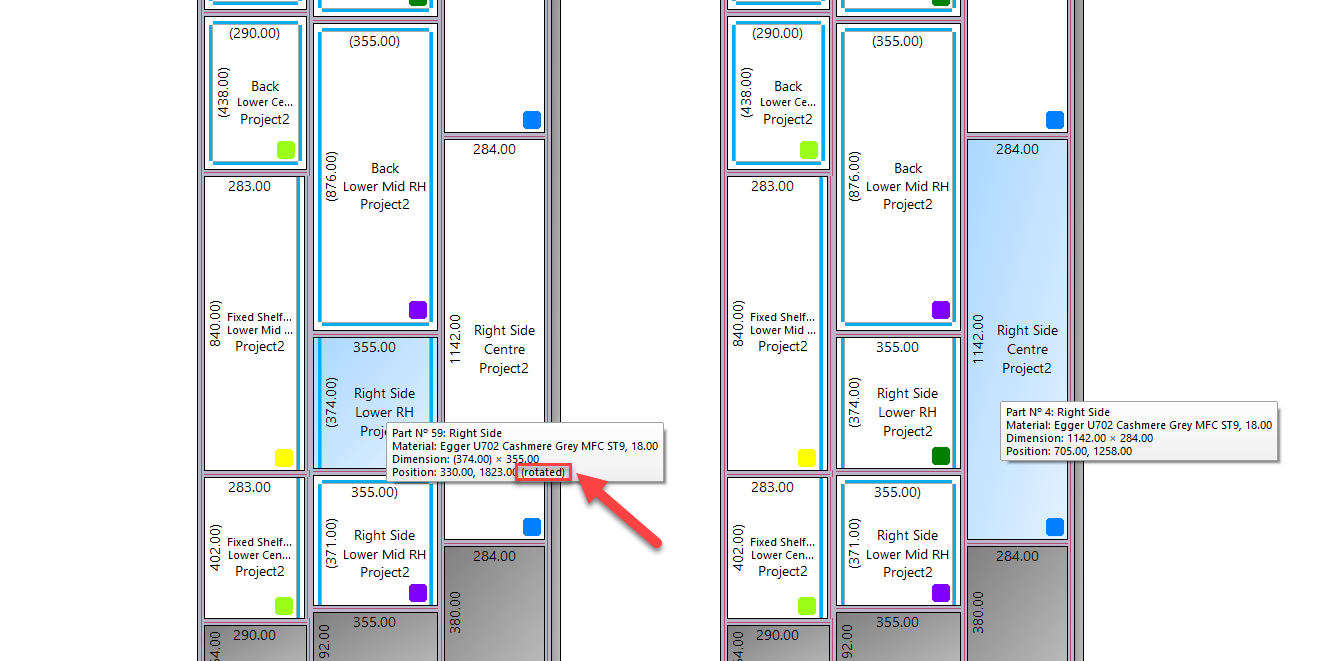

This happens on the piece that has received a rotation
The labels show the height and width of the part
It must also be taken into account that the label will also be stuck with a rotation
I prefer to display the size of the parts in the laterals
Hope that’s helpful, Alex
