Wood Designer forum
Not able to optimize CSV Files |Forum|WOOD DESIGNER
Home
November 11, 2019
Offline
Hi Alex, Thanks for the help
Regards
January 20, 2017
Offline
Like explained on my previous message,
You make choice of restore materials, then you need to create panel using this news materials
Cheers, Alex
November 11, 2019
Offline
Hi Alex, Thanks for your help.

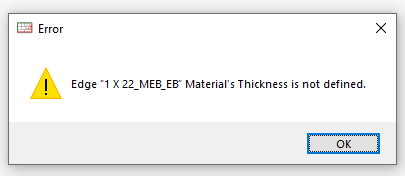

so far we are done with the cultist, only the problem is I am not able to understand why these seconds pops out after adding sheets. could you please explain the processes of adding sheets?
many thanks
January 20, 2017
Offline
Hi,

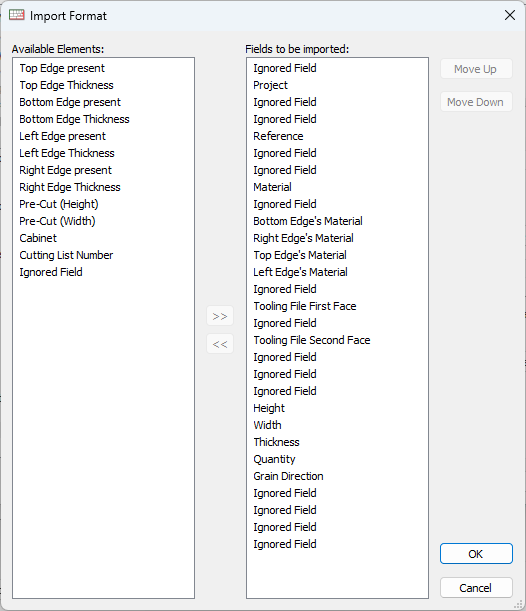

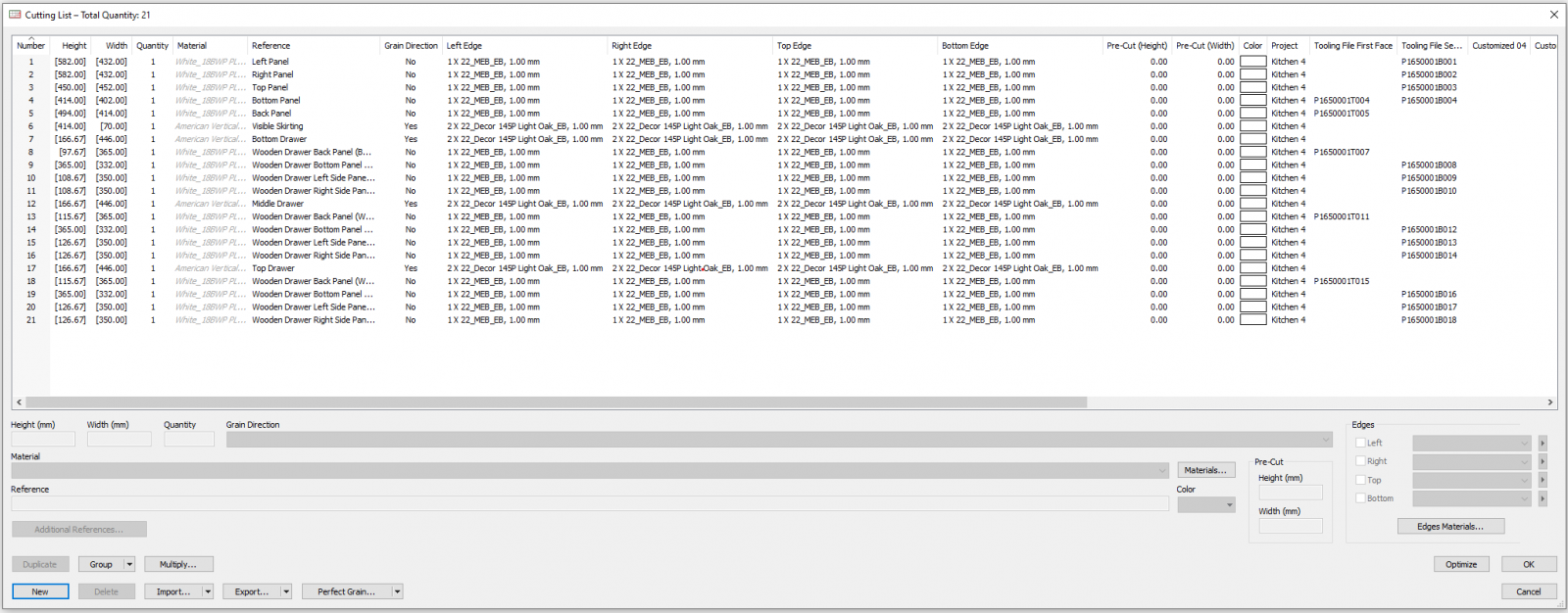

1 – I have re-work import format with this all should incoming in the right fields
–
2- You can’t leave materials grayed out, because that means they’re not in your libraries and optimization can’t be done.
-Click on the field header to sort by type, then select several lines to batch-modify them with those in your libraries.

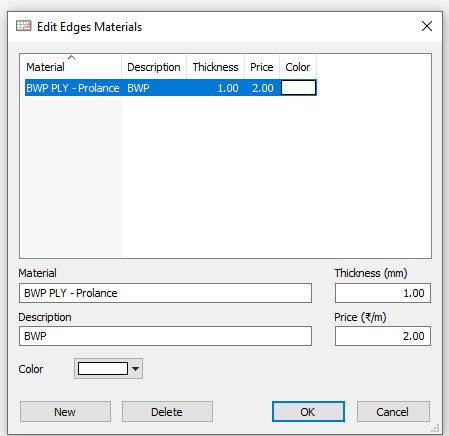

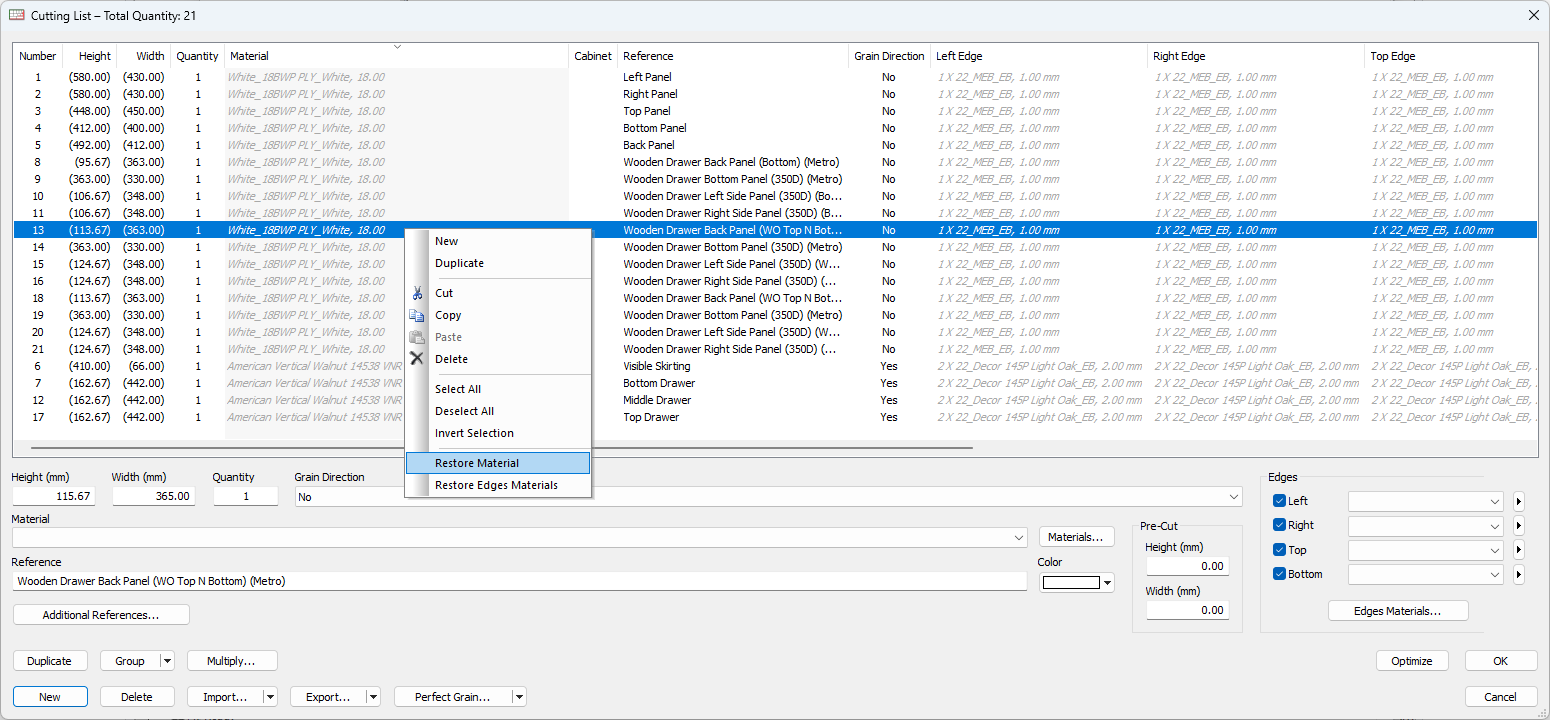

-Or, restore it to your libraries with a right-click, but be careful: if you restore it, you’ll need to create a panel for these new materials, and define an edge thickness, even at 0mm.
Cheers, Alexandre
November 11, 2019
Offline
Hi,

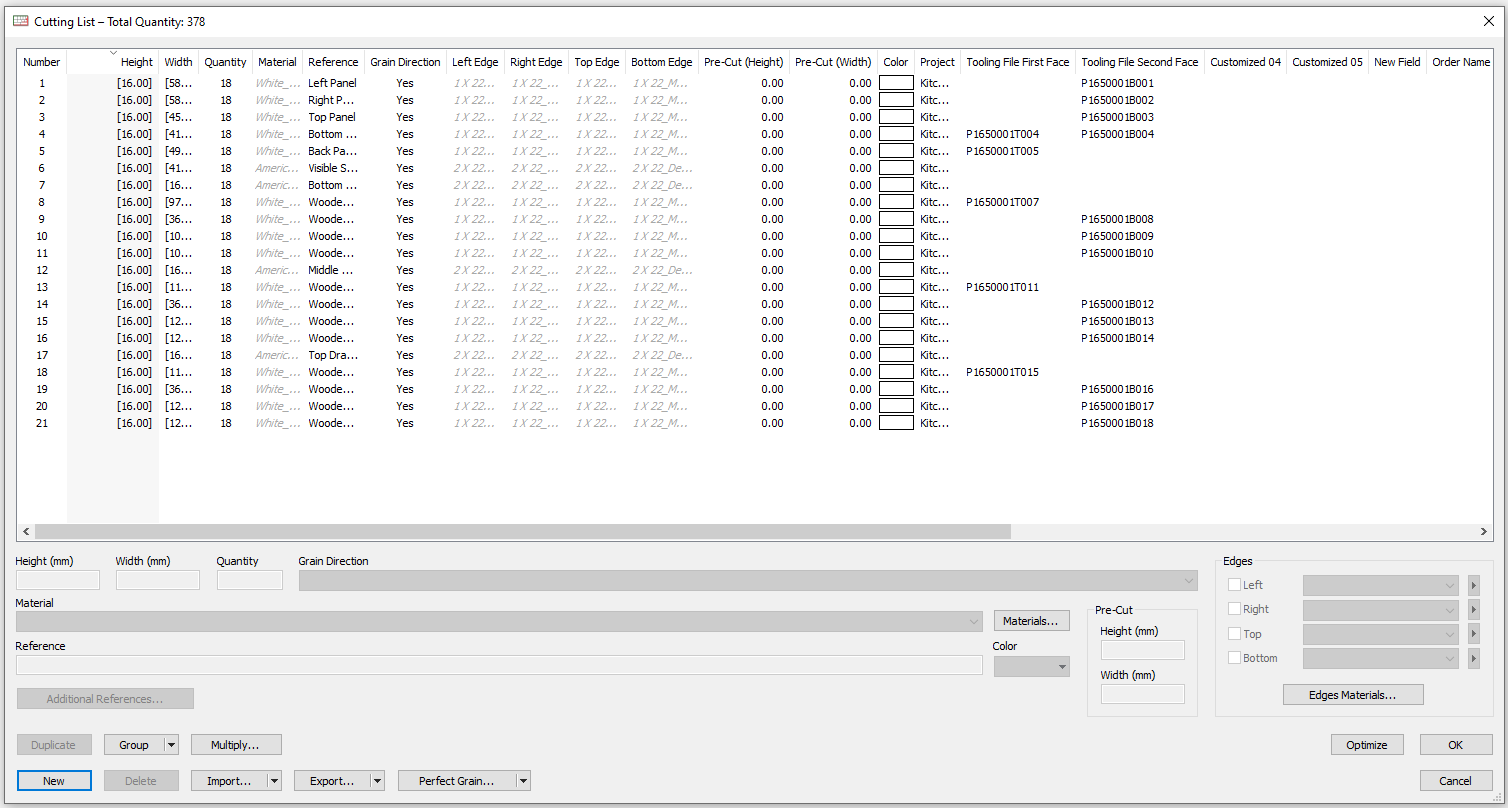

I have tried the Processes that you shared, After doing this the problem is the inputs in the given file are placed in wrong values like Height and Quantity. also, it’s not able to fetch edging details.
Please check and guide us, on what needs to be done
Thanks
