Hi George,

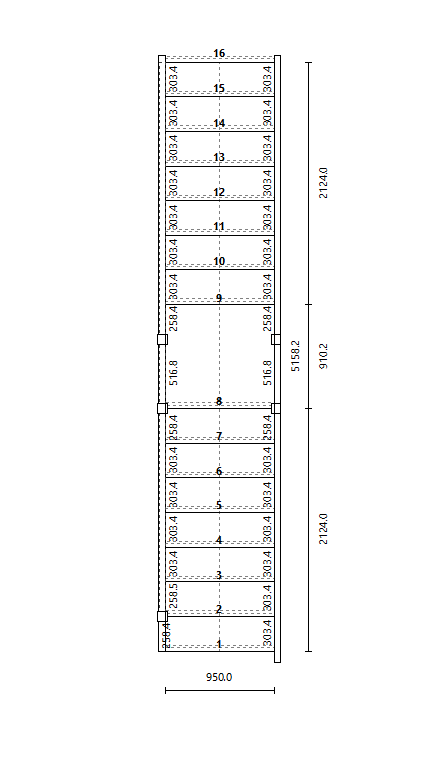

You added on the wrong side of the riser. I corrected it myself. I just noticed that you did not add a landing step, but you extended the stringboards beyond the last step by 56mm. The smallest step in this setup is 60mm. In case you will have to reduce it upon production. This setup also means that the last step is not included in the flight length. So now, in fact, the total length of your stair is 5158.2 + 56 mm. If this is correct, please confirm otherwise, you need to correct this.

I attached the version with the correction on the risers. You always have to look in your 3D window in wireframe to see if a change has been done properly.

regards

Michel

Hi George,

Ok, it worked now. Everything looks fine. I only have a few remarks before sending the documents, as you have to be sure.

1 I do not see any penetration value from the riser to the lower side of the steps. It is usually 10mm.

2 the steps only penetrate the newel 5mm as it should normally have the same value as in the stringboards.

3 steps have an upper recess to the stringboards of 5mm. I would advise the same in the newels.

The stair as drawn is possible. I want to make you aware of what I found when checking. Point 1 is the most disturbing to me.

Regards

Michel

Hi George,

no, it is not working. It needs to be a .stair  file extension. Please shorten the name as this is very long for a stairfile name

also, look at this post to see if you doing it correctly

https://wooddesigner.org/forum…..ing-files/

regards

Michel

Hi George,

You did not upload the correct file. Please recheck

regards

Michel
