August 7, 2014
Offline
Hi,
Please add your opticut file for me to check, and also add your parameter file, which you can get via the menu tool/save parameters
regards
Michel
December 20, 2022
Offline
hello
I have set all setings like you are shoving but it stil isnt using all the cut-offs
It stil prefers to use the full panel.
January 20, 2017
Offline
After discussion with the development team, you can prioritise the drop by increasing the off-cuts depreciation percentage.
All the best, Alex
January 20, 2017
Offline
I have send request to dev team’s to force cut-off first
but the tests seem consistent, by changing Off-cuts quality to max
>
Cheers, Alex
December 20, 2022
Offline
hello
Yes i have the parameters set like you, but the resoult is the same.
January 20, 2017
Offline
Hi,
I think you’re looking for this option

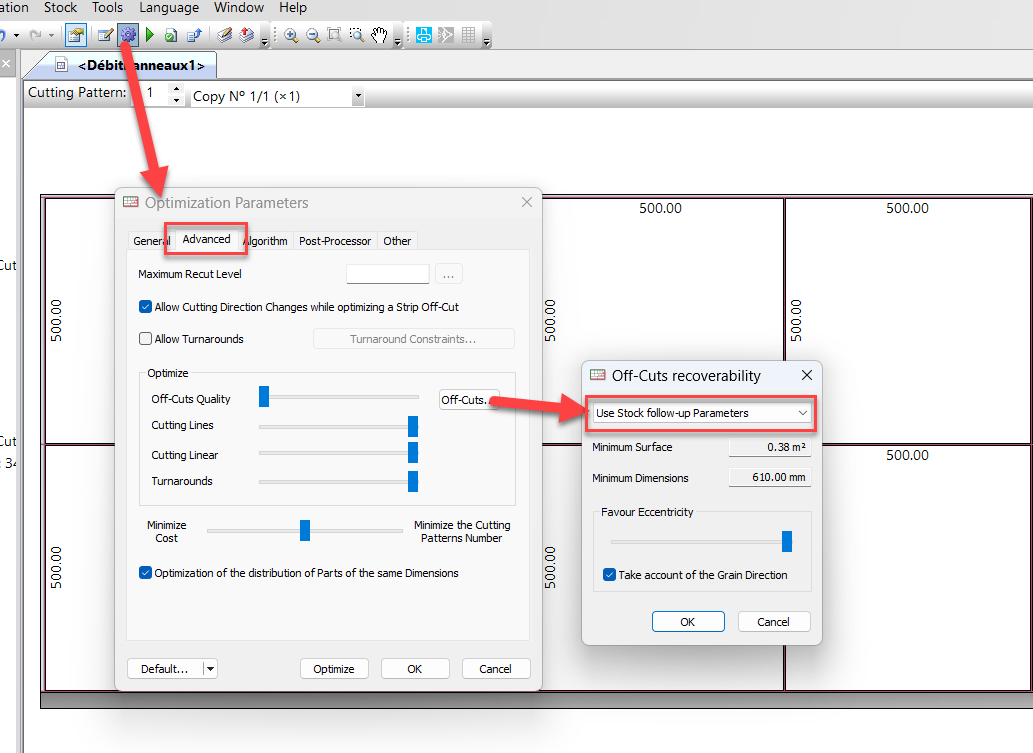

From Optimisation parameters > Advanced tab > Off-Cuts… > Select option “Use Stock follow-up Parameters”
Else there is no specific option to force Off-cuts first
I’ll ask to dev teams, if there is better solution or if news option can be create
Hope that’s helpful, Alex
December 20, 2022
Offline

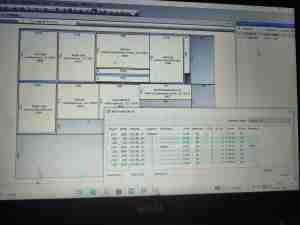

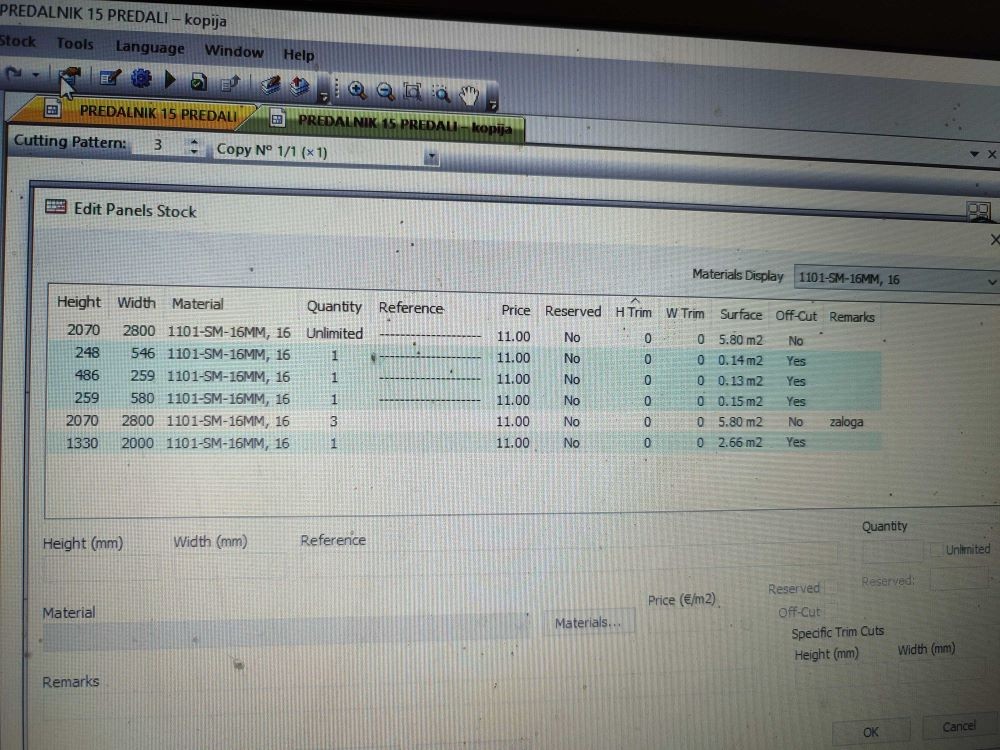

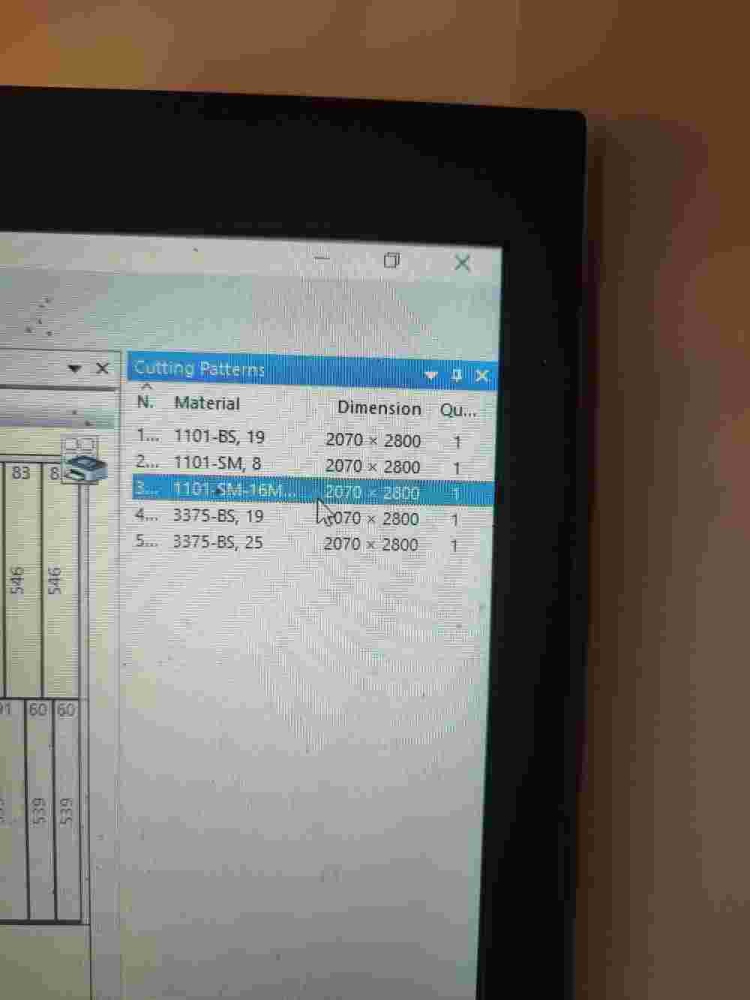

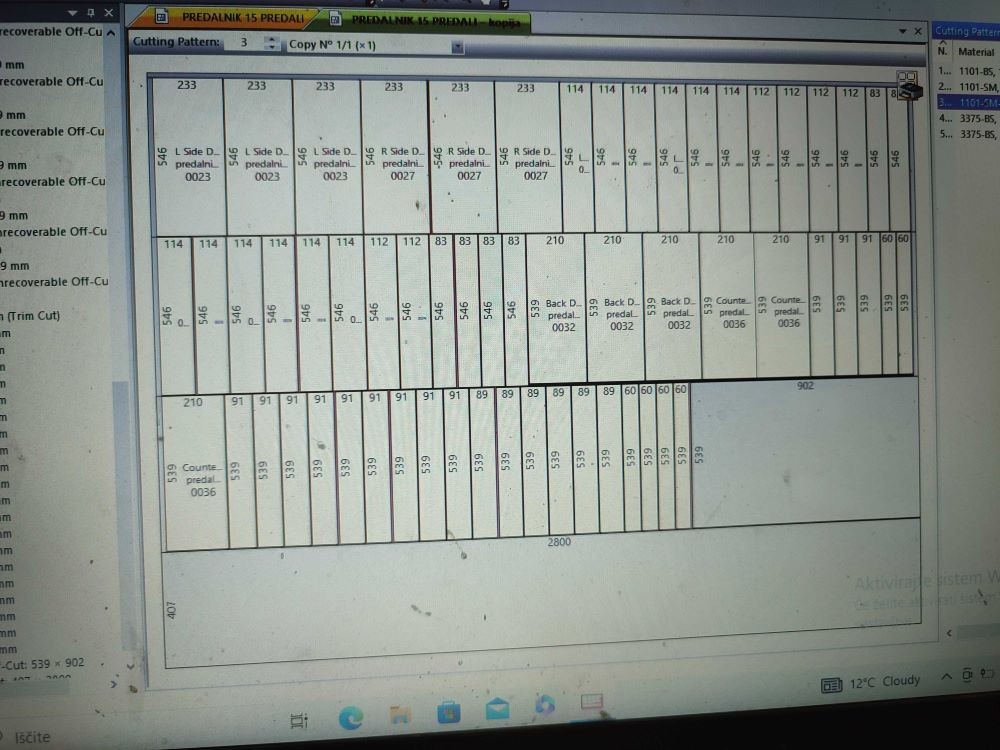

Here are some photos where i have 16mm panel offcut that could be used but it is not insted it is using the full panel
March 25, 2024
Offline
If this is set up this should prioritize using the off-cuts.

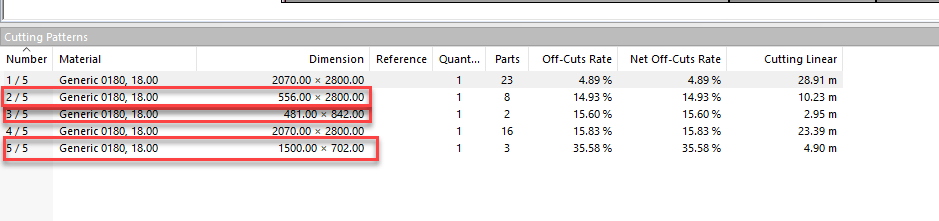

Refer to the attached image, this is a job I have used to test and there are 3 x off-cuts used. Even though they are referenced as panel 2/3/5, not panel 1, they are still being used. OC won’t always reference them as number 1 in the list.
I can continue to run some tests on this.
Are you achieving the same results I am achieving?
Isaac
December 20, 2022
Offline
Hello,
I have it set like this, but i keep seeing that the program still prefers using full panels if the optimization is better. So is there an option that regardles of the optimization quality it prioritzes the offcuts?
