How to get a sharp corner for led strip pocket, inner tooling processing.
Avatar
Puuslik
Estonia

Forum Posts: 45
Subscriber Since:
April 1, 2015
sp_UserOfflineSmall Offline
4
February 23, 2024 - 9:44 am
sp_Permalink sp_Print

Thanks, now my problem is solved .

Ain

Avatar
Alex

Forum Posts: 1841
Subscriber Since:
January 20, 2017
sp_UserOfflineSmall Offline
3
February 22, 2024 - 7:56 pm
sp_Permalink sp_Print

Hi,

Thanks for your quick reply Joss,

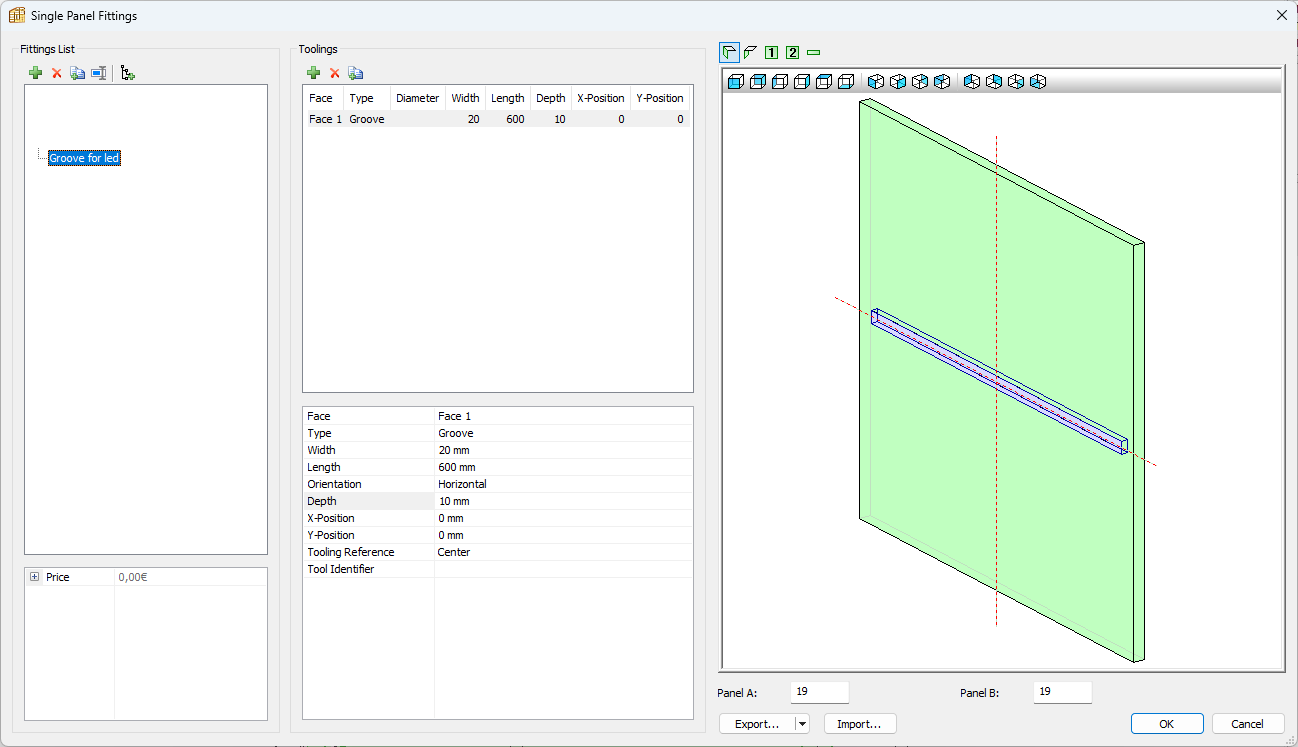

You can do your groove as single panel fitting

single-panel-fitting.pngImage Enlarger

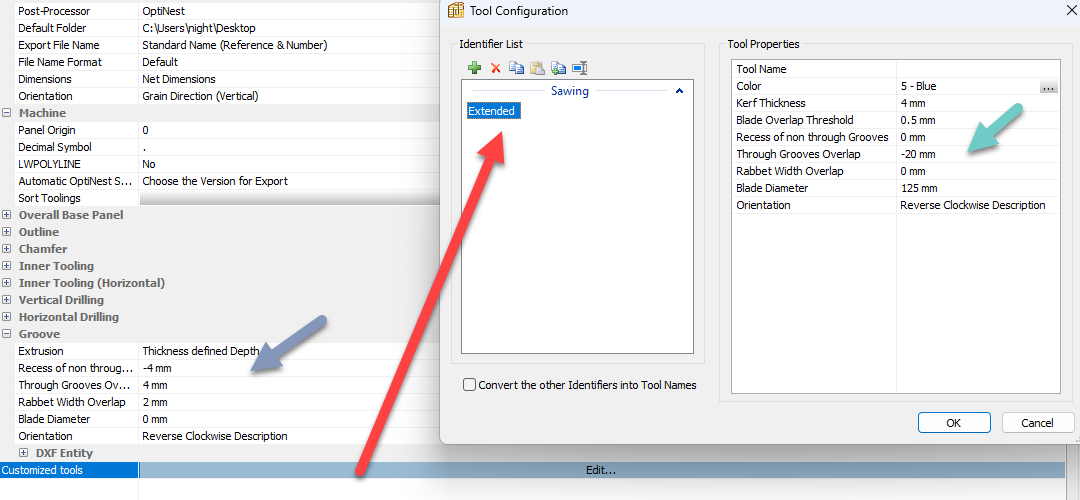

then extended it from PP setting , or extra setting with Customized tool if only for this grooves

custom.pngImage Enlarger

Cheers, Alex

sp_PlupAttachments Attachments
Avatar
MITC

Forum Posts: 55
Subscriber Since:
October 3, 2022
sp_UserOfflineSmall Offline
2
February 22, 2024 - 4:12 pm
sp_Permalink sp_Print

Do it as a single panel fitting using a groove. Then you can set the post processor to extend your grooves longer.

Avatar
Puuslik
Estonia

Forum Posts: 45
Subscriber Since:
April 1, 2015
sp_UserOfflineSmall Offline
1
February 22, 2024 - 3:36 pm
sp_Permalink sp_Print

Hello!

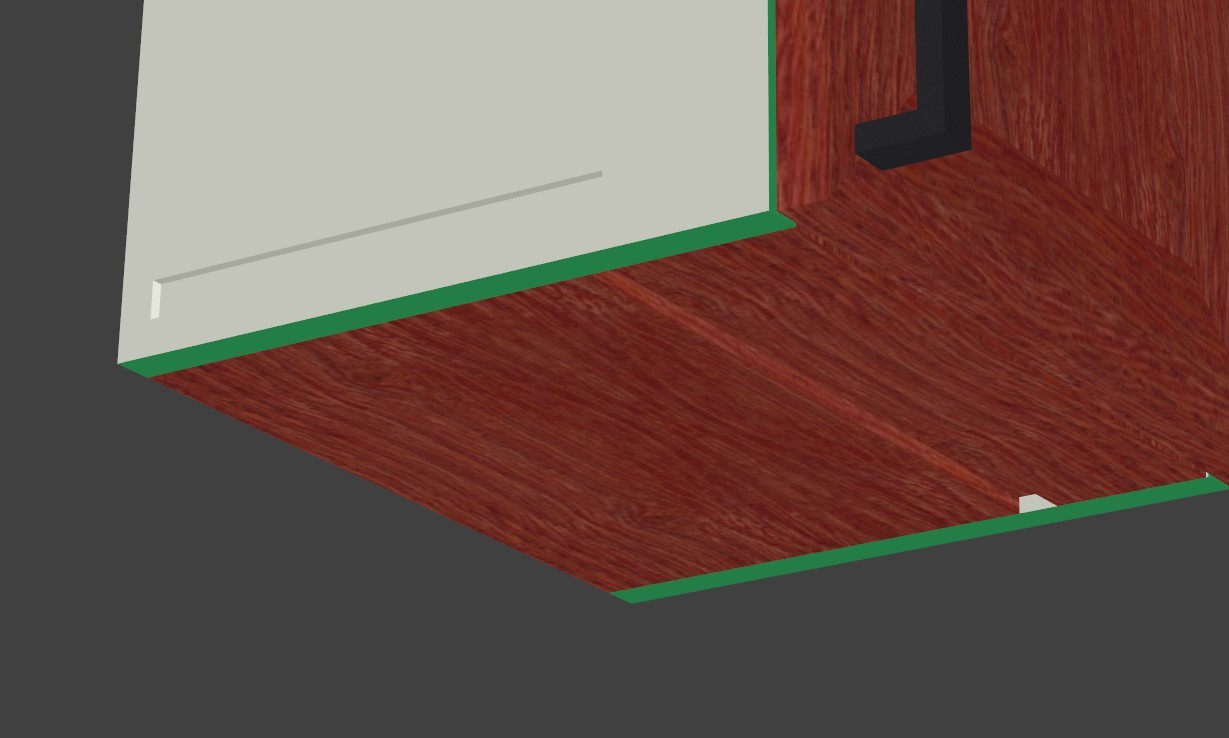

I need led strip pockets after cnc processing without the arc corners3d-visual.jpgImage Enlarger

Programming.jpgImage Enlarger

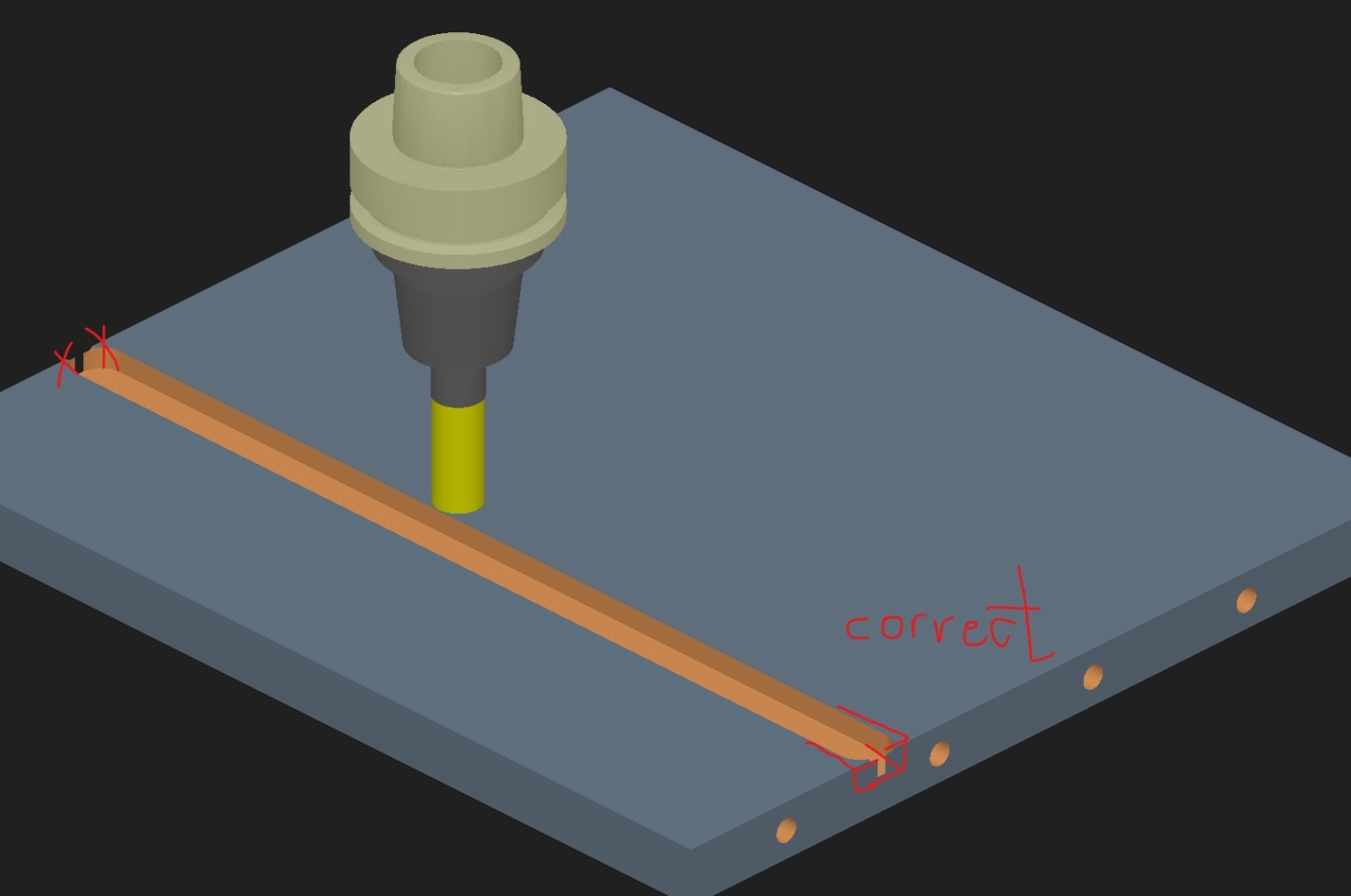

result-with-arc-corners.jpgImage Enlarger
of the blade radius.

So that the pocket extends beyond the outer line of the part. See attached pictures.



Best regards!

Ain
