skimming cnc bed
Avatar
Isaac

Forum Posts: 110
Subscriber Since:
March 25, 2024
sp_UserOfflineSmall Offline
5
August 23, 2024 - 10:22 am
sp_Permalink sp_Print

Hi Caroline,

Please refer to the attached images.

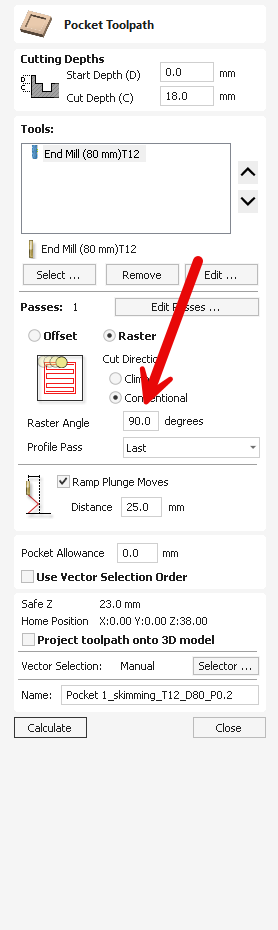

This image refers to the direction of the cut (top to bottom)

Direction.pngImage Enlarger

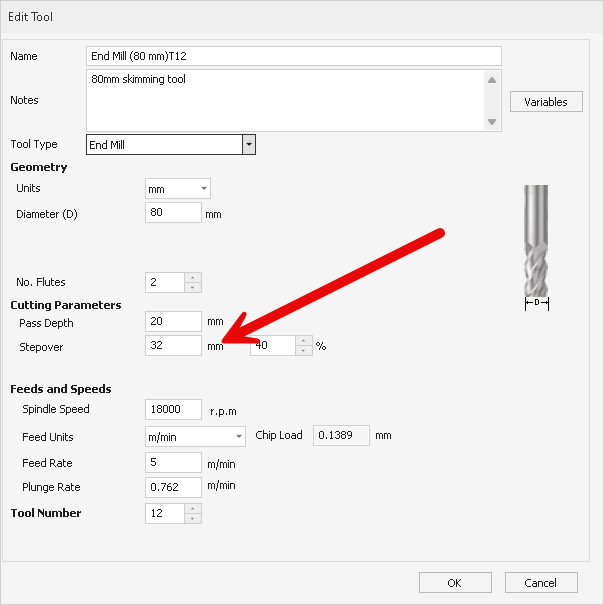

This image refers to where you can set a stepover for your tooling

Stepover.pngImage Enlarger



Let me know if you have anymore questions.

Regards,

Isaac

sp_PlupAttachments Attachments
Avatar
brendan kavanagh

Forum Posts: 141
Subscriber Since:
May 12, 2020
sp_UserOfflineSmall Offline
4
August 22, 2024 - 3:18 pm
sp_Permalink sp_Print

Hi Michel

Im just coming back to you on this, i changed the setting to raster and it now goes from left to right but Brendan wants it skimming Top of the Board to Bottom also using the 80mm bit we only want it to crossover on to next part no more than 5mm can you send me video or screenshot please

Thanks again

Caroline

Avatar
brendan kavanagh

Forum Posts: 141
Subscriber Since:
May 12, 2020
sp_UserOfflineSmall Offline
3
July 31, 2024 - 5:47 pm
sp_Permalink sp_Print

Thanks Michel

Avatar
Michel

Forum Posts: 1013
Subscriber Since:
August 7, 2014
sp_UserOfflineSmall Offline
2
July 30, 2024 - 8:08 pm
sp_Permalink sp_Print

Hi Caroline

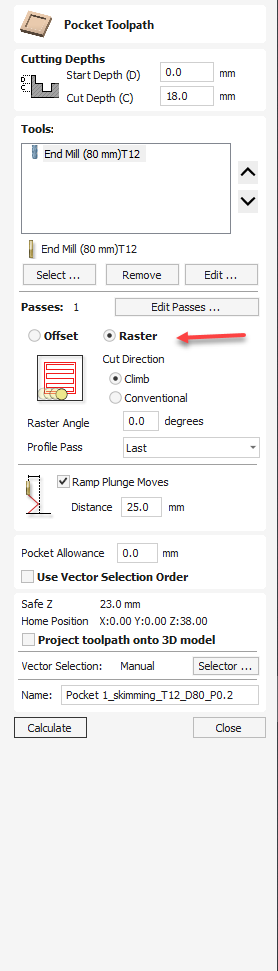

In the pocket toolpath select raster function instead of offset. This will start from bottom to top.

raster.pngImage Enlarger



regards

Michel

sp_PlupAttachments Attachments
Avatar
brendan kavanagh

Forum Posts: 141
Subscriber Since:
May 12, 2020
sp_UserOfflineSmall Offline
1
July 30, 2024 - 2:04 pm
sp_Permalink sp_Print

Hi

we have a toolpath set up in vcarve but we want to change the direction of the path going from top to bottom on the bed

Can this be done?

attaching our file for you to look at

thanks Caroline

sp_PlupAttachments Attachments
