Printing stair templates|Forum|WOOD DESIGNER
Home
April 22, 2016
Offline
Thank you so much Ness for all your help.
the templates are looking good now and we are on way to getting the strings machined
Regards
Paul
October 4, 2012
Offline
Hi Paul,
Following our Team Viewer session yesterday.

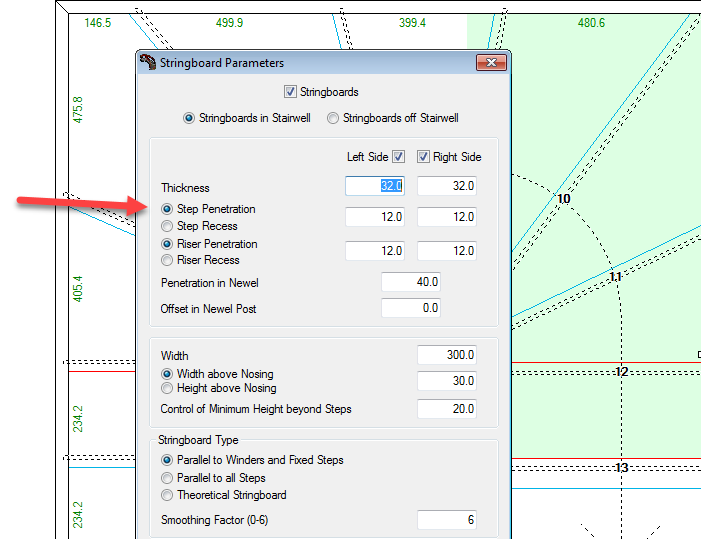

The problem with your design was the step housing depths.
They were set to “Step Recess” and not “Step Penetration”.
I attach the stair with the correct setting.
I’ve also adjusted a bit the strings and set them to straight on the right hand side.
This means you’ll have to probably adjust by hand the shape of the first right hand string to string joint.

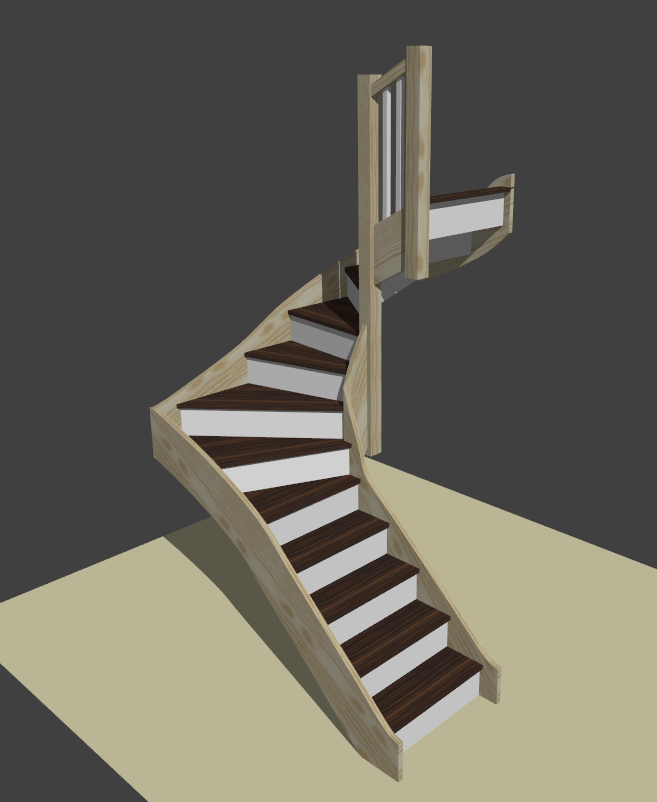

Your StairDesigner 7 model looks good too.
However you have to work a bit differently with 7 as the landing step is not automatically deducted from the tread line.
I attach also the v7 model modified.
all the best,
Ness
October 4, 2012
Offline
Hi Paul,
It’s 5:15 pm I can give you a Team Viewer session now if you want?
Or tomorrow morning if that’s better for you?
Shoot me and email or give me a call.
All the best,
Ness
April 22, 2016
Offline
Hi Ness
Is there anyway you could tell e how to set it up as I need to get it printed off this afternoon because we have to work on the stairs this weekend.
October 4, 2012
Offline
Hi Paul,
I’m tied up this afternoon but Monday morning from 9am would be OK for me.
Just let me know if this suits you.
All the best,
Ness
April 22, 2016
Offline
Hi Ness
Thanks for the speedy response.
I have dowloaded the pdf program. I would appreciate a team viewer meeting. When would be a good time ?
Perhaps in the morning.
Paul
October 4, 2012
Offline
Hi Paul,
You have to install PDF Creator from here:
https://www.pdfforge.org/pdfcreator
Once installed you print you templates to the PDF Creator printer and then send them to your print company.
If you need help we can set up a quick Team Viewer meeting so that I can walk you through it.
All the best,
Ness
April 22, 2016
Offline
Hi Stefan
As you know I have purchased the complete stair designer program and we are just about to make our first staircase using it. I do not have a plotter yet and would like to be able to send the print file to a local company who can plot out A0 size prints.
Can you give some pointers on how to achieve this please. The print company say they just need a file emailing to them but I,m not sure how.
I would like to be able have the strings, winders and newel post templates.
I look forward to hearing from you
Kind regards
Paul
