Isaac,
Fantastic video… Really well explained and very helpful. I will give this a go and see how it works.
Thanks again.
September 1, 2022
Offline
Hi Isaac..

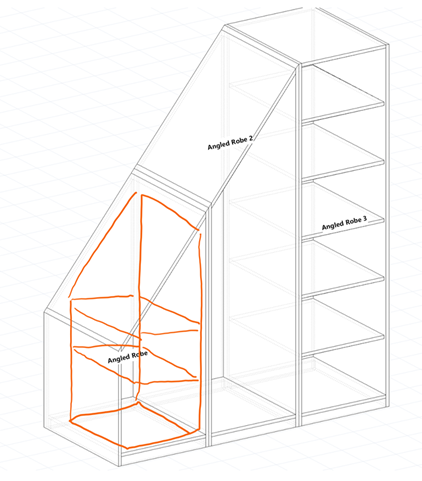

What further information would you require? I was hoping the attached image would explain all.
Regards
Dean
March 25, 2024
Offline
Hello,
Would you like to provide some more information about what you are trying to achieve? I will look into this for you.
Regards,
Isaac
September 1, 2022
Offline
Hi Alex,
This post is the closest I’ve found to what I need to design. I have created the boxes but I have not idea how to do the insides and fronts on this. Your video is very good, but doesn’t address a full length.
Can you help?
January 20, 2017
Offline
Hi,
The only point you need to know is you can’t add drawer into sloped zone,
but if you add Nil shelves to have rectangle zone, you can add built-in drawers with Nil frontage, then add doors to use it as drawers frontage

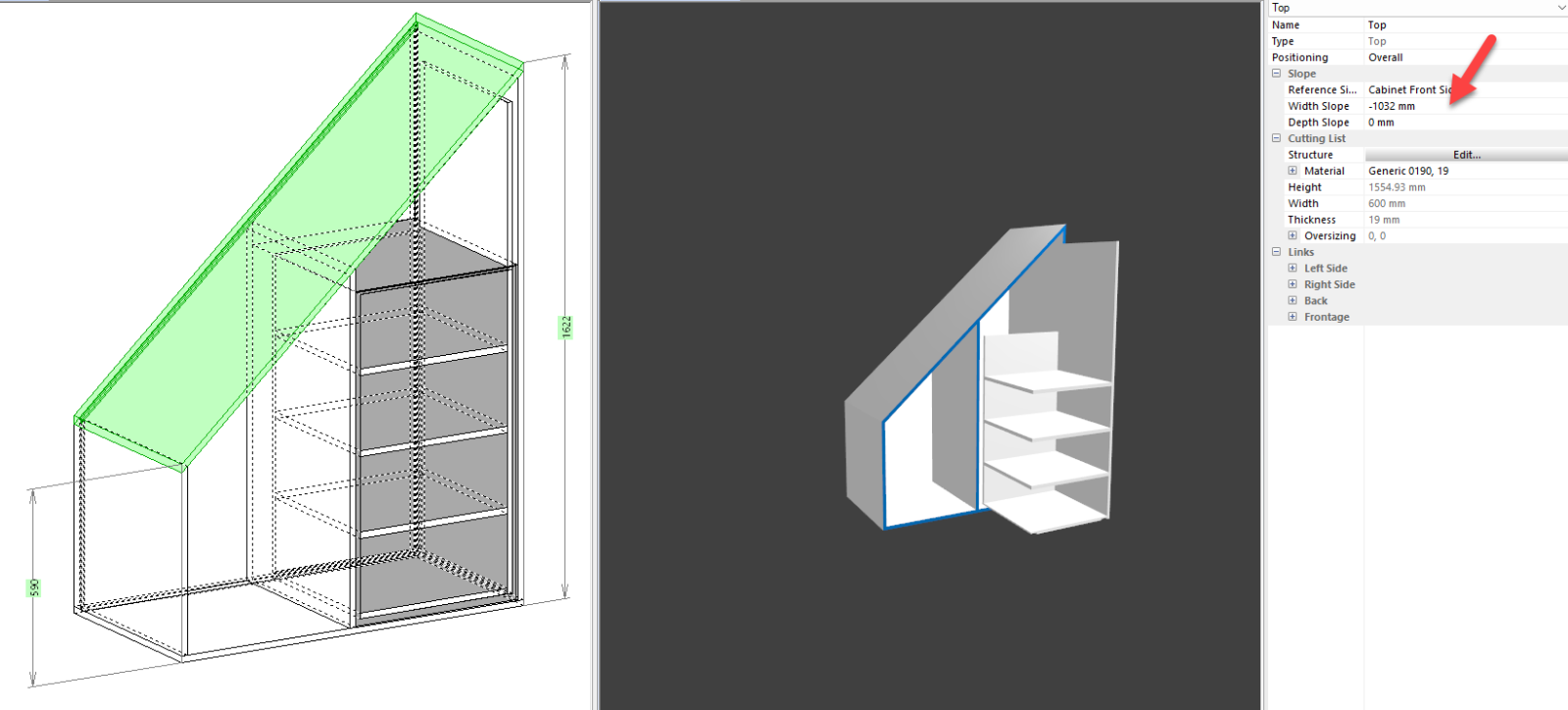

I have joined cabinet as sample,
Hope that’s helpful, Alex
January 24, 2023
Offline
Hi alex,

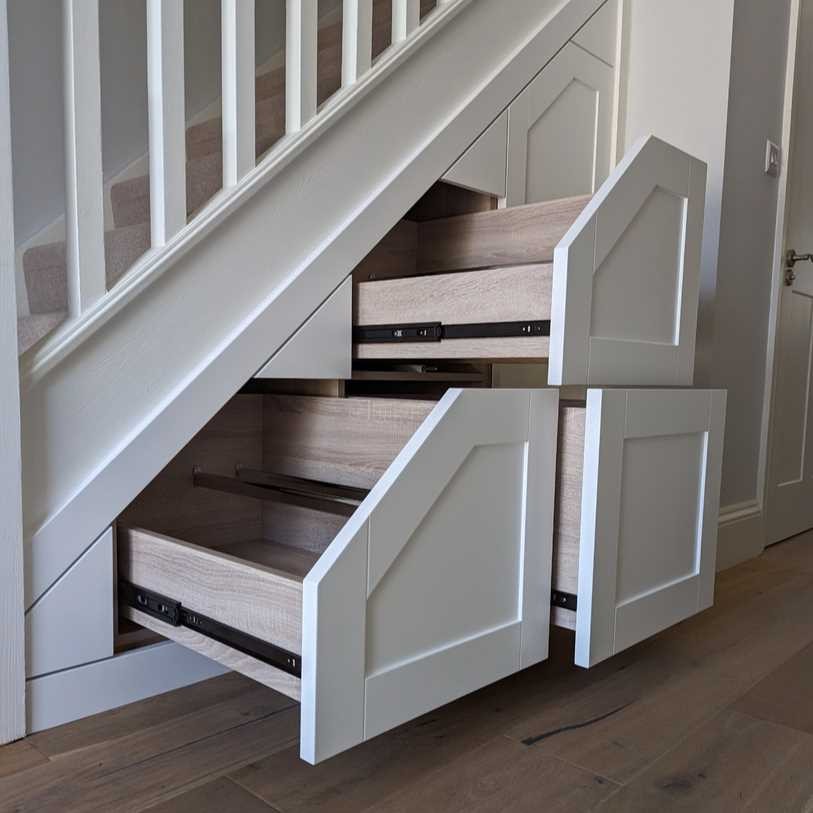

I can only upload one picture at a time it seems. But the attached image is more of what I was thinking as opposed to 1 massive drawer system. Note the little triangle fillers in-
Appreciate the guidance here, how would you achieve this style? We’d like to use Blum movemento undermount runners.
Cheers,
Tom
January 20, 2017
Offline
Hi,
Yes, something like this?
But do you have slides in mind? Because you need slides weighing at least 50 kg for a long service life.
the rest doesn’t really worry me
Cheers, Alex
January 24, 2023
Offline
Hello,

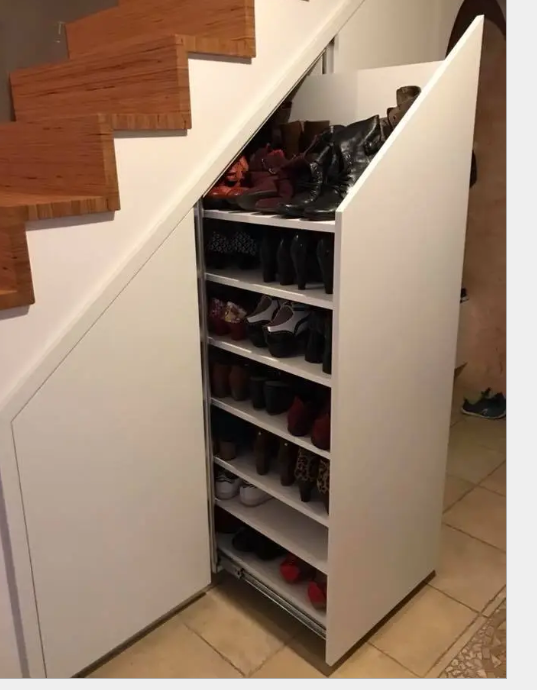

I’m trying to create an understairs drawer system accessible from the side not the top like a conventional drawer system. I can’t upload a reference image but if you google understairs storage, there are many examples of such a design. I have absolutely no idea how to create something like this. I would really appreciate some help.

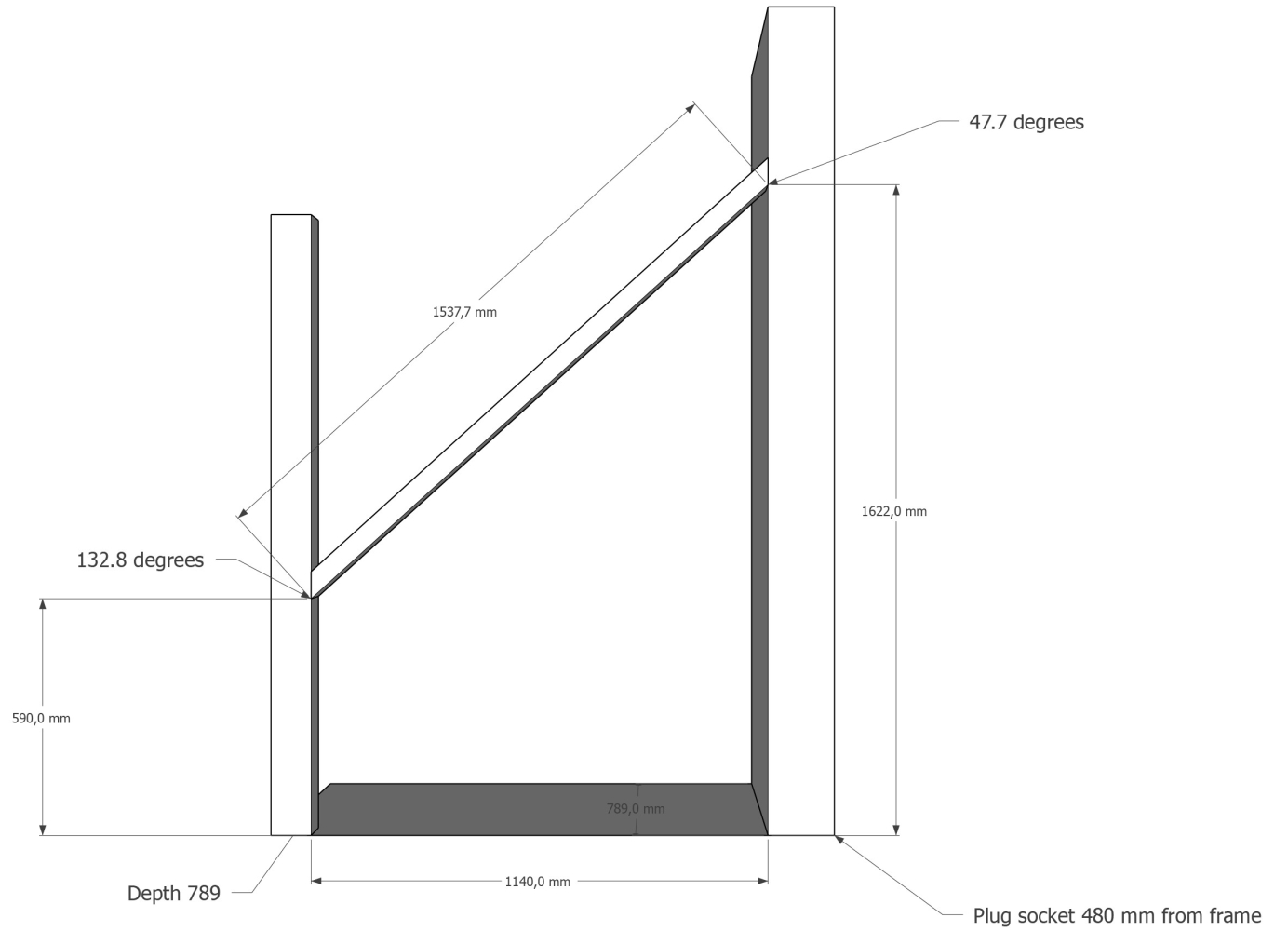

I’ve attached some dimensions to help, but I wouldn’t even know where to start with this project
Cheers,
Tom
