Loft wadrobe - set up video
Avatar
Isaac

Forum Posts: 110
Subscriber Since:
March 25, 2024
sp_UserOfflineSmall Offline
6
August 29, 2024 - 12:20 pm
sp_Permalink sp_Print sp_EditHistory

Connor,

Find attached file.

Additionally, hinge information can be seen through the following link.

https://wooddesigner.org/help-…..-hardware/

Regards,

Isaac

Avatar
Connor

Forum Posts: 60
Subscriber Since:
February 22, 2021
sp_UserOfflineSmall Offline
5
August 29, 2024 - 12:18 pm
sp_Permalink sp_Print

I’m on 7.10 but i will upgrade it soon.

Thanks, appreciate it!
I will then be able to refer back to it for simmilar projects.

Also, i’m not too familiar with the hinge cut-outs, can you show me how to add those please for the doors.
I can cut these out after, but would help to add this beforehand

Avatar
Isaac

Forum Posts: 110
Subscriber Since:
March 25, 2024
sp_UserOfflineSmall Offline
4
August 29, 2024 - 12:13 pm
sp_Permalink sp_Print

Connor,

What version of PolyBoard are you using? It would need to be 7.12d.

I didn’t save the file, I will need to draw that again. I will give it to you soon.

Regards,

Isaac

Avatar
Connor

Forum Posts: 60
Subscriber Since:
February 22, 2021
sp_UserOfflineSmall Offline
3
August 29, 2024 - 11:48 am
sp_Permalink sp_Print

Thanks Isaac. Very Helpful!

Could you send me that file please and i can start tweaking it laugh

Avatar
Isaac

Forum Posts: 110
Subscriber Since:
March 25, 2024
sp_UserOfflineSmall Offline
2
August 29, 2024 - 11:31 am
sp_Permalink sp_Print sp_EditHistory

Hi Connor,

I hope I have answered everything you need. See the attached video and let me know if I can help in any other way.

Regards,

Isaac

Avatar
Connor

Forum Posts: 60
Subscriber Since:
February 22, 2021
sp_UserOfflineSmall Offline
1
August 29, 2024 - 10:17 am
sp_Permalink sp_Print

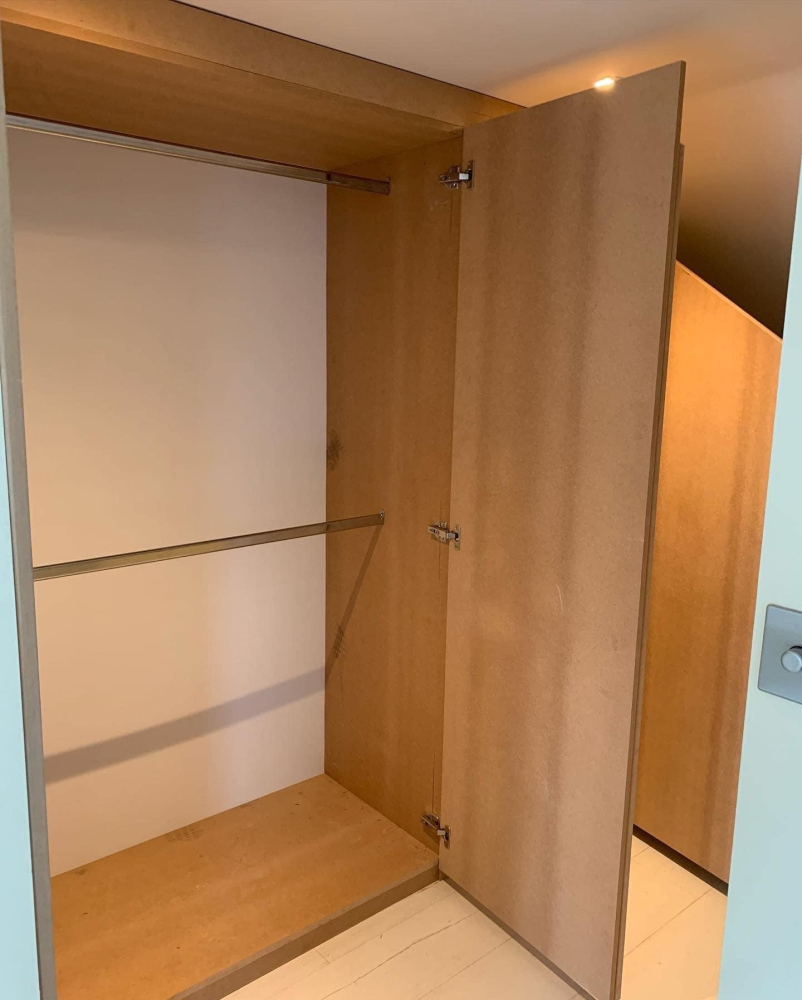

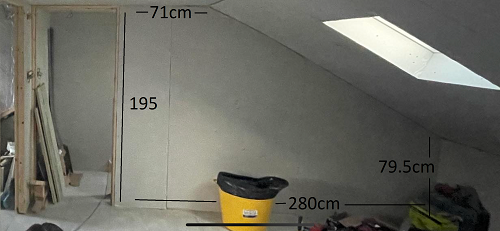

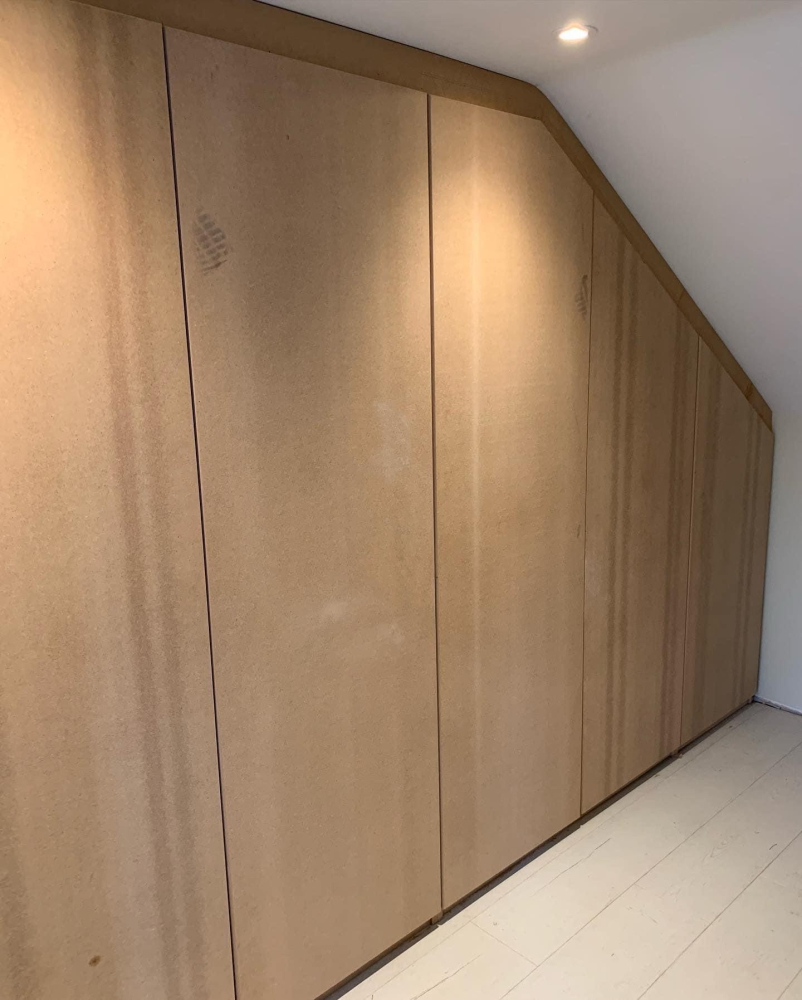

Can you show us how to correctly set up a slanted wadrobe (video) like in the attached images based on our dimensions please?

The doors are infront of the outer frame rather than flush.

Thanks!

IMG_6313.PNGImage Enlarger

IMG_6310.JPGImage Enlarger

IMG_6309.JPGImage Enlarger
