Hi,

From PolyBoard,

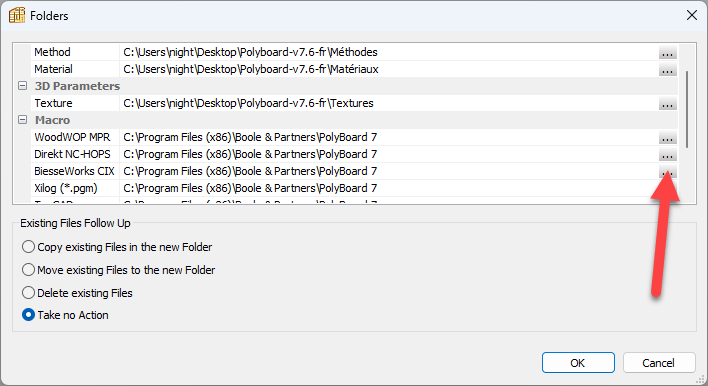

Firstly you Need to setup Bsolid Macro Folder, (Bsolid files location)

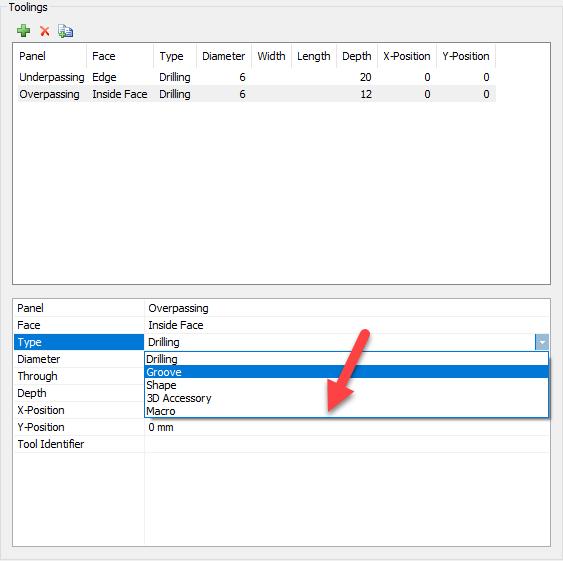

Now from Fittings, start by creating drilling and setup position of drilling,

when your drilling is well configurer, Merge drilling to Macro mode

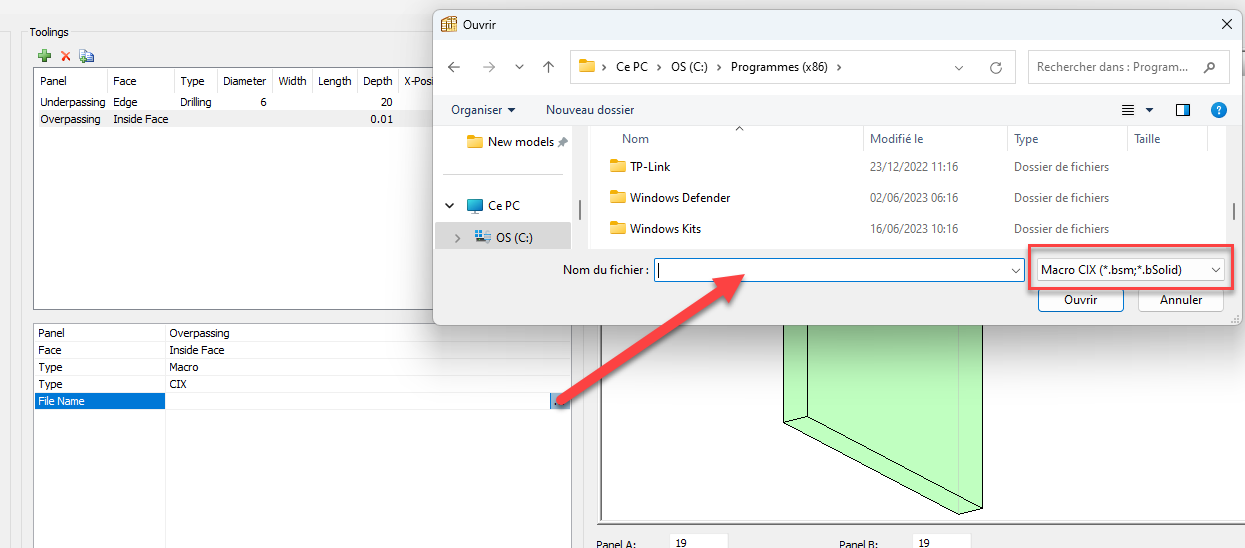

Then you should able to load bms and Bsolid files,

If macro is well recognized, you should be able to setup Variables of the macro.

Cheers, Alex

Hi,

Are you able to do this directly with your machine’s software?

Have you contacted your reseller to find out how it works?

PolyBoard can actually call macros but to help you set it up you need to have the knowledge to make it work, and in this case we probably help you

In the event that this is not a macro but an additional function, this will require documentation of the coding information for this function, which will be submitted to the development team. A quote will then be offered for the addition of this option.

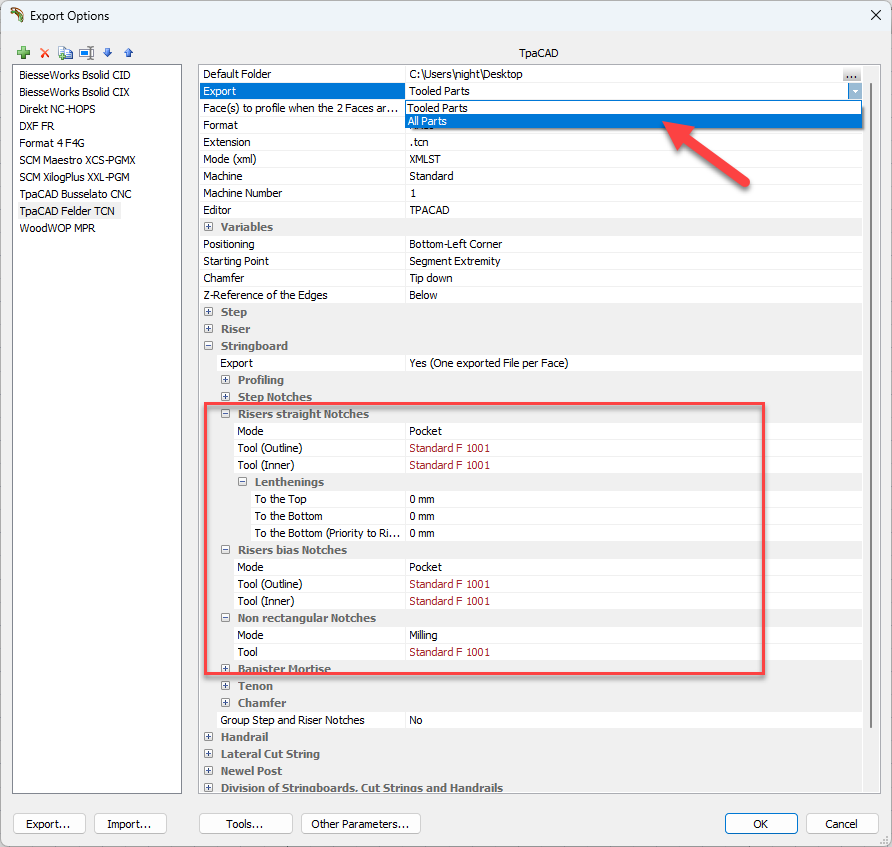

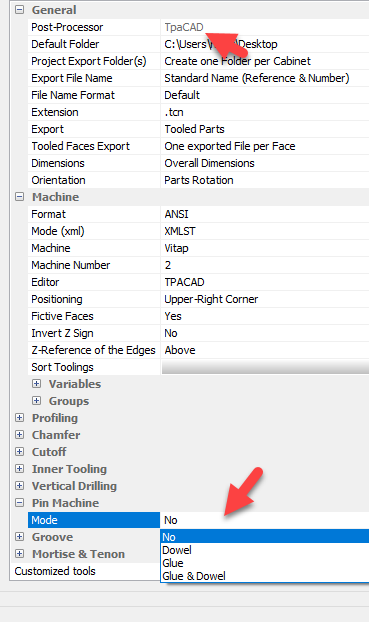

like for some TPA PP

Cheers, Alex
