Groove in wrong place
Avatar
mark nichols

Forum Posts: 160
Subscriber Since:
May 18, 2014
sp_UserOfflineSmall Offline
sp_UserWebsite
7
February 28, 2020 - 11:31 am
sp_Permalink sp_Print

Hi Alex

Turned out to be an erroneous fitting in the library pushing the groove out .

All sorted now

Avatar
Alex

Forum Posts: 1841
Subscriber Since:
January 20, 2017
sp_UserOfflineSmall Offline
6
February 21, 2020 - 7:11 am
sp_Permalink sp_Print sp_EditHistory

Hi,

Can you tell me more?

My tests with your post pro are O.K.

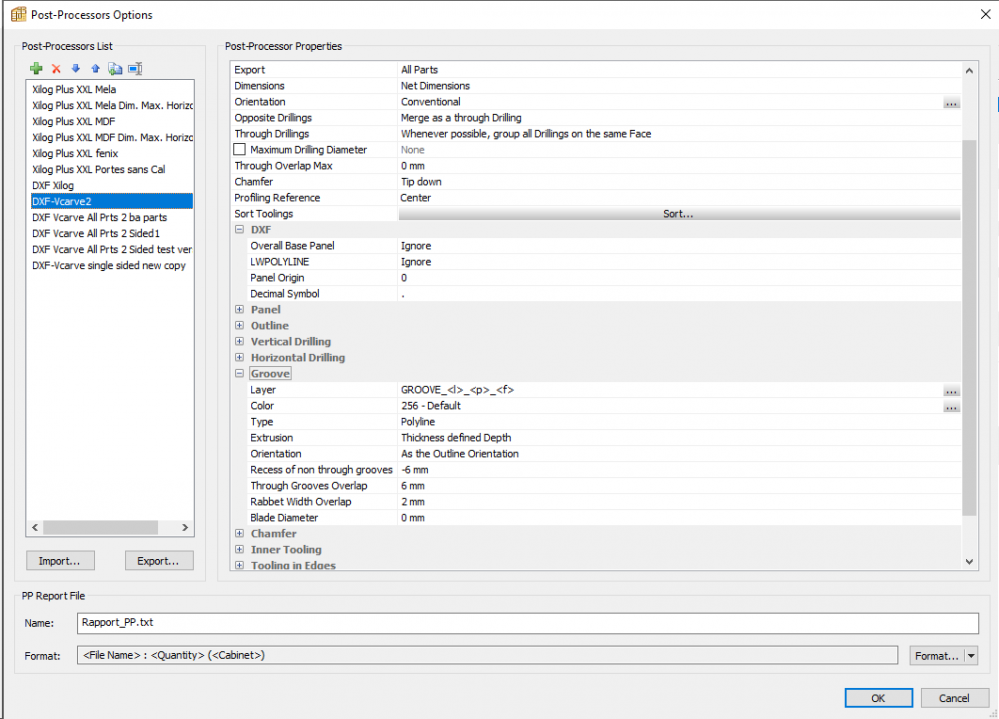

PP.pngImage Enlarger

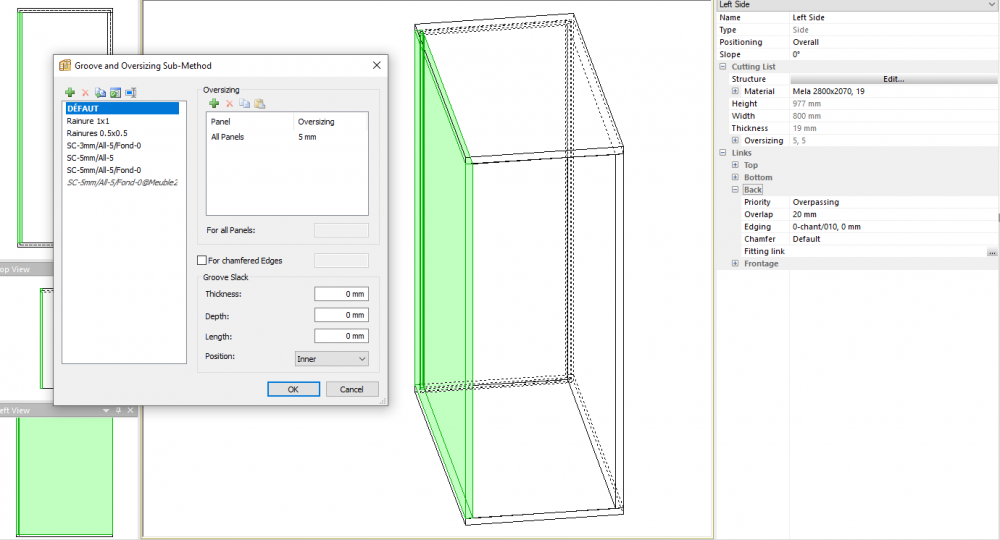

cab.pngImage Enlarger

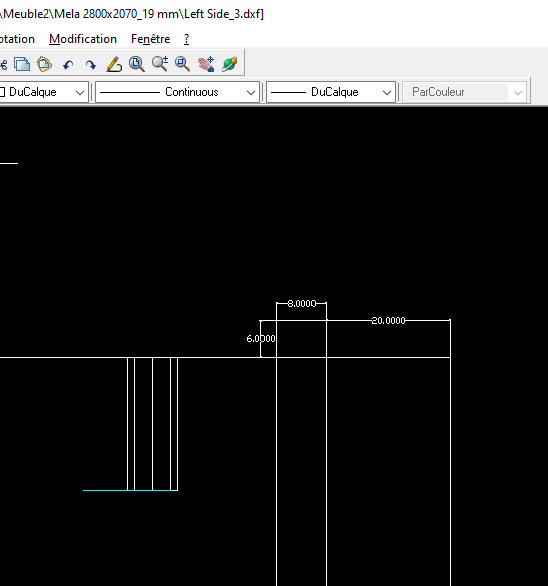

sid.pngImage Enlarger

Cheers, Alex

sp_PlupAttachments Attachments
Avatar
Alex

Forum Posts: 1841
Subscriber Since:
January 20, 2017
sp_UserOfflineSmall Offline
5
February 20, 2020 - 5:20 pm
sp_Permalink sp_Print sp_EditHistory

Zip your files before 😉

And don’t forget the cabinet, thanks

Avatar
mark nichols

Forum Posts: 160
Subscriber Since:
May 18, 2014
sp_UserOfflineSmall Offline
sp_UserWebsite
4
February 20, 2020 - 5:16 pm
sp_Permalink sp_Print
Avatar
mark nichols

Forum Posts: 160
Subscriber Since:
May 18, 2014
sp_UserOfflineSmall Offline
sp_UserWebsite
3
February 20, 2020 - 5:13 pm
sp_Permalink sp_Print

Hi Alex

Find attached post pro

Avatar
Alex

Forum Posts: 1841
Subscriber Since:
January 20, 2017
sp_UserOfflineSmall Offline
2
February 20, 2020 - 4:12 pm
sp_Permalink sp_Print sp_EditHistory

Hi,

Can you send your cabinet and post-pro setup,

(go to post-pro setup and export)

Thanks,  Alexandre

Avatar
mark nichols

Forum Posts: 160
Subscriber Since:
May 18, 2014
sp_UserOfflineSmall Offline
sp_UserWebsite
1
February 20, 2020 - 2:17 pm
sp_Permalink sp_Print

Hi All.

When I have an overpassing bottom or top for that matter. When I export a vcarve DXF the groove for the back panel on the left side panel is not in the correct position.

Any ideas. Obviously something with the post options, but not sure where to look.

Also, any tips on two sided operations. I.e the drawer box sides also have the groove in the wrong place.
