October 4, 2012
Offline
Hi Saku,
Here’s a video on making your legs
This video is now in the Full members area.
So please consider signing up for full membership to help us maintain our services.
All the best,
Ness
Hello, i tried this but not fully successful. May be i am doing this first time, this is the main thing.. But i am satisfied with my work. The legs i am using 70mm long and 40mm thick. Hey friend please show me video so that i can understand more clearly.
October 4, 2012
Offline
Hi Saku,

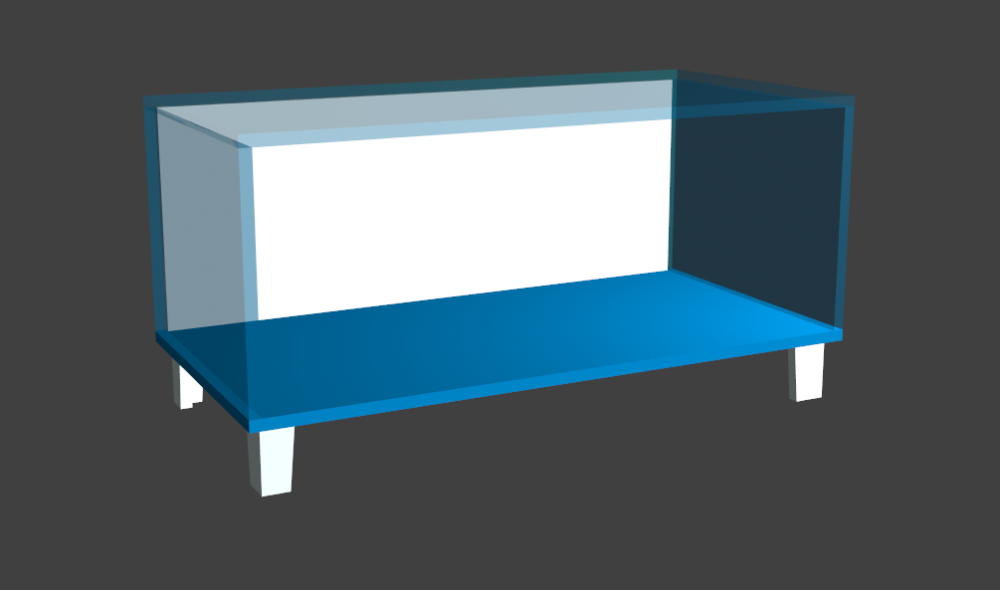

You can’t make a tappered block in Polyboard however you can make the legs by cutting up a plinth.
In this example I have added a plinth all around the base and cut the plinth up with the surface split command.
The holes to hold the feet can be added using the single panel fittings command .
A attach the cabinet so that you can see how it’s done.
Tell me if you need a video to show how to do this.
All the best,
Ness
Hello,

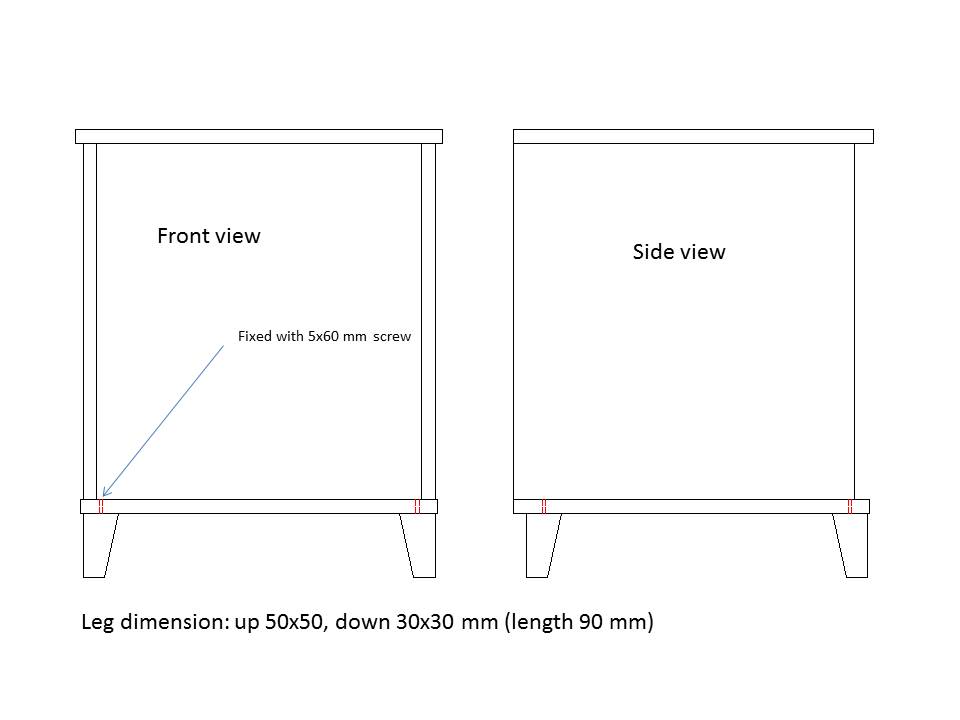

See the attached sketch which will explain. The legs are made out of birch and added separately.
May 18, 2014
Offline
Hi Saku
We use a dummy leg template to visually show legs for under units. which I have attached.
It may not be what you are after, but it may be a starting place for your own.
We take it away when we manufacture as they are a bought in item and not manufactured.
October 4, 2012
Offline
Hello Saku,
Thanks for posting your question.
Are you trying to add legs under a cabinet or are they part of the cabinet’s structure?
If they are added, where are they and how are they fixed?
Can you post a sketch, drawing or photo so that I can understand fully what you are trying to do?
All the best,
Ness
I have tried to find a way of making different styles of legs under the base cabinet, but I havent found the way. Mostly the legs we are using in furniture are about 100 mm long and thickness is 50-60 mm. The problem is to get legs narrowing from two sides about 20 mm. As a result the legs should be 30-40 mm thick when measuring from bottom.
