Opticut measurement increase
Avatar
Alex

Forum Posts: 1841
Subscriber Since:
January 20, 2017
sp_UserOfflineSmall Offline
2
April 1, 2018 - 7:10 am
sp_Permalink sp_Print sp_EditHistory

hello,

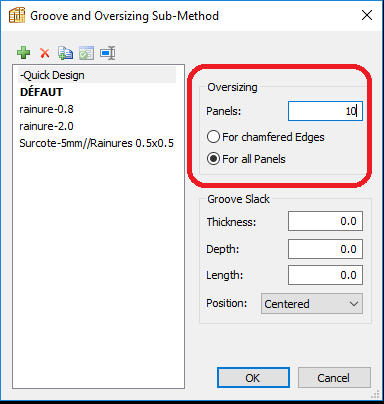

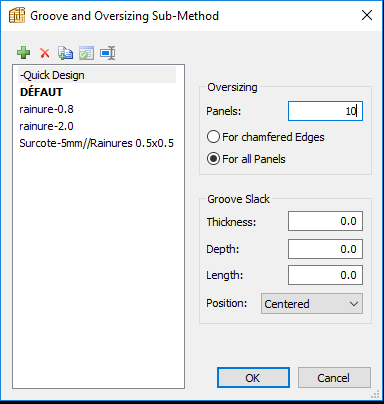

the easy way is to set oversize into Polyboard with “Groove and Over. Sub Methode”

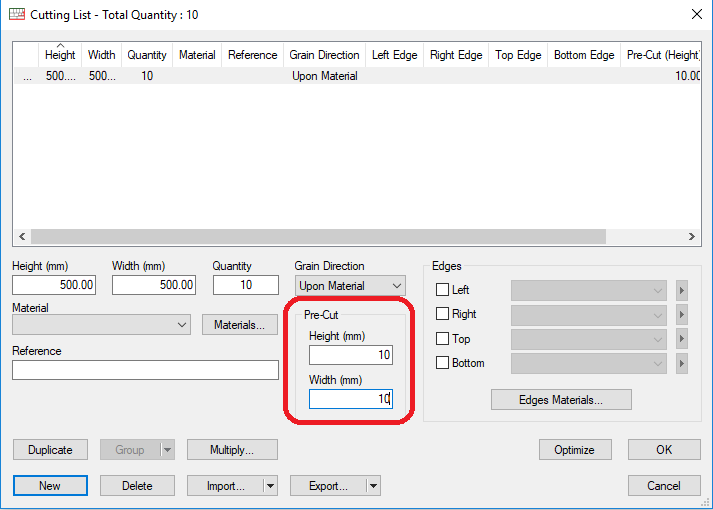

In Opticut you can see the pre-cut lign


All the best, Alex

sp_PlupAttachments Attachments
Avatar
Guest
1
March 31, 2018 - 5:39 pm
sp_Permalink sp_Print

Hello

I am having trouble to set a standard size increase (Height and width) on all cutting list.

My plan is to design the cabinet on Polyboard, then make the exportation to Opticut, but i want to cut all boards with a 1cm increase (Height and width) for the cutting machine, and then the CNC will get all the boards with 1cm (Height and width) increase so that the CNC can make a contour a produce the board with precise mesurements.

I could not found the option on Polyboard nor on Opticut.

Nevertheless i have tried to export from Polyboard to Excel, produce a formula to make the 1cm increase, but i can’t save the Excel file, i a way that the Opticut can import the cutting list with that 1cm increase.

Can someone help me out?

thanks
