DXF files from optinest to Aspire is offset.

Heimwood APS

Forum Posts: 39

Subscriber Since:
May 2, 2023

Offline

April 19, 2024 - 11:28 am

Thank you Alex.

I solved it in Optinest with your prompt.

/Oscar

Alex

Forum Posts: 1841

Subscriber Since:
January 20, 2017

Offline

April 16, 2024 - 11:00 am

Hi,

This trouble is because you have edge drilling (for clamex I thinks), not compatible with Vcarve/Aspire

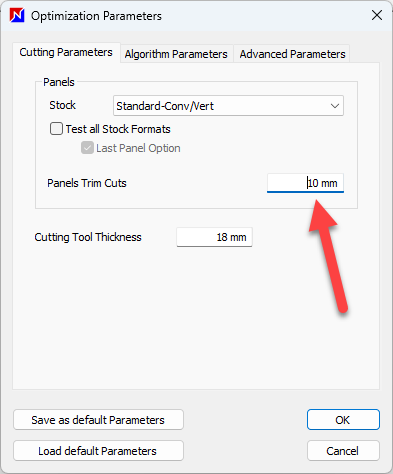

Please look video first, and find text you can past after in your setting

/EDGE.*;/PANEL*

Hope that’s helpfull, Alex

Attachments


1-2-1 Support & Training | Help Centre | How to use the Forum

Heimwood APS

Forum Posts: 39

Subscriber Since:
May 2, 2023

Offline

April 16, 2024 - 8:45 am

Hi there.

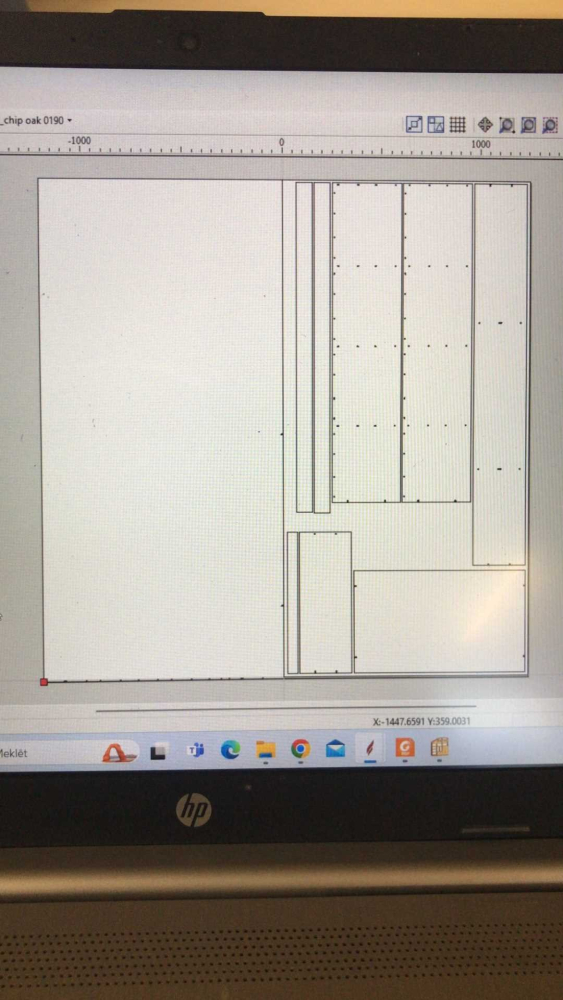

The workshop just contacted me, and explained that when he loads in my dxf files in aspire, it looks like the sheet material is double width and the whole tooling area is offset by the same amount. Don’t know if either of us really understand the issue or how to explain it, but do you have any ideas about what’s going on?

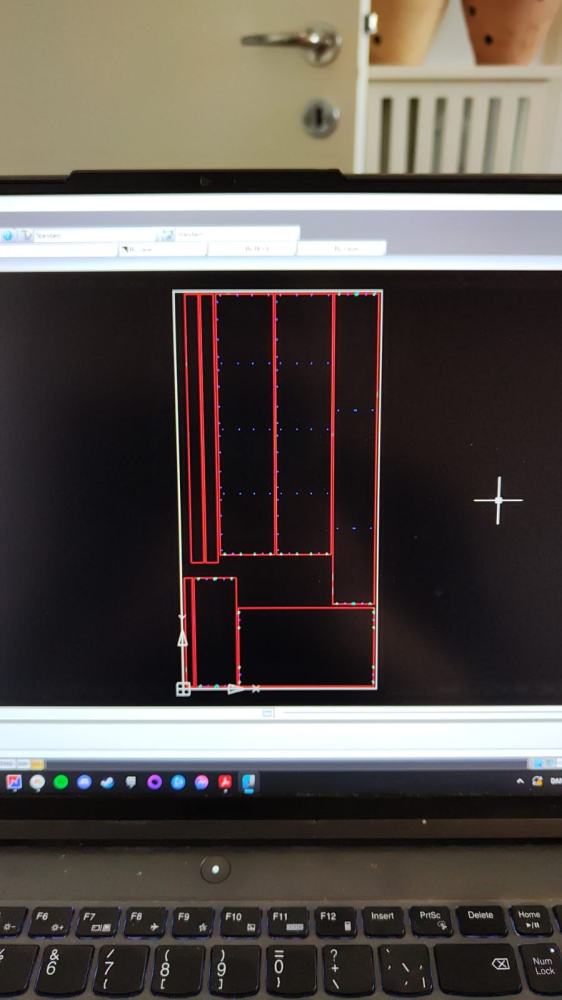

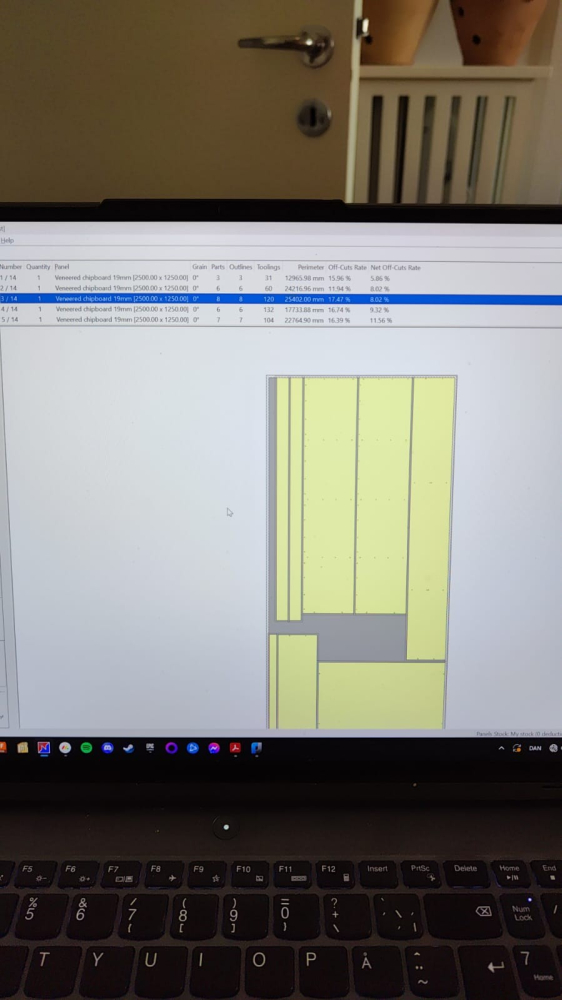

I added a screenshot from him that shows what he sees, and also som from what I see.

/Oscar
