Ness said

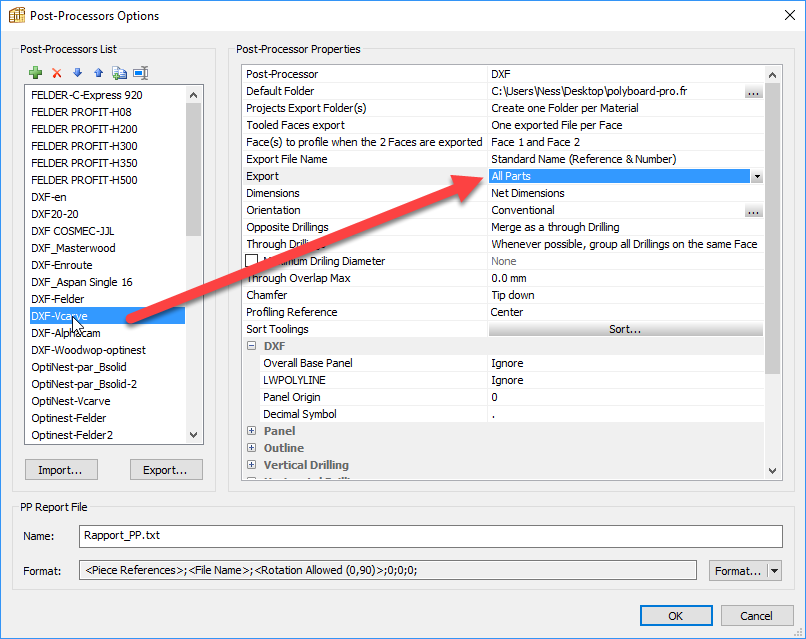

Hi Ian,If some DXF files are missing it might be that your Polyboard post processor is set to output only the machined panels. This is used when running the CNC machine files on one at a time on a pod and rail machine.
To output all the panels, even when they don’t have drilling and are only cut on the CNC
All the best,
Ness
Thanks ness , I have checked this and it says export all parts….??
October 4, 2012
Offline
Hi Ian,
If some DXF files are missing it might be that your Polyboard post processor is set to output only the machined panels. This is used when running the CNC machine files on one at a time on a pod and rail machine.
To output all the panels, even when they don’t have drilling and are only cut on the CNC
All the best,
Ness
November 8, 2013
Offline
Hi Ian, thanks for posting your query. We’ll get back to you as soon as possible, just to let you know as well that I’ve moved your question from the ‘general enquiries’ section to the ‘cnc and other software’ forum. Thanks
Hi , Iv recently drew up a kitchen on poly board and transferred it to vcarve for nesting …. when all pieces were cut out and started assembling… we noticed we were short…. I checked my cutting list on poly board and there should be roughly around 185 or so pieces but the nesting only produced 109 , can you help me with this problem and also is there anyway to get back the pieces that are missing as I can’t nest the whole kitchen again…thanks Ian
