Orientation of the part when exporting to CNC
Avatar
Alex

Forum Posts: 1841
Subscriber Since:
January 20, 2017
sp_UserOfflineSmall Offline
2
June 15, 2023 - 11:38 am
sp_Permalink sp_Print sp_EditHistory

Hi,

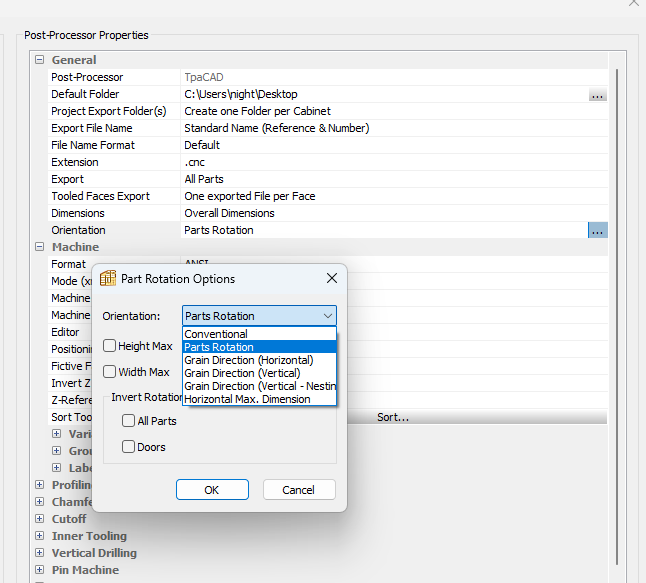

Yes , you can force parts direction from PP

parts.pngImage Enlarger

Out of error you should select “conventional” because according to the PP copy, this was configured as “part rotation”.

All are describe in post below

https://wooddesigner.org/forum…..direction/



All the best, Alexandre

sp_PlupAttachments Attachments
Avatar
Blaž Jašovec

Forum Posts: 14
Subscriber Since:
December 20, 2022
sp_UserOfflineSmall Offline
1
June 15, 2023 - 8:33 am
sp_Permalink sp_Print

Hello

I have to make a grove with the saw on my panel i only have the saw in x-direction. When i export it to cnc the part is orientated so that the grove is in Y-direction so i cant make it. Is there any way to change the orientation of the part?
